Sand Filter
Sand Filter

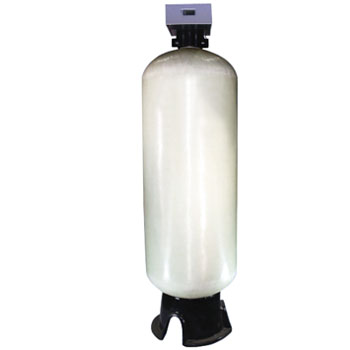

Deep Sand Filter-FRP
The main function is filtering of small impurities. It has excellent effect for the liquid with less solid impurities, but it’s easy to clog when the liquid contains lots of solid or fiber. Therefore, the high pressure sand filter is necessary for the initial filtering, which will keep the normal operation. (Generally, the average filtration precision can achieve 10 Micron)
Specification
| Model | TR-048F | TR-064F | TR-080F | TR-100F | TR-125F | TR-200F | TR-300F | TR-400F | TR-500F | TR-800F | TR-1000F | TR-1200F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Caliber (Inch) |
1″
|
1″
|
1″
|
1″
|
1″
|
1½"
|
1½"
|
1½"
|
2"
|
2"
|
3"
|
3"
|
| Filter capacity (L) |
48
|
64
|
80
|
100
|
125
|
200
|
300
|
400
|
500
|
800
|
1000
|
1200
|
| Barrel diameter (cm) |
25
|
30
|
33
|
36
|
40
|
50
|
60
|
60
|
76
|
92
|
106
|
122
|
| Barrel height (cm) |
137
|
132
|
137
|
165
|
165
|
157
|
180
|
180
|
182
|
182
|
182
|
182
|
| Ref .flow (L/Hr) |
1920
|
2560
|
3200
|
4000
|
5000
|
8000
|
12000
|
16000
|
20000
|
32000
|
40000
|
48000
|
