Products

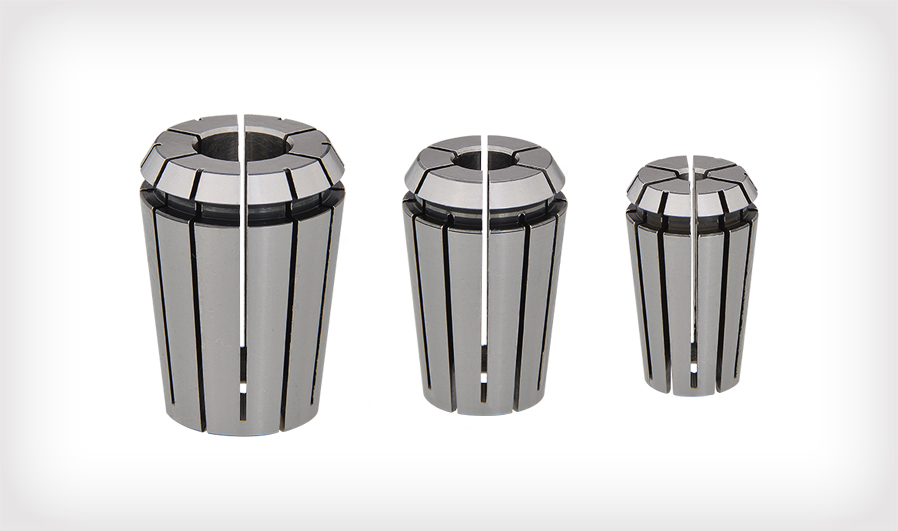

NBC collet
NBC collet
NBC8, NBC10, NBC13, NBC16, NBC20

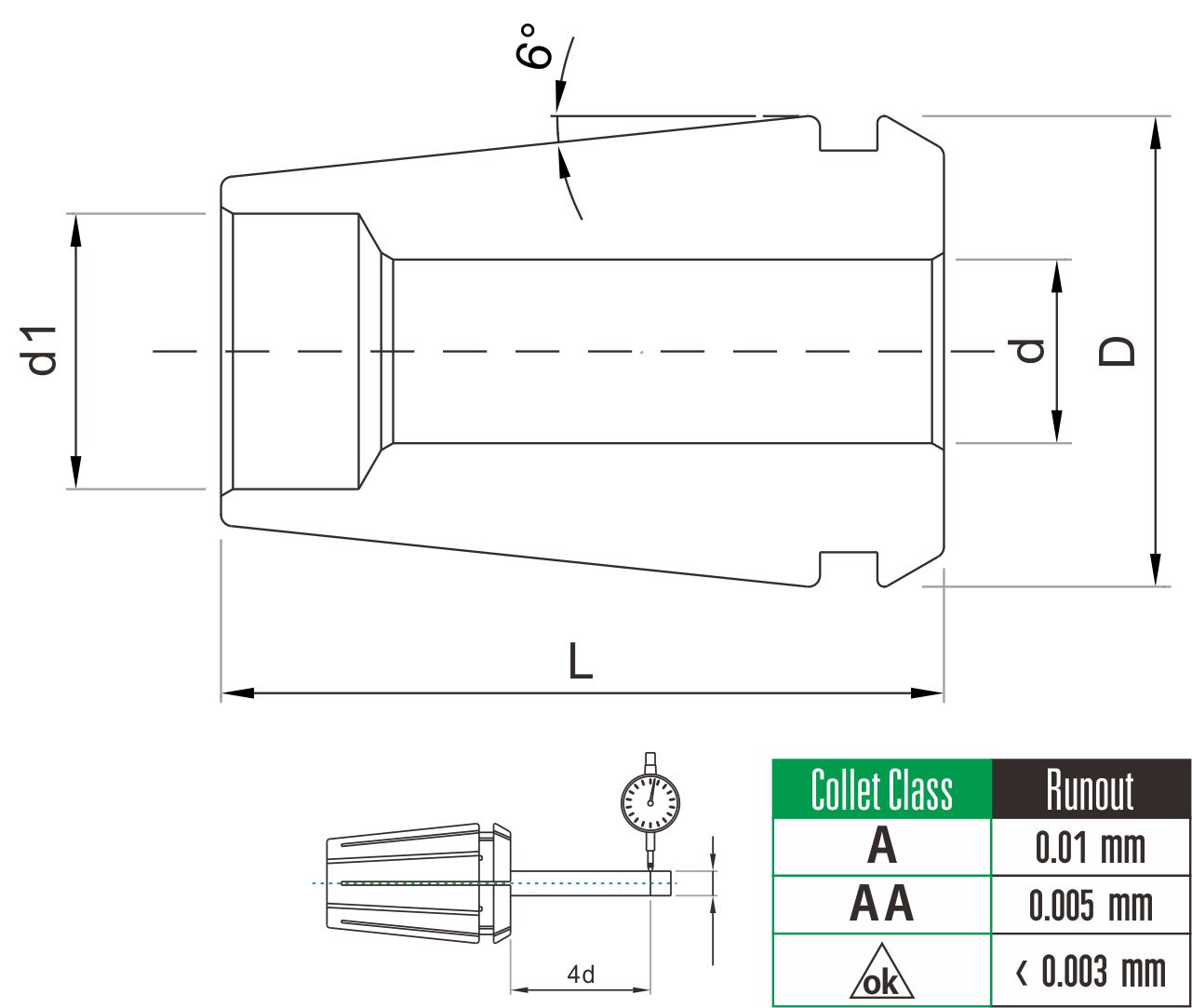

Specification

Model No. D d d1 L
NBC8 4.0 12.5 4.0 7.7 18.2
6.0 12.5 6.0 7.7 18.2
8.0 12.5 8.0 8.0 18.2
NBC10 4.0 16.5 4.0 9.5 27.4
6.0 16.5 6.0 9.5 27.4
8.0 16.5 8.0 9.5 27.4
10.0 16.5 10.0 10.0 27.4
NBC13 4.0 20.5 4.0 12.0 31.5
6.0 20.5 6.0 12.0 31.5
8.0 20.5 8.0 12.0 31.5
10.0 20.5 10.0 12.0 31.5
12.0 20.5 12.0 12.0 31.5
NBC16 4.0 25.5 4.0 15.0 35.5
6.0 25.5 6.0 15.0 35.5
8.0 25.5 8.0 15.0 35.5
10.0 25.5 10.0 15.0 35.5
12.0 25.5 12.0 15.0 35.5
16.0 25.5 16.0 16.0 35.5
NBC20 4.0 28.4 4.0 18.2 38.0
6.0 28.4 6.0 18.2 38.0
8.0 28.4 8.0 18.2 38.0
10.0 28.4 10.0 18.2 38.0
12.0 28.4 12.0 18.2 38.0
16.0 28.4 16.0 18.2 38.0
20.0 28.4 20.0 20.2 38.0
