Application: milling machine, cnc milling, high speed milling machine, rotary table.
EXTRA RIGID MACHINE STRUCTURE
Oversized Column
Increased width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.
Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
Extra wide slide ways and distance between slide ways and distance between at low speed travel while ensuring high stability.
The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.
Direct Drive Spindle
Spindle Speeds 10,000RPM, 12,000RPM 15,000 RPM

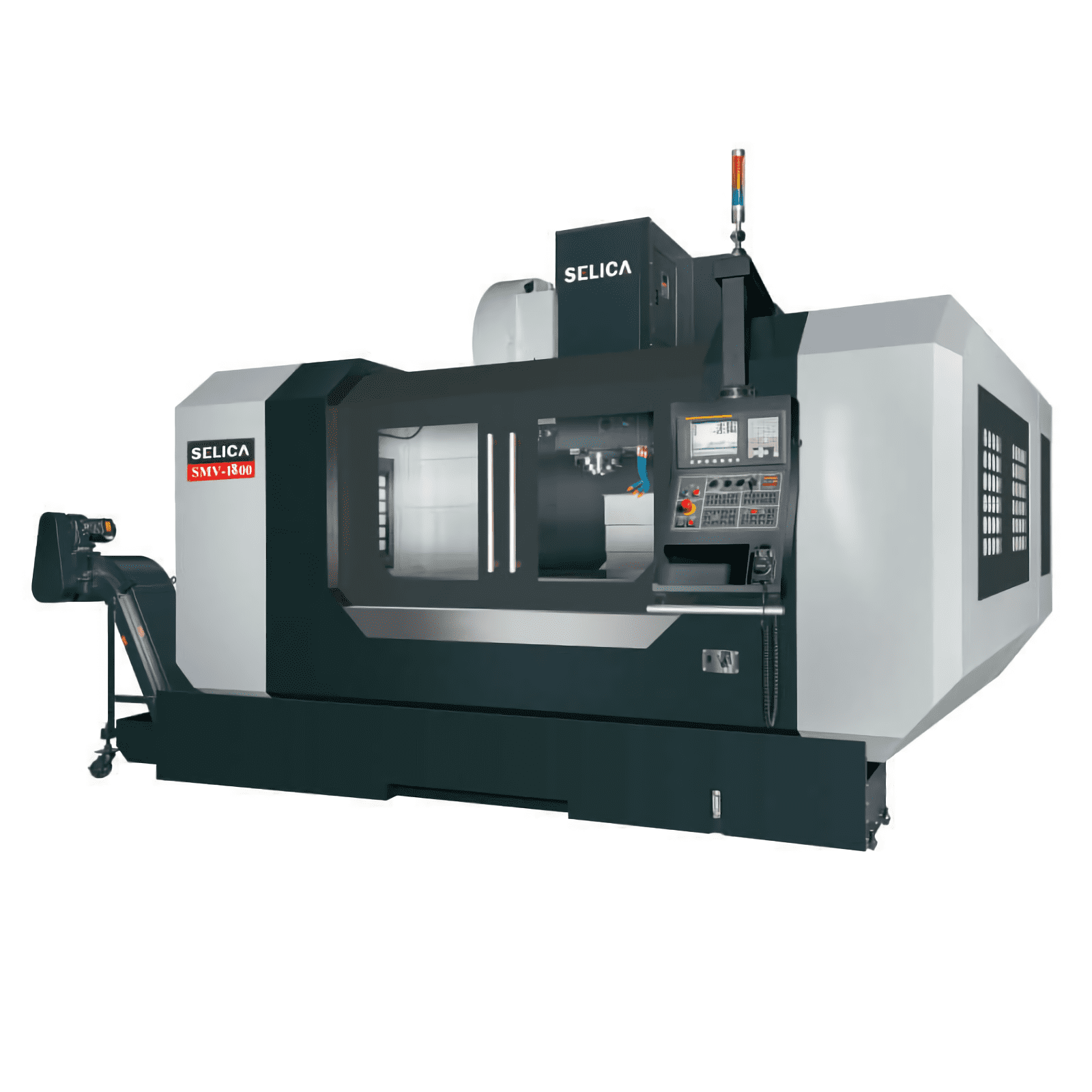

| Contents | Model | Unit | SMV - 1800 | |
| Travel | 3-Axes travel | Box way series | ||
| X axis Travel | mm | 1800 | ||
| Y axis Travel | mm | 850 | ||
| Z axis Travel | mm | 750 | ||
| Spindle nose to table surface | mm | 150-900 | ||
| Spindle center to column surface | mm | 950 | ||
| Table | Table area | mm | 2000 x 850 | |
| Max. load | kgs | 2500 | ||
| T- slot | mm | 5 x 18 x 150 | ||
| Spindle | Spindle taper | type | BT50 | |
| Spindle speed | rpm | 6000 | ||
| Spindle drive | type | Belt | Gear head (opt.) | |
| Spindle motor | kw | 15/18.5 | ||
| Spindle cooling | type | Oil cooler | ||
| Feed Rate | Rapid traverse X | m/min | 18 | |
| Rapid traverse Y | m/min | 18 | ||
| Rapid traverse Z | m/mm | 15 | ||
| Cutting feed rate | mm/min | 1-10000 | ||
| Ballscrew dia./pitch | mm | Ø50/10 | ||
| X / Y/ Z Axis servo motor (FANUC) | kw | 7/7/7 | ||
| A.T.C. | Magazine type | type | Arm | Chain (opt.) |
| Tool magazine capacity | pcs | 24 | 32 | |
| Max. tool diameter | mm | 110/200 | 125/250 | |
| Max. tool length | mm | 300 | 300 | |
| Max. tool weight | kgs | 15 | 15 | |
| Tool selection | type | Random | ||
| Others | Power consumption | KVA | 40 | |
| Machine size (LxWxH) | mm | 4920x3510x3350 | ||
| Machine weight | kgs | 16000 | ||
*Specifications are subject to change without prior notice.
Standard Accessories
| ● Full splash guard |
| ● Belt type spindle speed 6000rpm, BT50 |
| ● Spindle motor 15/18.5kw |
| ● ARM type ATC 24 tools, BT50 |
| ● Rigid tapping |
| ● Cooling system |
| ● Auto lubrication system |
| ● Spindle oil cooler unit |
| ● Heat exchanger |
| ● Work lamp |
| ● Three-color call light |
| ● Tool box |
| ● Coolant gun |
| ● Screw type chip conveyor |
Optional Accessories
| ● Transformer |
| ● CE Mark |
| ● Arm type ATC 30 tools,BT40 or BT50 |
| ● Belt type spindle speed 6000/8000 rpm, BT50 |
| ● Spindle motoe 15/18.5kw |
| ● Arm type ATC 24 tools, BT50 |
| ● Rigid tapping |
| ● Cooling system |
| ● Auto lubrication system |
| ● Spindle oil cooler unit |
| ● Heat exchanger |
