APC with Worktable
Auto-Pallet Changer and Indexing Table "Package"
HC-HP 系列
CT-500HP
NCT-630HP
NCT-800HP
A heavy duty 180° hydraulic rack & pinion driven indexing pallet changer, fitted with dual pallet carrier stations and aligned to an NC Indexing Table. Work tables is rotated by a dual worm gear driven via a servo motor and fitted with auxiliary shot pins for pallet registration and stability. Heavy duty table clamping ensures rigidity and the accommodation of high machining loads.
Self-Contained Exchanger, Indexing Table and
Pallets "matched" for easy installation.

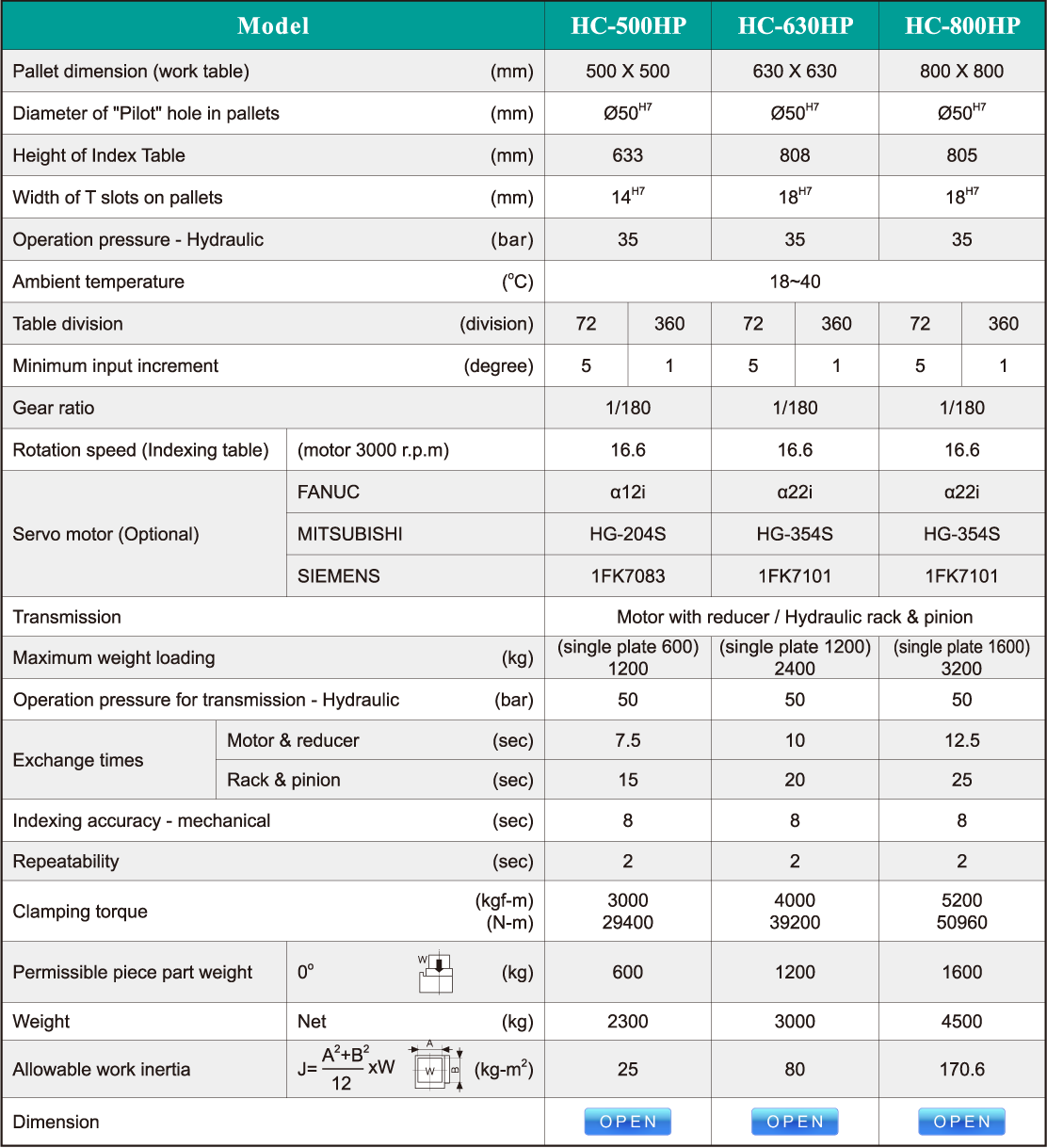

Specification
