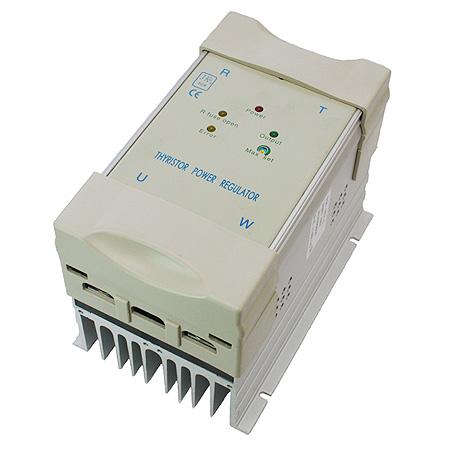

1. This controller protector:
* The input main power loses the one phase.
* The fuse break and checks the notice.
* This controller heat sink exceeds temperature to protect.
* Unusually output the contact, offer the distant place to monitor and use, the capacity 240VAC/5A of contact. 5.Fuse over temperature warning.
2. This controller is tally with CE international quality standard confirmation.
3. It has R.S.T. one phase’s fuse wire broken LED light, and offer a output point for abnormal condition, also can be emergency control for the system.
4. Cooling fans has temperature control, the cooling sheet working at 55C, and stop at 45C, this design can extend use-life of fans 2-3 times.
5. Applied load: IR lamp, quartz lamp, MoSi2, heater. Use of shoe-making machinery, plastic blow molding machines, plastic extrusion machinery, high vacuum thermo-evaporator machine, vacuum film-sputtering machine, vacuum sputtering PVD thin film deposition machine, heat treatment furnace, electric furnace, electric boiler, enameled wire machine, drawn work machinery, textile machinery, constant temperature and humidity systems.
6. Compact size, ease of wiring, the use of more convenient.
Safety/Quality Approvals

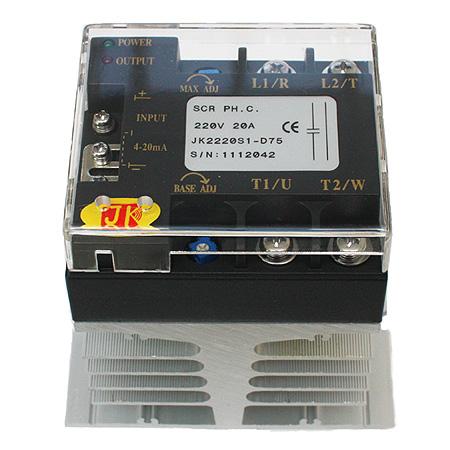

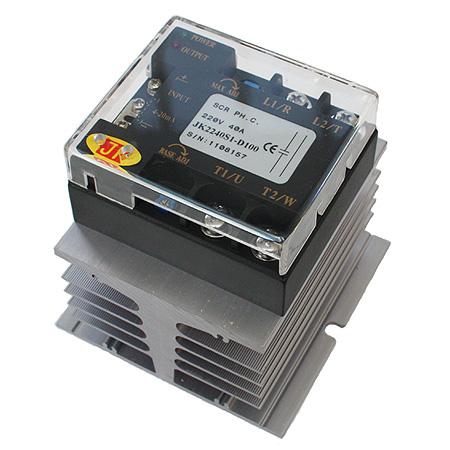

General series JK1120S1-D75, JK1130S1-D75, JK1140S1-D100, JK1150S1, JK1160S1JK2220S1-D75, JK2230S1-D75, JK2240S1-D100, JK2250S1, JK2260S1JK3820S1-D75, JK3830S1-D75, JK3840S1-D100, JK3850S1, JK3860S1 Protection Series JK22020SF, JK22030SF, JK22040SF, JK22050SF, JK22060SF, JK22080SF, JK22100SF, JK22125SF, JK22160SF,
- Main power: AC 220V 380~480V ±10%
- Auxiliary voltage: AC 220V±15% 50/60Hz
- Rated current: 20A 30A 40A 50A 60A 80A 100A 125A 160A 180A 200A 300A 400A 500A
- Work frequency: 47~63Hz
- Output type: Phase angle.
- Phase angle input control signal: 4-20mA, 1-5V, 8 sec. Soft Start.
- Output range: 0~100%
- Environment: -10°C~50°C Humidity Under 90% RH.
- Insulation resistance: Over 20 MΩ (power & external cover) Over 20 MΩ (input signal & external cover).
- Strength of press-resisted: 2500VAC/1min between power & external cover 1000VAC/1min between power & external cover.
