Pneumatic vice
MC Super Hi-Pressure Double Vice

√ Super hi-gripping force -

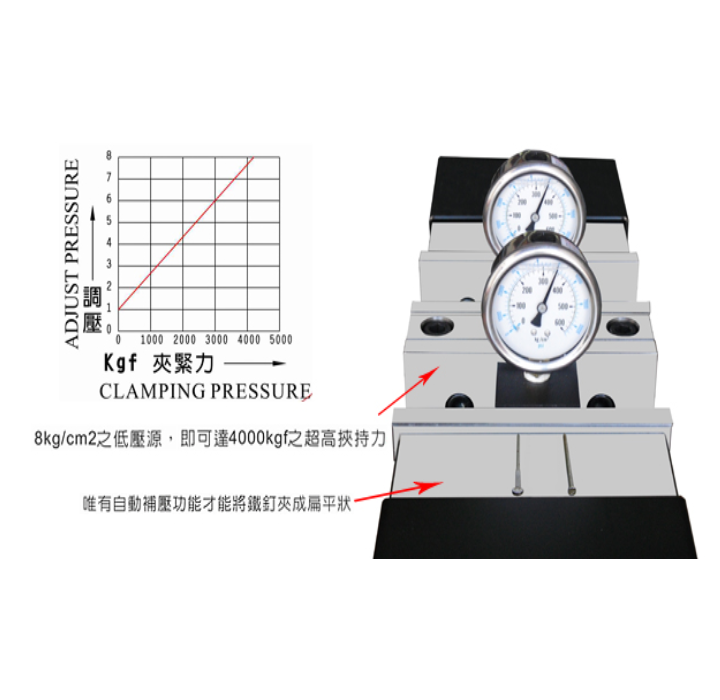

Only need 8kg/cm2 of low air-pressure source to achieve 4000kgf of super hi-gripping force, and this gripping force can be adjusted within 0-4000kgf by using a pressure regulator.

√ Search the highest compressed air source automatically -
When processing copper, aluminum or heavy machining cast iron workpiece or raw cast iron, the pressure regulator can be set at a desired pressure without losing pressure. Besides, the gripping force can be kept to clamp the workpiece securely in auto compensating and pressure stabilizing functions.

√ The biggest safety clamping range -
The shifting speed is only 1.5 sec. the double vise mechanism can be adjusted automatically and can simultaneously clamp two different workpieces in less than 5mm of size.

√ Super rigid material -
The body of the vice is integrally made of hi-tensile graphite casting iron (FCD-60) and is harden by heat-treatment (HRC 45) at its two slide way, thereby ensuring hi-precision, hi-durability & hi-tensile.

√ Submersed angle fixed pressed down structure -
Submersed angle pressed structure in a semi-sphere shape to produce an angle lock power, thus preventing the cutting plate from movement.

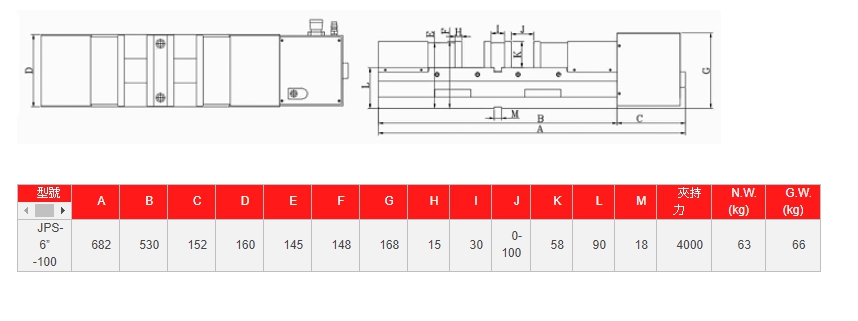

Specification
