Vertical Machining Center
LINE WAY SERIES - MNV-850〔850*610*610〕
MNV-850

PRODUCT DESCRIPTION

1.High rigidity, high precision, high recurrence!
2.Low friction, enabling to maintain long time precision!
3.Sustaining heavy loading and high speed!
4.Belt-type and/or direct drive spindles are optional!
5. Linear adopts a roller type guideway!

Specification

PRODUCT SPECIFICATION

Spindle taper #40
Spindle's Body Outer Dia Ø150mm
Speed Belt:8000rpm(std)
Belt:10000rpm(opt)
Direct:12000~15000rpm(opt)
Travel (X) 850mm
(Y) 610mm
(Z) 610mm
Rapid Feed(X/Y/Z) 24/24/20(M/min)
Table Size 880*520(mm)
Table Loading 600kg
Tool Type Arm type(24T)
Max. Tool Weight 7kg
Machine Dimension
(W*D*H)
3240*2900*2585(mm)
Mcahine Weight 6000kg

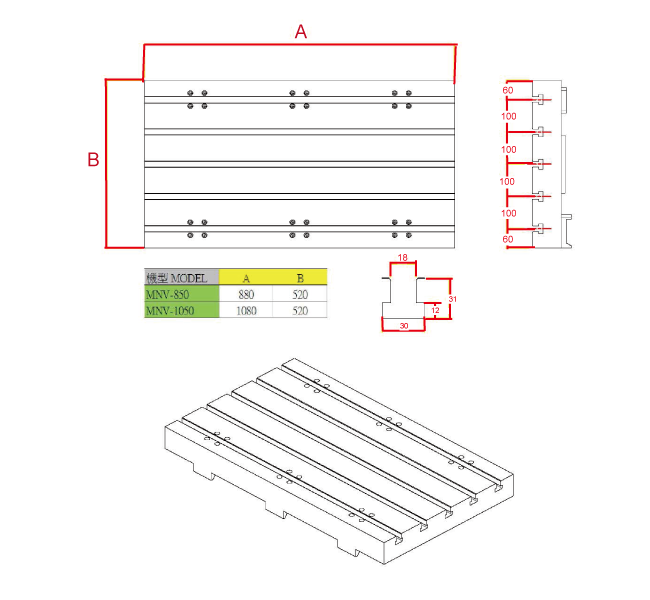

WORK TABLE SIZES


OPTIONAL

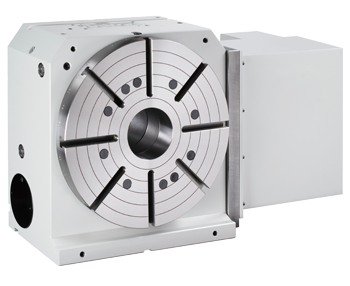

CNC Rotary Table Support
Rotary

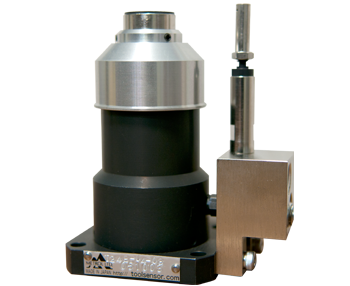

Tailstock

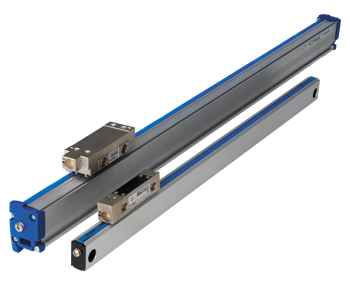

SLine encoder

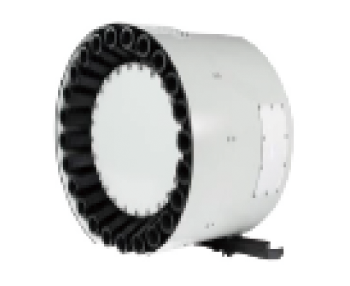

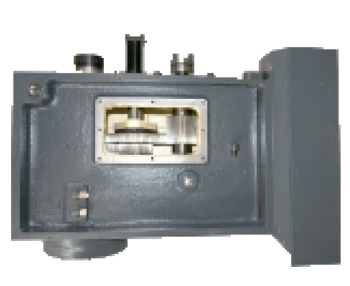

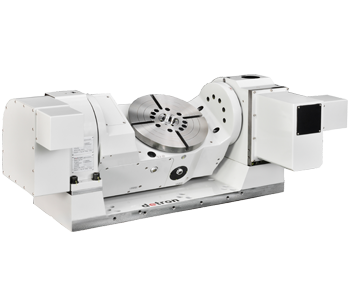

CNC DDM Tilting Rotary Table ARM Type Gear Head

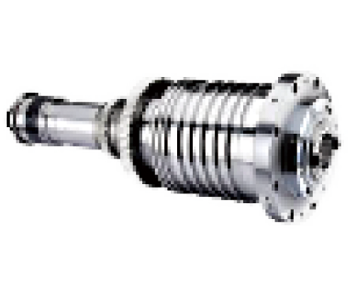

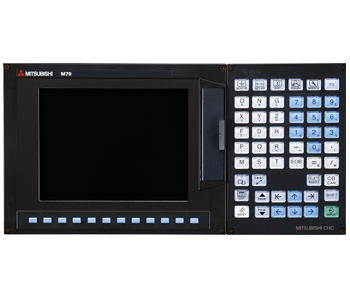

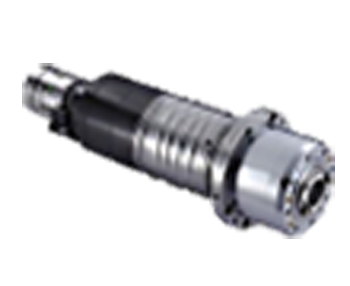

Direct drive spindle Gear drive spindle MITSUBISHI

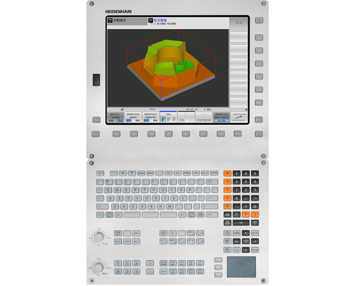

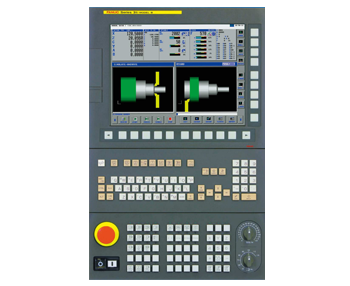

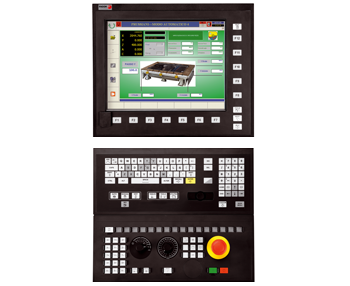

FAGOR HEIDENHAIN FANUC

Mold
Machine
Vehicle
