Specification
|
項目 |
機械規格 (SPEC.) |
項目 |
機械規格 (SPEC.) |
|
機械型號 (Model no.) |

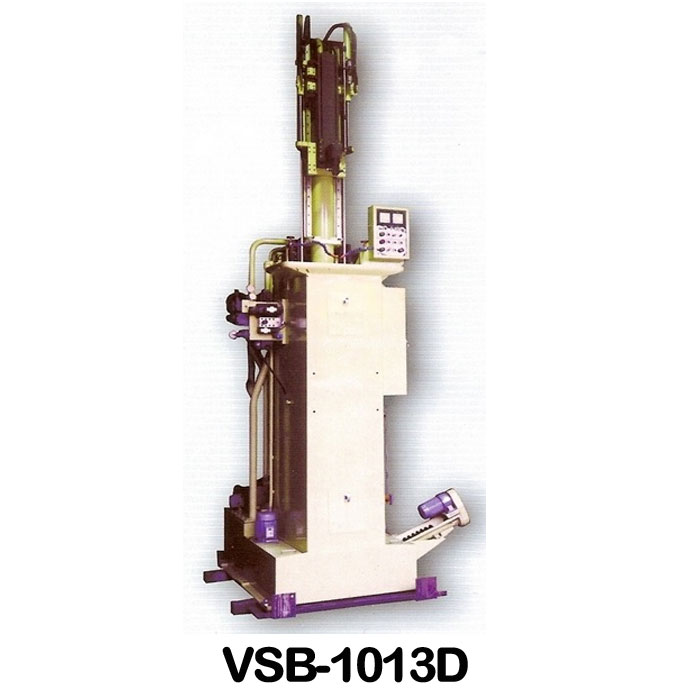

VSB-1013D |
提刀行程(mm)外加 |
450 |
|
(Lifting stroke) (add) |
|||
|
最大拉力(kg) |
10000 |
主泵浦用馬達(HP) |
20 |
|
(Max. Broach power) |
(Main pump motor)(HP) |
||
|
有效行程(mm) |
1300 |
切削水用馬達(HP) |
1/2 |
|
(usable stroke) |
(Cooling pump motor)(HP) |
||
|
垂直度(mm) |
0.02/300 |
作業台高度(mm) |
2600 |
|
(Perpendicularity) |
|
(Height of operation table) |
|
|
工作半徑(mm) |
180 |
機台全高度(mm) |
4100 |
|
(working radius) |
|
(Height overall) |
|
|
拉削速度(M/min) |
2~6 |
基座面積 長x寬(mm) |
1460x1150 |
|
(Broaching speed) |
|
(Area of base) |
|
|
退刀速度(M/min) |
2~14 |
機台重量(kg) |
3800 |
|
(back speed) |
|
(Weight of broach) |
