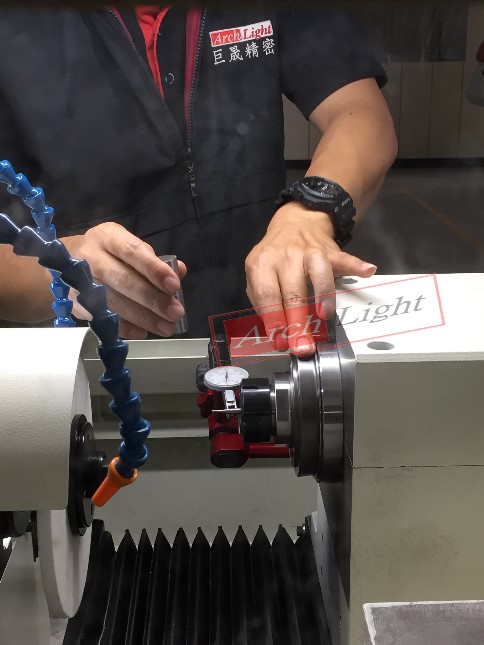

Description:
1. Can be designed in accordance with customer specifications and manufacturing
2. The correct specifications to the main quote
3. The interpretation of this information is owned by Arch Light Precision Co.,LTD Technology Company
4. Specifications and dimensions are subject to change without prior notice
|
|
Spindle maximum diameter |
mm |
180 |
|
Action trip |
The maximum outer diameter of the workpiece |
mm |
80 |
|
The largest processing of outer diameter |
mm |
Ø100 |
|
|
Machining the hole within the processing range |
mm |
Ø2~Ø80 |
|
|
Machining depth |
mm |
50 |
|
|
Z axis around the maximum moving speed; minimum displacement unit |
M/min |
12 ; 0.0001 |
|
|
X-axis before and after the maximum moving speed; minimum displacement unit |
M/min |
12 ; 0.0001 |
|
|
Grinding wheel spindle |
Grinding wheel spindle speed in Japan |
RPM |
40000~60000 |
|
Hole Grinding Wheel Spindle Horsepower |
KW |
0.35 |
|
|
Outer diameter grinding wheel spindle speed |
RPM |
2500~3400 |
|
|
Outside diameter grinding wheel spindle horsepower |
HP |
2HP2P |
|
|
Outside diameter Grinding wheel Max. Diameter * Thickness * Inner bore |
mm |
Ø 180*13*Ø31.75 |
|
|
Workpiece spindle |
Workpiece spindle speed |
RPM |
5~1720 |
|
Workpiece spindle horsepower |
HP |
2HP 4P |
|
|
Workpiece spindle type ER chuck and lathe chuck |
ER32 & SC-03 exchange |
||
|
|
Machine Dimensions |
mm |
2100(W)x2500(L)x1930(H) |
|
|
Machine weight |
kgs |
2,300
|
