Specification

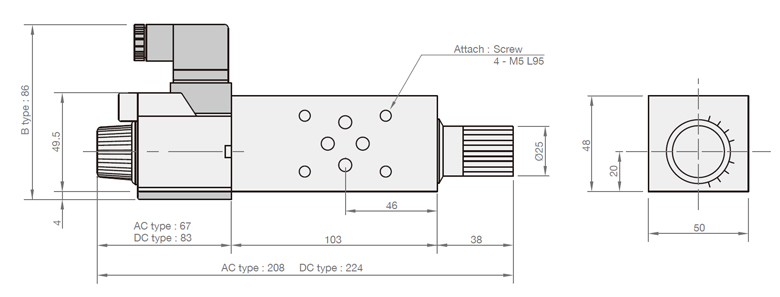

Model Spec.
| Model | Free Flow (l/min) | Max. Operational Pressure (kgf/cm²) | Max. Operational Flow (l/min) | Weight (kg) | |
| AC type | DC type | ||||
| MFS-02 | 30 | 150 | 1, 2, 4, 8 | 2.4 | 2.6 |
* The most common max. operational flow is 4 l/min.
Nomenclature
| MFS | - | 02B | - | 04R | - | A1 |
| a | - | b c | - | d e | - | f |
a. Model Name : MFS
b. Thread Connection : 02→1/4"
c. Solenoid Appearance : A→standard type(AC), B→DIN connector type
d. Max. Operational Flow : 01→1 l/min, 02→2 l/min, 04→4 l/min, 08→8 l/min
e. Hydraulic Circuit Type : R, P
f. Power Source :
A1 : AC110V, 50/60Hz A2 : AC220V, , 50/60Hz
D1 : DC12V, D2:DC24V
