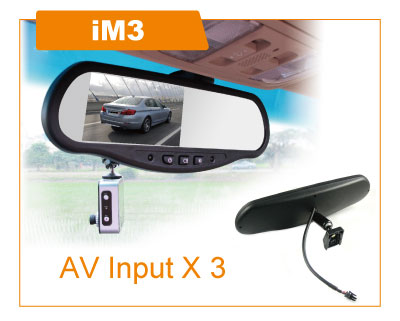

Rear View Mirror Monitor
IM3 - AV INPUT X 3
IM3
．4.3 Inches High Resolution TFT LCD Module
．Anti Dazzle Mirror
．Auto Adjust Brightness of Monitor for Day ad Night Mode
．Brightness Memory Function
Specification
1. Size : 4.3 inches
2. Display resolution : 480 (RGB) x 272
3. Brightness: 450×0.45 cd/㎡
4. Compatible with NTSC or PAL system
5. Operation temperature: -20°C～70°C
6. Storage temperature: -30°C～80°C
7. Power range: DC 10～15V
8. Standby power consumption≦ 40mA / 12V
9. Dimension: 280 × 96 × 30mm
10. Net weight : 385 g
11. Made in TAIWAN
