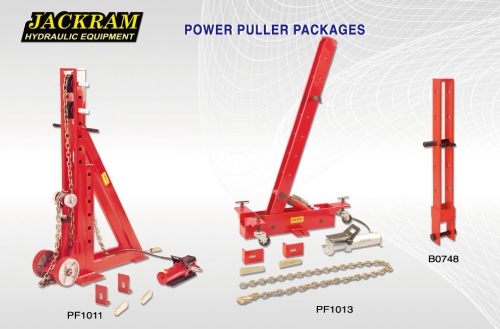

MODEL PF1011:
FEATURES:
*Adjustable pulley on tower performs both straight and angle pulls from 6” above base to a maximum of 70”.
*For using in conjunction with floor system for auto body repair.
*Equipped with two big wheels for easy maneuvering to the site required.
*The pull chain can travel through a distance of 50cm before having to be re-set.
*Simply remove pulley to desired height.
*Air/Hydraulic pump and 10 Ton ram with 10” stroke attached.
N.W. 132 KG G.W. 142 KG CUFT. 17’
MODEL PF1013:
FEATURES:
*For using in conjunction with floor system for auto body repair.
*Equipped with three adjustable wheels for easy maneuvering to site required.
*Air/Hydraulic pump and 10 ton ram with 6” stroke attached.
N.W. 88.5 KG G.W. 106.5 KG CUFT. 8.6’
MODEL B0748 (Attachment):
FEATURES:
Suitable for repairing van and light truck.
N.W. 17KG G.W. 18KG CUFT. 0.5’
