AW050H 14MM STUBBY AIR IMPACT WRENCH
AW050H

【APACH NEW PRODUCT RELEASE】AW050H - 14MM SUPER STUBBY AIR IMPACT WRENCH

◢ POWERFUL ➔ 542 N.m Working torque & max 813 N.m. in reverse, with 9,000 RPM free speed
◢ SUPER SHORT ➔ Only 87mm (3.38”): access easily in cramped spaces

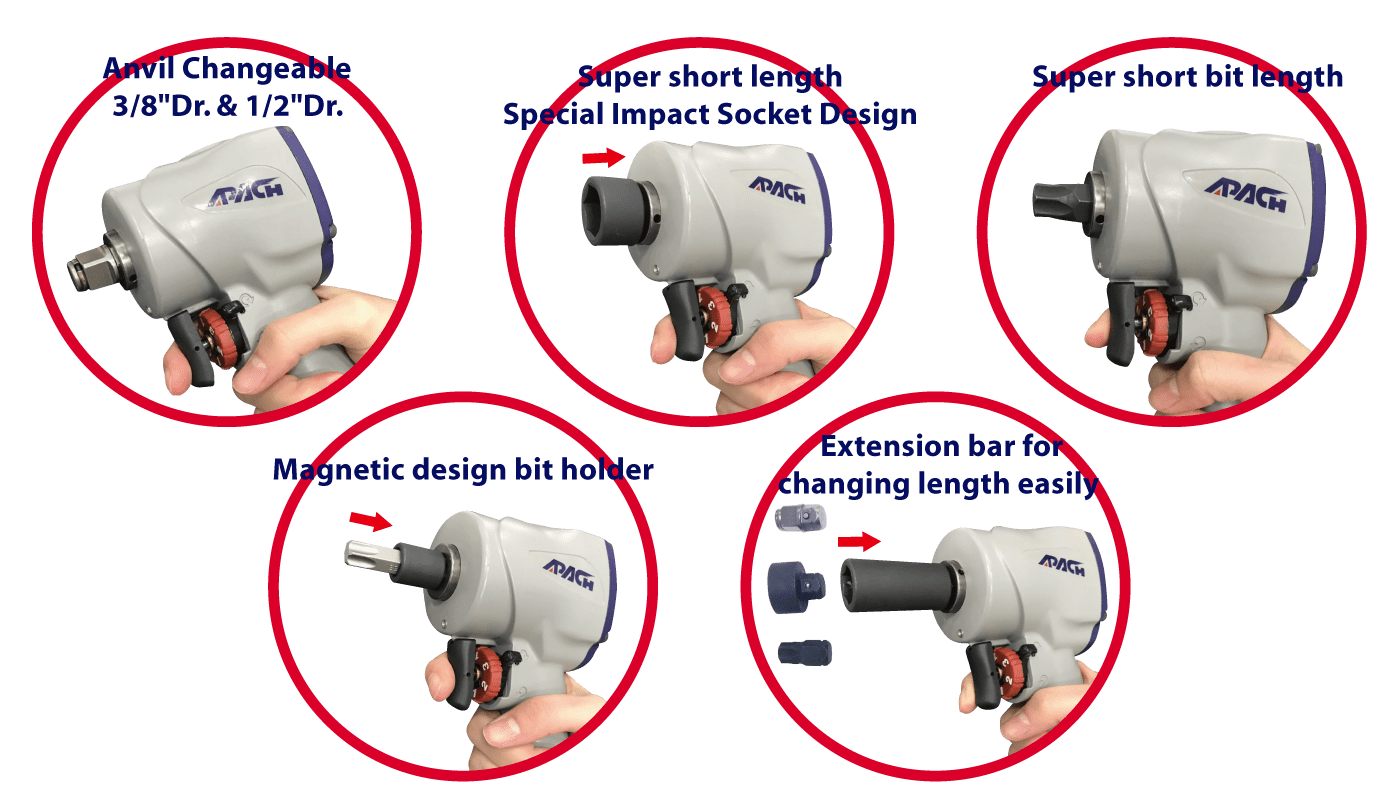

◢ MULTIFUNCTION ➔ Patent anvil design with anvil adaptors, impact sockets, bits, bit holders & extension bar
◢ LIGHTWEIGHT ➔ 1 .35 kg (2.98 lb) only to release working stress
▸ Mechanism: Jumbo Hammer
▸ One-hand operation for forward & reverse; 3 positions for each side
▸ Highest durable Japanese steel anvil
▸ Die casting of housing
▸ Handle exhaust

● SPECIFICATIONS
▹ Bolt Capacity: 5/8" (M16)
▹ Avg/Air Con.: 4.0 CFM (113 L/min)
▹ Air Inlet: 1/4"
▹ Air Pressure: 6.2 Bar (90 PSI)
▹ Hose Size L.D: 3/8"
▹ Working Torque: 400 ft-lb (542 N.m.)
▹ Max Torque: 600 ft-lb (813 N.m.)
▹ Vibration: 11.6 m/s²
▹ Sound Pressure Level: 96.5 Dba
▹ Overall Length: 87mm (3.4")
▹ Net Weight: 1.35 kg (2.98lb)

● APPLICATIONS
▹ Automobile (Automotive)
▹ Agricultural machine
▹ Motorcycle
▹ Packaging, crates & pallets
