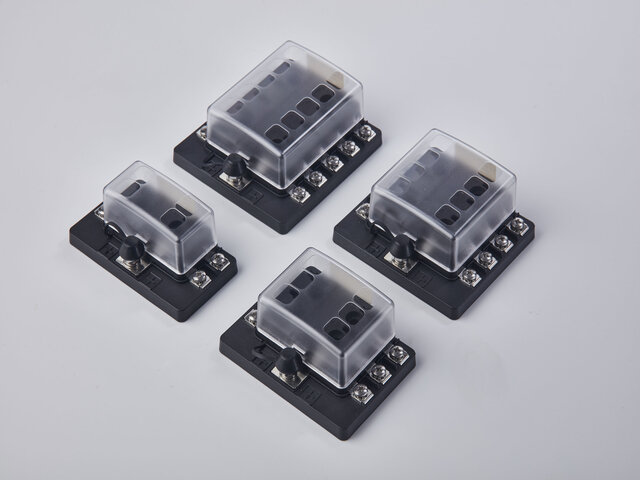

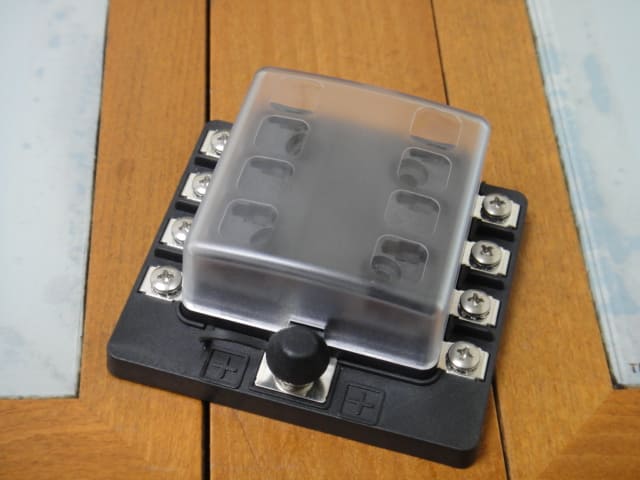

SCREWS TERMINAL TYPE MINI BLADE AND OR MICRO II FUSE PANEL
For MIN-N,MIC( MINI, MICRO 2) fuses.
* M4 X 7 mm screws terminal.
* #10-32 stud terminal with hex, nut, flat washer and
lockwasher supplied.
* Four 5.5mm diameter mounting holes for #10 screws.
* Transparent cover for dust & humid protection. (Can
choose with or without the cover.)
* Rugged, lightweight construction.
Specification:
* Maximum Amperage per circuit - 30 Amps
* Maximum voltage DC32V or less
** Maximum Amperage per block - 100 Amps
* Base material – Nylon PA66 + 15% Fiber+ UL94V0
* Terminal Material – Copper/Brass(Tin Plating)
Fuse Block that can use two types of Fuses Mini Fuses & Micro 2 Type Fuses.
Also available Quick Connect type Terminal.
Contact our professional sales personnel for more details.
