TSG-350 AKUMA Precision surface grinder
Characteristic:The dust Suction System is included in the machine, which saves space on the factory floor and is suitable for high precision industries such as semiconductors, molds, and optics.

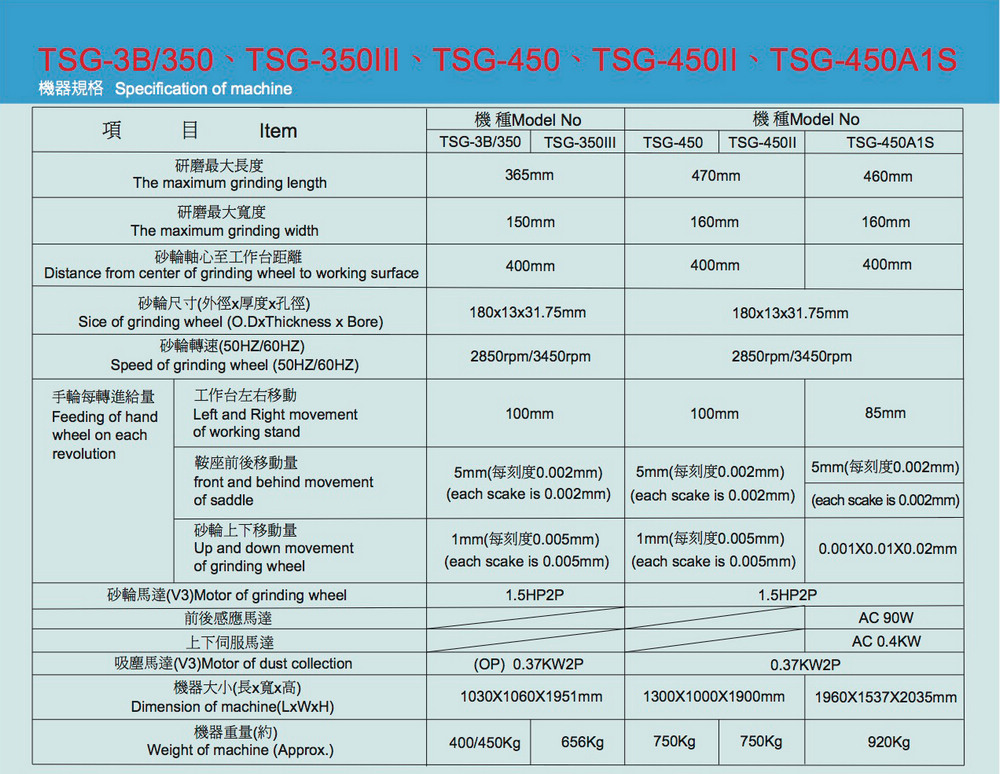

Specification  of   Machine

Diagram of lubricant loop

Integrated design including spindle with cartridge type,spindle of  grinding wheel,and motor.

Working height

The distance form surface to center of grindingwheel shaft is 38.5mm,can use large fixture and trimmer.

Slide rail of working stand

Slide rail of saddle is V and flat type desige, TSG-450 is V type with double track,and with(TEFLON)flap,those makes movement ofworking stand light and fast to assure accuracy.

Auto lubrication system

Adapts electromagnetic pump to control continuous circulation of lubricant in order to lubricate all slide rails, up-and-down as well as back-and-forth screw.

Compact and vertical pillar

Adapts H type construction,high intensity,wide span of slide rail,spindle is vibration-free to assure accuracy of finshed product during orocessing.

Spindle with cartridge type

Use super precision (P4) grade of roller/ball bearing,end of bearing is placed under 3μ, sealed type of grease lubrication to secure long life,and it is simple and easy to replace spindle.

Left-and-right driving system

Driven by special wire rope,its movement is light and fast, accurate,and no vibration occurred.

Economical Dust Collecting System

Integrate with main machine (TSG-350), can save space,and it is easy to remove chips.

Complete accessories

Proper for various grinding operation, and fulfill mechanical functions completely.

Standard accessories

1.Dust collection systen (TSG-350)⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set

2.Grinding wheel(Dia.x thickness x Bore 180x13x31.75)  ⋯⋯⋯⋯⋯⋯⋯⋯1/pcs

3.Flange and plucking tools⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set

4.Blancing bar of grinder wheel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/pc

5.Stand type of trimmer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set

6.Working light ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set

7.Horizontal adjusting screw and base plate  ⋯⋯⋯⋯ 4/ each 4pcs

8.Tools and hand carrying tool case ⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set

9.Hook ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4/pcs

10.Psston ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 4/pcs

11.Lubricant ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4/liters

12.Operation manual ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1/set
