● Accurate oil output, high pressure at the oil outlet.
● Distributor flow, number of bits can be customized.
● Material (zinc alloy) corrosion resistant.
● Integrated processing.
● Piston mirror processing.
Warranty Period:2 Years
Min.Order Quantity:1 Piece/Pieces
Supply Ability:10000 Piece/Pieces per Month
Principle of the BFA/BFB distributor
•Lubricant delivered from the oil injector starts to drive through the umbrella valve in the BFA/BFB distributor
•When the umbrella valve closes the oil outlet hole, oil pressure forces BFA/BFB oil storage block to overcome spring force and lower down, and the oil cavity starts to store oil
•When BFA/BFB oil storage block arrives at the top of the oil ca vity, storing oil by BFA/BFB is completed
•When the oil pump stops supplying oil, the decompression valve is automatically opened to make lubricant in the main oil pipe to return through the decompression valve. The system pressure is lowered, the umbrella valve reciprocates and closes the inlet oil, and the BT oil storage block compresses the lubricant in the oil cavity to the the oil outlet port

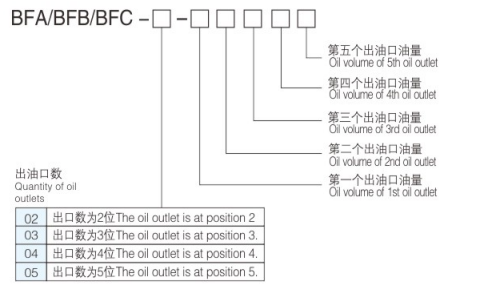

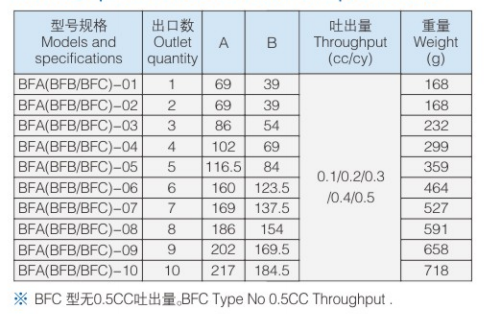

Notes: 7, 8, 9 and 10 are combination of BFA/BFB-02, BFA/BFB-03, BFA/BFB-04, BFA/BFB-05 and BFA/BFB-05. 6 is combination of BFA/BFB-03 and BFA/BFB-03
