產品介紹
工程塑膠螺絲

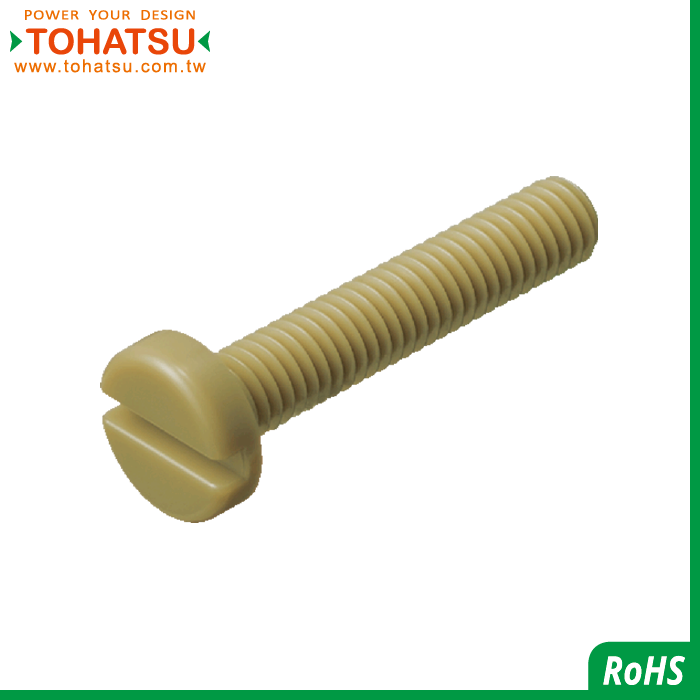

超極低頭一字塑膠螺絲(材質:PEEK)
PEEK-PH
低頭螺絲除了固定零件省空間、也可作護蓋螺栓使用,主要用於用於汽車,建築,機械,家電,電子產業, 機車以及腳踏車零件上。
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
PEEK-PH44014 | PEEK-PH | PEEK | 4-40 | 1/4 | 全牙 |
PEEK-PH440516 | PEEK-PH | PEEK | 4-40 | 5/16 | 全牙 |
PEEK-PH44038 | PEEK-PH | PEEK | 4-40 | 3/8 | 全牙 |
PEEK-PH44012 | PEEK-PH | PEEK | 4-40 | 1/2 | 全牙 |
PEEK-PH44058 | PEEK-PH | PEEK | 4-40 | 5/8 | 全牙 |
PEEK-PH44034 | PEEK-PH | PEEK | 4-40 | 3/4 | 全牙 |
PEEK-PH44078 | PEEK-PH | PEEK | 4-40 | 7/8 | 全牙 |
PEEK-PH4401 | PEEK-PH | PEEK | 4-40 | 1 | 全牙 |
PEEK-PH63214 | PEEK-PH | PEEK | 6-32 | 1/4 | 全牙 |
PEEK-PH632516 | PEEK-PH | PEEK | 6-32 | 5/16 | 全牙 |
PEEK-PH63238 | PEEK-PH | PEEK | 6-32 | 3/8 | 全牙 |
PEEK-PH63212 | PEEK-PH | PEEK | 6-32 | 1/2 | 全牙 |
PEEK-PH63258 | PEEK-PH | PEEK | 6-32 | 5/8 | 全牙 |
PEEK-PH63234 | PEEK-PH | PEEK | 6-32 | 3/4 | 全牙 |
PEEK-PH63278 | PEEK-PH | PEEK | 6-32 | 7/8 | 全牙 |
PEEK-PH6321 | PEEK-PH | PEEK | 6-32 | 1 | 全牙 |
PEEK-PH83214 | PEEK-PH | PEEK | 8-32 | 1/4 | 全牙 |
PEEK-PH832516 | PEEK-PH | PEEK | 8-32 | 5/16 | 全牙 |
PEEK-PH83238 | PEEK-PH | PEEK | 8-32 | 3/8 | 全牙 |
PEEK-PH83212 | PEEK-PH | PEEK | 8-32 | 1/2 | 全牙 |
PEEK-PH83258 | PEEK-PH | PEEK | 8-32 | 5/8 | 全牙 |
PEEK-PH83234 | PEEK-PH | PEEK | 8-32 | 3/4 | 全牙 |
PEEK-PH83278 | PEEK-PH | PEEK | 8-32 | 7/8 | 全牙 |
PEEK-PH8321 | PEEK-PH | PEEK | 8-32 | 1 | 全牙 |
PEEK-PH103238 | PEEK-PH | PEEK | 10-32 | 3/8 | 全牙 |
PEEK-PH103212 | PEEK-PH | PEEK | 10-32 | 1/2 | 全牙 |
PEEK-PH103258 | PEEK-PH | PEEK | 10-32 | 5/8 | 全牙 |
PEEK-PH103234 | PEEK-PH | PEEK | 10-32 | 3/4 | 全牙 |
PEEK-PH103278 | PEEK-PH | PEEK | 10-32 | 7/8 | 全牙 |
PEEK-PH10321 | PEEK-PH | PEEK | 10-32 | 1 | 全牙 |
