產品介紹
工程塑膠螺絲

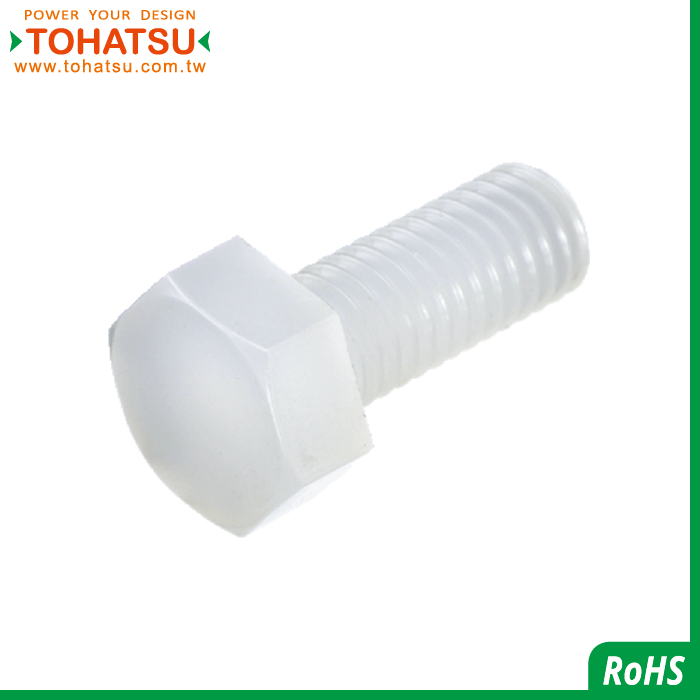

外六角塑膠螺栓(材質:PVDF)
PVDFBT
外六角螺絲主要用於薄壁零件上或受衝擊,振動或交變載荷的場合。預緊接觸面積大,可以用很大的預緊力
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
PVDFBTM410 | PVDFBT | PVDF | M4X0.7 | 10 | 全牙 |
PVDFBTM415 | PVDFBT | PVDF | M4X0.7 | 15 | 全牙 |
PVDFBTM420 | PVDFBT | PVDF | M4X0.7 | 20 | 全牙 |
PVDFBTM425 | PVDFBT | PVDF | M4X0.7 | 25 | 全牙 |
PVDFBTM430 | PVDFBT | PVDF | M4X0.7 | 30 | 全牙 |
PVDFBTM435 | PVDFBT | PVDF | M4X0.7 | 35 | 全牙 |
PVDFBTM440 | PVDFBT | PVDF | M4X0.7 | 40 | 全牙 |
PVDFBTM510 | PVDFBT | PVDF | M5X0.8 | 10 | 全牙 |
PVDFBTM515 | PVDFBT | PVDF | M5X0.8 | 15 | 全牙 |
PVDFBTM520 | PVDFBT | PVDF | M5X0.8 | 20 | 全牙 |
PVDFBTM525 | PVDFBT | PVDF | M5X0.8 | 25 | 全牙 |
PVDFBTM530 | PVDFBT | PVDF | M5X0.8 | 30 | 全牙 |
PVDFBTM535 | PVDFBT | PVDF | M5X0.8 | 35 | 全牙 |
PVDFBTM540 | PVDFBT | PVDF | M5X0.8 | 40 | 全牙 |
PVDFBTM610 | PVDFBT | PVDF | M6X1 | 10 | 全牙 |
PVDFBTM615 | PVDFBT | PVDF | M6X1 | 15 | 全牙 |
PVDFBTM620 | PVDFBT | PVDF | M6X1 | 20 | 全牙 |
PVDFBTM625 | PVDFBT | PVDF | M6X1 | 25 | 全牙 |
PVDFBTM630 | PVDFBT | PVDF | M6X1 | 30 | 全牙 |
PVDFBTM635 | PVDFBT | PVDF | M6X1 | 35 | 全牙 |
PVDFBTM640 | PVDFBT | PVDF | M6X1 | 40 | 全牙 |
PVDFBTM645 | PVDFBT | PVDF | M6X1 | 45 | 全牙 |
PVDFBTM650 | PVDFBT | PVDF | M6X1 | 50 | 全牙 |
PVDFBTM810 | PVDFBT | PVDF | M8X1.25 | 10 | 全牙 |
PVDFBTM815 | PVDFBT | PVDF | M8X1.25 | 15 | 全牙 |
PVDFBTM820 | PVDFBT | PVDF | M8X1.25 | 20 | 全牙 |
PVDFBTM825 | PVDFBT | PVDF | M8X1.25 | 25 | 全牙 |
PVDFBTM830 | PVDFBT | PVDF | M8X1.25 | 30 | 全牙 |
PVDFBTM835 | PVDFBT | PVDF | M8X1.25 | 35 | 全牙 |
PVDFBTM840 | PVDFBT | PVDF | M8X1.25 | 40 | 全牙 |
PVDFBTM845 | PVDFBT | PVDF | M8X1.25 | 45 | 全牙 |
PVDFBTM850 | PVDFBT | PVDF | M8X1.25 | 50 | 全牙 |
PVDFBTM1020 | PVDFBT | PVDF | M10X1.5 | 20 | 全牙 |
PVDFBTM1025 | PVDFBT | PVDF | M10X1.5 | 25 | 全牙 |
PVDFBTM1030 | PVDFBT | PVDF | M10X1.5 | 30 | 全牙 |
PVDFBTM1035 | PVDFBT | PVDF | M10X1.5 | 35 | 全牙 |
PVDFBTM1040 | PVDFBT | PVDF | M10X1.5 | 40 | 全牙 |
PVDFBTM1045 | PVDFBT | PVDF | M10X1.5 | 45 | 全牙 |
PVDFBTM1050 | PVDFBT | PVDF | M10X1.5 | 50 | 全牙 |
PVDFBTM1220 | PVDFBT | PVDF | M12X1.75 | 20 | 全牙 |
PVDFBTM1225 | PVDFBT | PVDF | M12X1.75 | 25 | 全牙 |
PVDFBTM1230 | PVDFBT | PVDF | M12X1.75 | 30 | 全牙 |
PVDFBTM1235 | PVDFBT | PVDF | M12X1.75 | 35 | 全牙 |
PVDFBTM1240 | PVDFBT | PVDF | M12X1.75 | 40 | 全牙 |
PVDFBTM1245 | PVDFBT | PVDF | M12X1.75 | 45 | 全牙 |
PVDFBTM1250 | PVDFBT | PVDF | M12X1.75 | 50 | 全牙 |
