產品介紹
工程塑膠螺絲

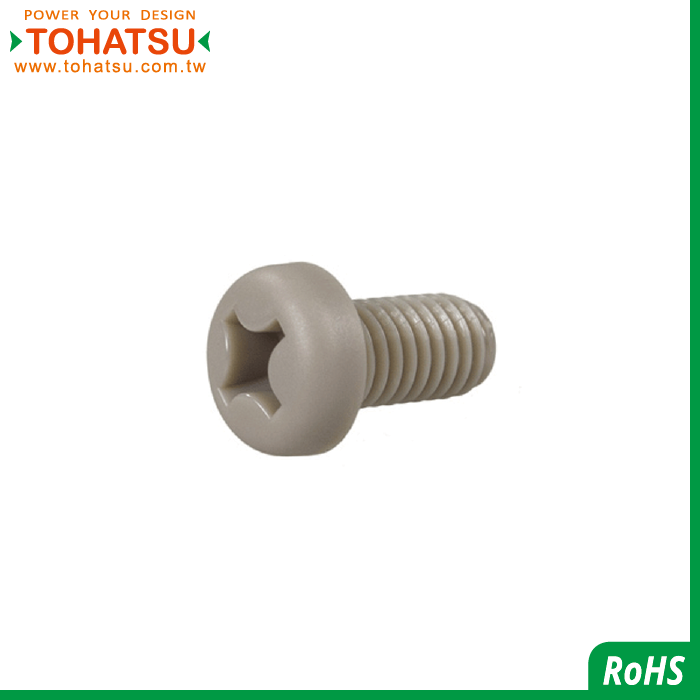

半圓頭十字塑膠螺絲(材質:PEEK)
PEEKPH
圓頭螺絲 一般被應用在機械螺絲上面,用來鎖付鐵件,尤其是傳統的大型機件設備上,因為圓形的螺絲頭可以降低螺絲頭在受到撞擊時的衝力,圓滑的頭型在受到撞擊時可以順利滑開,避免受到過大的撞擊力。
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
N0098-000091 | PEEKPH-M2X4 | PEEK | M2X0.4 | 4 | 全牙 |
N0098-000119 | PEEKPH-M2X5 | PEEK | M2X0.4 | 5 | 全牙 |
N0098-000125 | PEEKPH-M2X6 | PEEK | M2X0.4 | 6 | 全牙 |
N0098-000101 | PEEKPH-M3X3 | PEEK | M3X0.5 | 3 | 全牙 |
N0098-000104 | PEEKPH-M3X4 | PEEK | M3X0.5 | 4 | 全牙 |
N0098-000116 | PEEKPH-M3X5 | PEEK | M3X0.5 | 5 | 全牙 |
N0098-000098 | PEEKPH-M3X6 | PEEK | M3X0.5 | 6 | 全牙 |
N0098-000113 | PEEKPH-M3X8 | PEEK | M3X0.5 | 8 | 全牙 |
N0098-000093 | PEEKPH-M3X10 | PEEK | M3X0.5 | 10 | 全牙 |
N0098-000102 | PEEKPH-M3X12 | PEEK | M3X0.5 | 12 | 全牙 |
N0098-000094 | PEEKPH-M3X15 | PEEK | M3X0.5 | 15 | 全牙 |
N0098-000103 | PEEKPH-M3X16 | PEEK | M3X0.5 | 16 | 全牙 |
N0098-000112 | PEEKPH-M4X5 | PEEK | M4X0.7 | 5 | 全牙 |
N0098-000099 | PEEKPH-M4X6 | PEEK | M4X0.7 | 6 | 全牙 |
N0098-000108 | PEEKPH-M4X7 | PEEK | M4X0.7 | 7 | 全牙 |
N0098-000114 | PEEKPH-M4X8 | PEEK | M4X0.7 | 8 | 全牙 |
N0098-000126 | PEEKPH-M4X10 | PEEK | M4X0.7 | 10 | 全牙 |
N0098-000111 | PEEKPH-M4X12 | PEEK | M4X0.7 | 12 | 全牙 |
N0098-000106 | PEEKPH-M4X15 | PEEK | M4X0.7 | 15 | 全牙 |
N0098-000100 | PEEKPH-M4X16 | PEEK | M4X0.7 | 16 | 全牙 |
N0098-000089 | PEEKPH-M4X18 | PEEK | M4X0.7 | 18 | 全牙 |
N0098-000109 | PEEKPH-M4X20 | PEEK | M4X0.7 | 20 | 全牙 |
N0098-000095 | PEEKPH-M4X24 | PEEK | M4X0.7 | 24 | 全牙 |
N0098-000115 | PEEKPH-M4X25 | PEEK | M4X0.7 | 25 | 全牙 |
N0098-000127 | PEEKPH-M4X30 | PEEK | M4X0.7 | 30 | 全牙 |
N0098-000124 | PEEKPH-M5X10 | PEEK | M5X0.8 | 10 | 全牙 |
N0098-000090 | PEEKPH-M5X12 | PEEK | M5X0.8 | 12 | 全牙 |
N0098-000110 | PEEKPH-M5X15 | PEEK | M5X0.8 | 15 | 全牙 |
N0098-000088 | PEEKPH-M5X18 | PEEK | M5X0.8 | 18 | 全牙 |
N0098-000107 | PEEKPH-M5X20 | PEEK | M5X0.8 | 20 | 全牙 |
N0098-000120 | PEEKPH-M5X25 | PEEK | M5X0.8 | 25 | 全牙 |
N0098-000122 | PEEKPH-M5X30 | PEEK | M5X0.8 | 30 | 全牙 |
N0098-000118 | PEEKPH-M6X5 | PEEK | M6X1 | 5 | 全牙 |
N0098-000130 | PEEKPH-M6X10 | PEEK | M6X1 | 10 | 全牙 |
N0098-000086 | PEEKPH-M6X12 | PEEK | M6X1 | 12 | 全牙 |
N0098-000087 | PEEKPH-M6X15 | PEEK | M6X1 | 15 | 全牙 |
N0098-000128 | PEEKPH-M6X16 | PEEK | M6X1 | 16 | 全牙 |
N0098-000096 | PEEKPH-M6X20 | PEEK | M6X1 | 20 | 全牙 |
N0098-000121 | PEEKPH-M6X25 | PEEK | M6X1 | 25 | 全牙 |
N0098-000123 | PEEKPH-M6X30 | PEEK | M6X1 | 30 | 全牙 |
N0098-000097 | PEEKPH-M6X35 | PEEK | M6X1 | 35 | 全牙 |
N0098-000092 | PEEKPH-M6X40 | PEEK | M6X1 | 40 | 全牙 |
N0098-000117 | PEEKPH-M8X16 | PEEK | M8X1.25 | 16 | 全牙 |
N0098-000129 | PEEKPH-M8X40 | PEEK | M8X1.25 | 40 | 全牙 |
N0098-000105 | PEEKPH-M8X45 | PEEK | M8X1.25 | 45 | 全牙 |
