產品介紹
工程塑膠螺絲

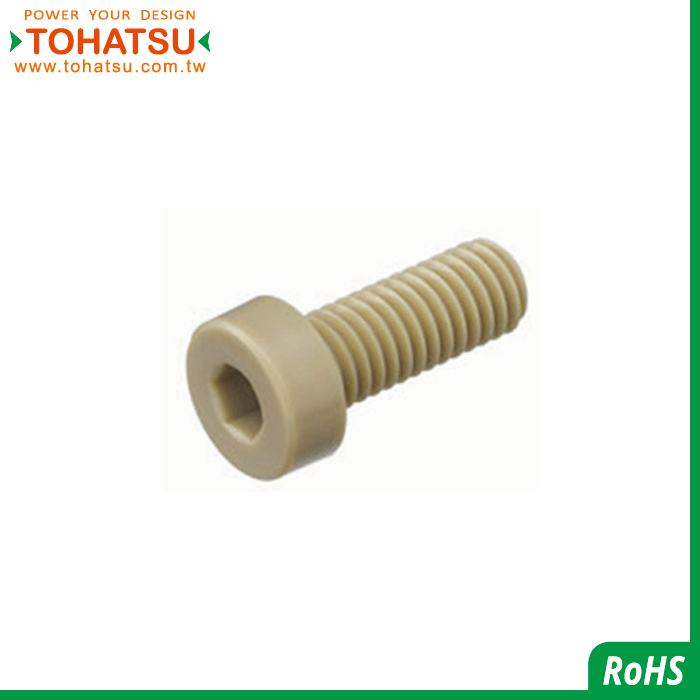

內六角塑膠螺絲(材質:PEEK)
SCBPEKM
內六角螺絲特性
1.不容易滑牙。
2.在使用中可以埋頭處理,即整個螺帽是沉到工件內部的,可保持工件表面的平整、美觀性。
3.更多的裝配場合,特別是狹窄的場合,所以,它裝配和維修時都很方便,調試也方便。
4.我們通常使用的工具是活動扳手、螺絲刀和開口扳手等,並且必須使用專用扳手卸下內六角螺絲。因此,普通人不容易拆卸,這也是一個好處。
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
N017400190 | SCBPEKM3-6 | PEEK | M3X0.5 | 6 | 全牙 |
N017400191 | SCBPEKM3-8 | PEEK | M3X0.5 | 8 | 全牙 |
N017400184 | SCBPEKM3-10 | PEEK | M3X0.5 | 10 | 全牙 |
N017400185 | SCBPEKM3-12 | PEEK | M3X0.5 | 12 | 全牙 |
N017400186 | SCBPEKM3-15 | PEEK | M3X0.5 | 15 | 全牙 |
N017400187 | SCBPEKM3-16 | PEEK | M3X0.5 | 16 | 全牙 |
N017400188 | SCBPEKM3-20 | PEEK | M3X0.5 | 20 | 全牙 |
N017400189 | SCBPEKM3-25 | PEEK | M3X0.5 | 25 | 全牙 |
N017400192 | SCBPEKM4-8 | PEEK | M4X0.7 | 8 | 全牙 |
N017400193 | SCBPEKM4-10 | PEEK | M4X0.7 | 10 | 全牙 |
N017400194 | SCBPEKM4-12 | PEEK | M4X0.7 | 12 | 全牙 |
N017400195 | SCBPEKM4-15 | PEEK | M4X0.7 | 15 | 全牙 |
N017400196 | SCBPEKM4-16 | PEEK | M4X0.7 | 16 | 全牙 |
N017400197 | SCBPEKM4-20 | PEEK | M4X0.7 | 20 | 全牙 |
N017400198 | SCBPEKM4-25 | PEEK | M4X0.7 | 25 | 全牙 |
N017400199 | SCBPEKM4-30 | PEEK | M4X0.7 | 30 | 全牙 |
N017400200 | SCBPEKM4-35 | PEEK | M4X0.7 | 35 | 全牙 |
N017400201 | SCBPEKM4-40 | PEEK | M4X0.7 | 40 | 全牙 |
N017400202 | SCBPEKM5-8 | PEEK | M5X0.8 | 8 | 全牙 |
N017400203 | SCBPEKM5-10 | PEEK | M5X0.8 | 10 | 全牙 |
N017400204 | SCBPEKM5-12 | PEEK | M5X0.8 | 12 | 全牙 |
N017400205 | SCBPEKM5-15 | PEEK | M5X0.8 | 15 | 全牙 |
N017400206 | SCBPEKM5-16 | PEEK | M5X0.8 | 16 | 全牙 |
N017400207 | SCBPEKM5-20 | PEEK | M5X0.8 | 20 | 全牙 |
N017400208 | SCBPEKM5-25 | PEEK | M5X0.8 | 25 | 全牙 |
N017400209 | SCBPEKM5-30 | PEEK | M5X0.8 | 30 | 全牙 |
N017400210 | SCBPEKM5-35 | PEEK | M5X0.8 | 35 | 全牙 |
N017400211 | SCBPEKM5-40 | PEEK | M5X0.8 | 40 | 全牙 |
N017400212 | SCBPEKM6-10 | PEEK | M6X1 | 10 | 全牙 |
N017400213 | SCBPEKM6-12 | PEEK | M6X1 | 12 | 全牙 |
N017400214 | SCBPEKM6-15 | PEEK | M6X1 | 15 | 全牙 |
N017400215 | SCBPEKM6-16 | PEEK | M6X1 | 16 | 全牙 |
N017400216 | SCBPEKM6-20 | PEEK | M6X1 | 20 | 全牙 |
N017400217 | SCBPEKM6-25 | PEEK | M6X1 | 25 | 全牙 |
N017400218 | SCBPEKM6-30 | PEEK | M6X1 | 30 | 全牙 |
N017400219 | SCBPEKM6-35 | PEEK | M6X1 | 35 | 全牙 |
N017400220 | SCBPEKM6-40 | PEEK | M6X1 | 40 | 全牙 |
N017400221 | SCBPEKM6-45 | PEEK | M6X1 | 45 | 全牙 |
N017400222 | SCBPEKM6-50 | PEEK | M6X1 | 50 | 全牙 |
N017400223 | SCBPEKM8-10 | PEEK | M8X1.25 | 10 | 全牙 |
N017400224 | SCBPEKM8-12 | PEEK | M8X1.25 | 12 | 全牙 |
N017400225 | SCBPEKM8-15 | PEEK | M8X1.25 | 15 | 全牙 |
N017400226 | SCBPEKM8-16 | PEEK | M8X1.25 | 16 | 全牙 |
N017400227 | SCBPEKM8-20 | PEEK | M8X1.25 | 20 | 全牙 |
N017400228 | SCBPEKM8-25 | PEEK | M8X1.25 | 25 | 全牙 |
N017400229 | SCBPEKM8-30 | PEEK | M8X1.25 | 30 | 全牙 |
N017400230 | SCBPEKM8-35 | PEEK | M8X1.25 | 35 | 全牙 |
N017400231 | SCBPEKM8-40 | PEEK | M8X1.25 | 40 | 全牙 |
N017400232 | SCBPEKM8-45 | PEEK | M8X1.25 | 45 | 全牙 |
N017400233 | SCBPEKM8-50 | PEEK | M8X1.25 | 50 | 全牙 |
