波形彈簧

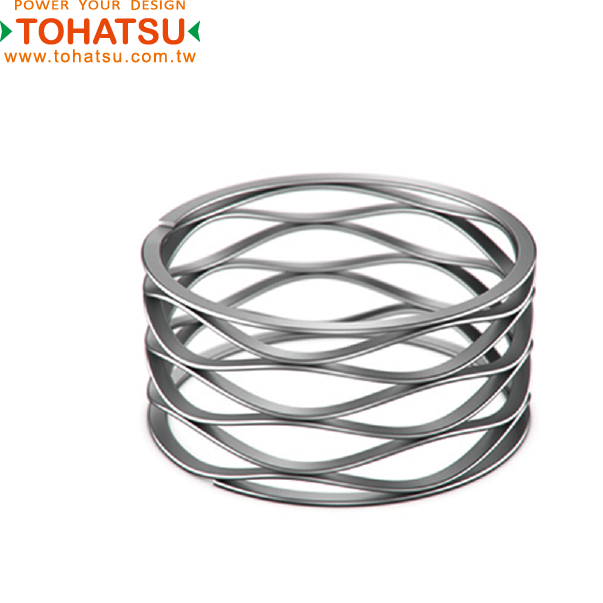

對頂波簧(平端型)(材質:不銹鋼)
TCMS
波形彈簧特別適用於需要減重的應用和受較小安裝空間制約的應用，其典型使用領域包括： 航空航天、精密機械、液壓密封和高端電機。
特點:

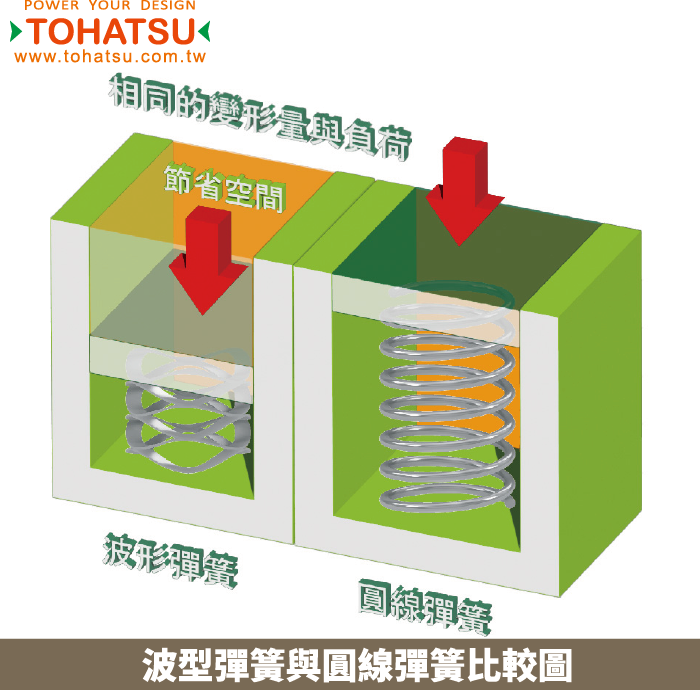

1.波形彈簧有節省空間方面的強力優勢(可降低50%工作高度)可用來取代螺旋彈簧。
2.具有與普通螺旋壓縮彈簧相同的荷重與變形量。3.波浪彈簧適合徑向和軸向空間。
4.軸向載荷可以100％轉移
波型彈簧的種類:
1.單層波形彈簧。
主要用途:1.用於提供預緊力和補償裝配公差。2.通過緊貼孔，節省徑向空。
2.對頂波形彈簧。
主要用途:1.與傳統螺旋彈簧相比，節省50%的裝配空間。2.具有比單層波圈更高的壓縮量。
使用注意:1.避免軸承系統在運行中出現震動容易造成波型彈簧受損。
定義彈簧設計的需求:
1.使用空間通常是指波簧在孔內或軸上的工作位置。波簧承載面之間的距離決定了軸向的作動空間或工作高度。
2.波簧的荷重是藉由彈簧本身的工作高度與軸向施力所產生的。有些應用場合有兩個或更多個工作高度的需求，則必須將其列為設計的重點，尤其是有堆疊所產生的公差時，以最小負荷及最大負荷做為設計的考量是不錯的解決方案。
3.高溫場合、動態應用（疲勞度）、腐蝕物質或其他特殊的應用環境及條件都必須列入評估。對於各種不同的使用環境，最好的方法就是選擇最理想的原材料和作用應力，才能使彈簧發揮最佳效用。
材質:不銹鋼(17-7 PH/C)
規格數據
|
品號
Product No.
|
適用孔徑
Applicable aperture
|
適用軸徑
Applicable shaft diameter
|
荷重(N)
load
|
工作高度
working height
|
自由長
Free length
|
波數
Wavenumber
|
圈數
number of laps
|
彈性係數(N/mm)
Elasticity coefficient
|
|---|---|---|---|---|---|---|---|---|
| TCMS08-L1-S17 | 8 | 5 | 15 | 1.7 | 2.82 | 2.5 | 3 | 13.39 |
| TCMS08-L2-S17 | 8 | 5 | 15 | 2.39 | 3.76 | 2.5 | 4 | 10.95 |
| TCMS08-L3-S17 | 8 | 5 | 15 | 2.74 | 4.7 | 2.5 | 5 | 7.65 |
| TCMS08-L4-S17 | 8 | 5 | 15 | 3.56 | 5.64 | 2.5 | 6 | 7.21 |
| TCMS08-L5-S17 | 8 | 5 | 15 | 4.01 | 6.58 | 2.5 | 7 | 5.84 |
| TCMS08-L6-S17 | 8 | 5 | 15 | 4.57 | 7.52 | 2.5 | 8 | 5.08 |
| TCMS08-L7-S17 | 8 | 5 | 15 | 5.26 | 8.46 | 2.5 | 9 | 4.69 |
| TCMS08-L8-S17 | 8 | 5 | 15 | 6.35 | 10.34 | 2.5 | 11 | 3.76 |
| TCMS08-L9-S17 | 8 | 5 | 15 | 7.37 | 12.22 | 2.5 | 13 | 3.09 |
| TCMS08-M1-S17 | 8 | 5 | 30 | 1.78 | 2.82 | 2.5 | 3 | 28.85 |
| TCMS08-M2-S17 | 8 | 5 | 30 | 2.54 | 3.76 | 2.5 | 4 | 24.59 |
| TCMS08-M3-S17 | 8 | 5 | 30 | 3.05 | 4.7 | 2.5 | 5 | 18.18 |
| TCMS08-M4-S17 | 8 | 5 | 30 | 3.81 | 5.64 | 2.5 | 6 | 16.39 |
| TCMS08-M5-S17 | 8 | 5 | 30 | 4.32 | 6.58 | 2.5 | 7 | 13.27 |
| TCMS08-M6-S17 | 8 | 5 | 30 | 4.95 | 7.52 | 2.5 | 8 | 11.67 |
| TCMS08-M7-S17 | 8 | 5 | 30 | 5.59 | 8.46 | 2.5 | 9 | 10.45 |
| TCMS08-M8-S17 | 8 | 5 | 30 | 6.86 | 10.34 | 2.5 | 11 | 8.62 |
| TCMS08-M9-S17 | 8 | 5 | 30 | 7.87 | 12.22 | 2.5 | 13 | 6.9 |
| TCMS10-L1-S17 | 10 | 7 | 18 | 1.91 | 3.96 | 2.5 | 3 | 8.78 |
| TCMS10-L2-S17 | 10 | 7 | 18 | 2.54 | 5.28 | 2.5 | 4 | 6.57 |
| TCMS10-L3-S17 | 10 | 7 | 18 | 3.15 | 6.6 | 2.5 | 5 | 5.22 |
| TCMS10-L4-S17 | 10 | 7 | 18 | 3.78 | 7.92 | 2.5 | 6 | 4.35 |
| TCMS10-L5-S17 | 10 | 7 | 18 | 4.42 | 9.25 | 2.5 | 7 | 3.73 |
| TCMS10-L6-S17 | 10 | 7 | 18 | 5.05 | 10.57 | 2.5 | 8 | 3.26 |
| TCMS10-L7-S17 | 10 | 7 | 18 | 5.69 | 11.89 | 2.5 | 9 | 2.9 |
| TCMS10-L8-S17 | 10 | 7 | 18 | 6.32 | 13.21 | 2.5 | 10 | 2.61 |
| TCMS10-L9-S17 | 10 | 7 | 18 | 6.96 | 14.53 | 2.5 | 11 | 2.38 |
| TCMS10-M1-S17 | 10 | 7 | 35 | 2.03 | 3.96 | 2.5 | 3 | 18.13 |
| TCMS10-M2-S17 | 10 | 7 | 35 | 2.79 | 5.28 | 2.5 | 4 | 14.06 |
| TCMS10-M3-S17 | 10 | 7 | 35 | 3.56 | 6.6 | 2.5 | 5 | 11.51 |
| TCMS10-M4-S17 | 10 | 7 | 35 | 4.32 | 7.92 | 2.5 | 6 | 9.72 |
| TCMS10-M5-S17 | 10 | 7 | 35 | 5.08 | 9.25 | 2.5 | 7 | 8.39 |
| TCMS10-M6-S17 | 10 | 7 | 35 | 5.84 | 10.57 | 2.5 | 8 | 7.4 |
| TCMS10-M7-S17 | 10 | 7 | 35 | 6.6 | 11.89 | 2.5 | 9 | 6.62 |
| TCMS10-M8-S17 | 10 | 7 | 35 | 7.37 | 13.21 | 2.5 | 10 | 5.99 |
| TCMS10-M9-S17 | 10 | 7 | 35 | 8.13 | 14.53 | 2.5 | 11 | 5.47 |
| TCMS12-L1-S17 | 12 | 9 | 20 | 1.47 | 4.34 | 2.5 | 3 | 6.97 |
| TCMS12-L2-S17 | 12 | 9 | 20 | 1.98 | 5.79 | 2.5 | 4 | 5.25 |
| TCMS12-L3-S17 | 12 | 9 | 20 | 2.46 | 7.24 | 2.5 | 5 | 4.18 |
| TCMS12-L4-S17 | 12 | 9 | 20 | 2.95 | 8.69 | 2.5 | 6 | 3.48 |
| TCMS12-L5-S17 | 12 | 9 | 20 | 3.45 | 10.13 | 2.5 | 7 | 2.99 |
| TCMS12-L6-S17 | 12 | 9 | 20 | 3.94 | 11.58 | 2.5 | 8 | 2.62 |
| TCMS12-L7-S17 | 12 | 9 | 20 | 4.45 | 13.03 | 2.5 | 9 | 2.33 |
| TCMS12-L8-S17 | 12 | 9 | 20 | 4.93 | 14.48 | 2.5 | 10 | 2.09 |
| TCMS12-L9-S17 | 12 | 9 | 20 | 4.93 | 14.48 | 2.5 | 10 | 2.09 |
| TCMS12-M1-S17 | 12 | 8.5 | 40 | 2.36 | 4.34 | 2.5 | 3 | 20.2 |
| TCMS12-M2-S17 | 12 | 8.5 | 40 | 3.18 | 5.79 | 2.5 | 4 | 15.33 |
| TCMS12-M3-S17 | 12 | 8.5 | 40 | 3.96 | 7.24 | 2.5 | 5 | 12.2 |
| TCMS12-M4-S17 | 12 | 8.5 | 40 | 4.75 | 8.69 | 2.5 | 6 | 10.15 |
| TCMS12-M5-S17 | 12 | 8.5 | 40 | 5.54 | 10.13 | 2.5 | 7 | 8.71 |
| TCMS12-M6-S17 | 12 | 8.5 | 40 | 6.32 | 11.58 | 2.5 | 8 | 7.6 |
| TCMS12-M7-S17 | 12 | 8.5 | 40 | 7.11 | 13.03 | 2.5 | 9 | 6.76 |
| TCMS12-M8-S17 | 12 | 8.5 | 40 | 7.92 | 14.48 | 2.5 | 10 | 6.1 |
| TCMS12-M9-S17 | 12 | 8.5 | 40 | 8.71 | 15.93 | 2.5 | 11 | 5.54 |
| TCMS12-H1-S17 | 12 | 8.5 | 60 | 1.98 | 4.34 | 2.5 | 3 | 25.42 |
| TCMS12-H2-S17 | 12 | 8.5 | 60 | 2.64 | 5.79 | 2.5 | 4 | 19.05 |
| TCMS12-H3-S17 | 12 | 8.5 | 60 | 3.3 | 7.24 | 2.5 | 5 | 15.23 |
| TCMS12-H4-S17 | 12 | 8.5 | 60 | 3.99 | 8.69 | 2.5 | 6 | 12.77 |
| TCMS12-H5-S17 | 12 | 8.5 | 60 | 4.65 | 10.13 | 2.5 | 7 | 10.95 |
| TCMS12-H6-S17 | 12 | 8.5 | 60 | 5.31 | 11.58 | 2.5 | 8 | 9.57 |
| TCMS12-H7-S17 | 12 | 8.5 | 60 | 5.97 | 13.03 | 2.5 | 9 | 8.5 |
| TCMS12-H8-S17 | 12 | 8.5 | 60 | 6.63 | 14.48 | 2.5 | 10 | 7.64 |
| TCMS12-H9-S17 | 12 | 8.5 | 60 | 7.29 | 15.93 | 2.5 | 11 | 6.94 |
| TCMS14-L1-S17 | 14 | 10 | 22 | 2.18 | 4.95 | 2.5 | 3 | 7.94 |
| TCMS14-L2-S17 | 14 | 10 | 22 | 2.95 | 6.6 | 2.5 | 4 | 6.03 |
| TCMS14-L3-S17 | 14 | 10 | 22 | 3.71 | 8.26 | 2.5 | 5 | 4.84 |
| TCMS14-L4-S17 | 14 | 10 | 22 | 4.52 | 9.91 | 2.5 | 6 | 4.08 |
| TCMS14-L5-S17 | 14 | 10 | 22 | 5.33 | 11.56 | 2.5 | 7 | 3.53 |
| TCMS14-L6-S17 | 14 | 10 | 22 | 6.17 | 13.21 | 2.5 | 8 | 3.13 |
| TCMS14-L7-S17 | 14 | 10 | 22 | 7.01 | 14.86 | 2.5 | 9 | 2.8 |
| TCMS14-L8-S17 | 14 | 10 | 22 | 7.85 | 16.51 | 2.5 | 10 | 2.54 |
| TCMS14-L9-S17 | 14 | 10 | 22 | 8.71 | 18.16 | 2.5 | 11 | 2.33 |
| TCMS14-M1-S17 | 14 | 10 | 50 | 2.18 | 4.95 | 2.5 | 3 | 18.05 |
| TCMS14-M2-S17 | 14 | 10 | 50 | 2.95 | 6.6 | 2.5 | 4 | 13.7 |
| TCMS14-M3-S17 | 14 | 10 | 50 | 3.71 | 8.26 | 2.5 | 5 | 10.99 |
| TCMS14-M4-S17 | 14 | 10 | 50 | 4.52 | 9.91 | 2.5 | 6 | 9.28 |
| TCMS14-M5-S17 | 14 | 10 | 50 | 5.33 | 11.56 | 2.5 | 7 | 8.03 |
| TCMS14-M6-S17 | 14 | 10 | 50 | 6.17 | 13.21 | 2.5 | 8 | 7.1 |
| TCMS14-M7-S17 | 14 | 10 | 50 | 7.01 | 14.86 | 2.5 | 9 | 6.37 |
| TCMS14-M8-S17 | 14 | 10 | 50 | 7.85 | 16.51 | 2.5 | 10 | 5.77 |
| TCMS14-M9-S17 | 14 | 10 | 50 | 8.71 | 18.16 | 2.5 | 11 | 5.29 |
| TCMS14-H1-S17 | 14 | 9 | 80 | 3.15 | 4.95 | 2.5 | 3 | 44.44 |
| TCMS14-H2-S17 | 14 | 9 | 80 | 4.19 | 6.6 | 2.5 | 4 | 33.2 |
| TCMS14-H3-S17 | 14 | 9 | 80 | 5.26 | 8.26 | 2.5 | 5 | 26.67 |
| TCMS14-H4-S17 | 14 | 9 | 80 | 6.3 | 9.91 | 2.5 | 6 | 22.16 |
| TCMS14-H5-S17 | 14 | 9 | 80 | 7.34 | 11.56 | 2.5 | 7 | 18.96 |
| TCMS14-H6-S17 | 14 | 9 | 80 | 8.41 | 13.21 | 2.5 | 8 | 16.67 |
| TCMS14-H7-S17 | 14 | 9 | 80 | 9.45 | 14.86 | 2.5 | 9 | 14.79 |
| TCMS14-H8-S17 | 14 | 9 | 80 | 10.49 | 16.51 | 2.5 | 10 | 13.29 |
| TCMS14-H9-S17 | 14 | 9 | 80 | 11.56 | 18.16 | 2.5 | 11 | 12.12 |
| TCMS15-L1-S17 | 15 | 11 | 25 | 2.57 | 5.18 | 2.5 | 3 | 9.58 |
| TCMS15-L2-S17 | 15 | 11 | 25 | 3.43 | 6.91 | 2.5 | 4 | 7.18 |
| TCMS15-L3-S17 | 15 | 11 | 25 | 4.27 | 8.64 | 2.5 | 5 | 5.72 |
| TCMS15-L4-S17 | 15 | 11 | 25 | 5.13 | 10.36 | 2.5 | 6 | 4.78 |
| TCMS15-L5-S17 | 15 | 11 | 25 | 5.99 | 12.09 | 2.5 | 7 | 4.1 |
| TCMS15-L6-S17 | 15 | 11 | 25 | 6.83 | 13.82 | 2.5 | 8 | 3.58 |
| TCMS15-L7-S17 | 15 | 11 | 25 | 7.7 | 15.54 | 2.5 | 9 | 3.19 |
| TCMS15-L8-S17 | 15 | 11 | 25 | 8.53 | 17.27 | 2.5 | 10 | 2.86 |
| TCMS15-L9-S17 | 15 | 11 | 25 | 9.4 | 19 | 2.5 | 11 | 2.6 |
| TCMS15-M1-S17 | 15 | 10 | 50 | 3.43 | 5.18 | 3.5 | 3 | 28.57 |
| TCMS15-M2-S17 | 15 | 10 | 50 | 4.57 | 6.91 | 3.5 | 4 | 21.37 |
| TCMS15-M3-S17 | 15 | 10 | 50 | 5.72 | 8.64 | 3.5 | 5 | 17.12 |
| TCMS15-M4-S17 | 15 | 10 | 50 | 6.86 | 10.36 | 3.5 | 6 | 14.29 |
| TCMS15-M5-S17 | 15 | 10 | 50 | 8 | 12.09 | 3.5 | 7 | 12.22 |
| TCMS15-M6-S17 | 15 | 10 | 50 | 9.14 | 13.82 | 3.5 | 8 | 10.68 |
| TCMS15-M7-S17 | 15 | 10 | 50 | 10.29 | 15.54 | 3.5 | 9 | 9.52 |
| TCMS15-M8-S17 | 15 | 10 | 50 | 11.43 | 17.27 | 3.5 | 10 | 8.56 |
| TCMS15-M9-S17 | 15 | 10 | 50 | 12.57 | 19 | 3.5 | 11 | 7.78 |
| TCMS15-H1-S17 | 15 | 10 | 80 | 3.2 | 5.18 | 3.5 | 3 | 40.4 |
| TCMS15-H2-S17 | 15 | 10 | 80 | 4.19 | 6.91 | 3.5 | 4 | 29.41 |
| TCMS15-H3-S17 | 15 | 10 | 80 | 5.23 | 8.64 | 3.5 | 5 | 23.46 |
| TCMS15-H4-S17 | 15 | 10 | 80 | 6.27 | 10.36 | 3.5 | 6 | 19.56 |
| TCMS15-H5-S17 | 15 | 10 | 80 | 7.32 | 12.09 | 3.5 | 7 | 16.77 |
| TCMS15-H6-S17 | 15 | 10 | 80 | 8.36 | 13.82 | 3.5 | 8 | 14.65 |
| TCMS15-H7-S17 | 15 | 10 | 80 | 9.4 | 15.54 | 3.5 | 9 | 13.03 |
| TCMS15-H8-S17 | 15 | 10 | 80 | 10.46 | 17.27 | 3.5 | 10 | 11.75 |
| TCMS15-H9-S17 | 15 | 10 | 80 | 11.51 | 19 | 3.5 | 11 | 10.68 |
| TCMS16-L1-S17 | 16 | 11 | 25 | 2.11 | 5.41 | 2.5 | 3 | 7.58 |
| TCMS16-L2-S17 | 16 | 11 | 25 | 2.79 | 7.21 | 2.5 | 4 | 5.66 |
| TCMS16-L3-S17 | 16 | 11 | 25 | 3.51 | 9.02 | 2.5 | 5 | 4.54 |
| TCMS16-L4-S17 | 16 | 11 | 25 | 4.19 | 10.82 | 2.5 | 6 | 3.77 |
| TCMS16-L5-S17 | 16 | 11 | 25 | 4.9 | 12.62 | 2.5 | 7 | 3.24 |
| TCMS16-L6-S17 | 16 | 11 | 25 | 6.3 | 16.23 | 2.5 | 9 | 2.52 |
| TCMS16-L7-S17 | 16 | 11 | 25 | 7.7 | 19.84 | 2.5 | 11 | 2.06 |
| TCMS16-L8-S17 | 16 | 11 | 25 | 9.09 | 23.44 | 2.5 | 13 | 1.74 |
| TCMS16-M1-S17 | 16 | 11 | 55 | 3.63 | 5.41 | 3.5 | 3 | 30.9 |
| TCMS16-M2-S17 | 16 | 11 | 55 | 4.83 | 7.21 | 3.5 | 4 | 23.11 |
| TCMS16-M3-S17 | 16 | 11 | 55 | 6.05 | 9.02 | 3.5 | 5 | 18.52 |
| TCMS16-M4-S17 | 16 | 11 | 55 | 7.24 | 10.82 | 3.5 | 6 | 15.36 |
| TCMS16-M5-S17 | 16 | 11 | 55 | 8.46 | 12.62 | 3.5 | 7 | 13.22 |
| TCMS16-M6-S17 | 16 | 11 | 55 | 10.87 | 16.23 | 3.5 | 9 | 10.26 |
| TCMS16-M7-S17 | 16 | 11 | 55 | 13.28 | 19.84 | 3.5 | 11 | 8.38 |
| TCMS16-M8-S17 | 16 | 11 | 55 | 15.7 | 23.44 | 3.5 | 13 | 7.11 |
| TCMS16-H1-S17 | 16 | 11 | 90 | 3.3 | 5.41 | 3.5 | 3 | 42.65 |
| TCMS16-H2-S17 | 16 | 11 | 90 | 4.57 | 7.21 | 3.5 | 4 | 34.09 |
| TCMS16-H3-S17 | 16 | 11 | 90 | 5.59 | 9.02 | 3.5 | 5 | 26.24 |
| TCMS16-H4-S17 | 16 | 11 | 90 | 6.86 | 10.82 | 3.5 | 6 | 22.73 |
| TCMS16-H5-S17 | 16 | 11 | 90 | 7.87 | 12.62 | 3.5 | 7 | 18.95 |
| TCMS16-H6-S17 | 16 | 11 | 90 | 10.16 | 16.23 | 3.5 | 9 | 14.83 |
| TCMS16-H7-S17 | 16 | 11 | 90 | 12.45 | 19.84 | 3.5 | 11 | 12.18 |
| TCMS16-H8-S17 | 16 | 11 | 90 | 14.73 | 23.44 | 3.5 | 13 | 10.33 |
| TCMS18-L1-S17 | 18 | 13 | 30 | 3.63 | 5.72 | 3.5 | 3 | 14.35 |
| TCMS18-L2-S17 | 18 | 13 | 30 | 4.75 | 7.62 | 3.5 | 4 | 10.45 |
| TCMS18-L3-S17 | 18 | 13 | 30 | 5.94 | 9.53 | 3.5 | 5 | 8.36 |
| TCMS18-L4-S17 | 18 | 13 | 30 | 7.14 | 11.43 | 3.5 | 6 | 6.99 |
| TCMS18-L5-S17 | 18 | 13 | 30 | 8.31 | 13.34 | 3.5 | 7 | 5.96 |
| TCMS18-L6-S17 | 18 | 13 | 30 | 10.69 | 17.15 | 3.5 | 9 | 4.64 |
| TCMS18-L7-S17 | 18 | 13 | 30 | 14.25 | 22.86 | 3.5 | 12 | 3.48 |
| TCMS18-M1-S17 | 18 | 13 | 55 | 3.68 | 5.72 | 3.5 | 3 | 26.96 |
| TCMS18-M2-S17 | 18 | 13 | 55 | 4.98 | 7.62 | 3.5 | 4 | 20.83 |
| TCMS18-M3-S17 | 18 | 13 | 55 | 6.22 | 9.53 | 3.5 | 5 | 16.62 |
| TCMS18-M4-S17 | 18 | 13 | 55 | 7.47 | 11.43 | 3.5 | 6 | 13.89 |
| TCMS18-M5-S17 | 18 | 13 | 55 | 8.74 | 13.34 | 3.5 | 7 | 11.96 |
| TCMS18-M6-S17 | 18 | 13 | 55 | 11.23 | 17.15 | 3.5 | 9 | 9.29 |
| TCMS18-M7-S17 | 18 | 13 | 55 | 14.96 | 22.86 | 3.5 | 12 | 6.96 |
| TCMS18-H1-S17 | 18 | 13 | 90 | 3.84 | 5.72 | 3.5 | 3 | 47.87 |
| TCMS18-H2-S17 | 18 | 13 | 90 | 5.13 | 7.62 | 3.5 | 4 | 36.14 |
| TCMS18-H3-S17 | 18 | 13 | 90 | 6.4 | 9.53 | 3.5 | 5 | 28.75 |
| TCMS18-H4-S17 | 18 | 13 | 90 | 7.7 | 11.43 | 3.5 | 6 | 24.13 |
| TCMS18-H5-S17 | 18 | 13 | 90 | 8.97 | 13.34 | 3.5 | 7 | 20.59 |
| TCMS18-H6-S17 | 18 | 13 | 90 | 11.53 | 17.15 | 3.5 | 9 | 16.01 |
| TCMS18-H7-S17 | 18 | 13 | 90 | 15.37 | 22.86 | 3.5 | 12 | 12.02 |
| TCMS20-L1-S17 | 20 | 15 | 35 | 2.72 | 6.32 | 3.5 | 3 | 9.72 |
| TCMS20-L2-S17 | 20 | 15 | 35 | 3.61 | 8.43 | 3.5 | 4 | 7.26 |
| TCMS20-L3-S17 | 20 | 15 | 35 | 4.52 | 10.54 | 3.5 | 5 | 5.81 |
| TCMS20-L4-S17 | 20 | 15 | 35 | 5.41 | 12.65 | 3.5 | 6 | 4.83 |
| TCMS20-L5-S17 | 20 | 15 | 35 | 6.32 | 14.76 | 3.5 | 7 | 4.15 |
| TCMS20-L6-S17 | 20 | 15 | 35 | 8.13 | 18.97 | 3.5 | 9 | 3.23 |
| TCMS20-L7-S17 | 20 | 15 | 35 | 10.82 | 25.3 | 3.5 | 12 | 2.42 |
| TCMS20-M1-S17 | 20 | 14 | 70 | 3.05 | 6.32 | 3.5 | 3 | 21.41 |
| TCMS20-M2-S17 | 20 | 14 | 70 | 4.06 | 8.43 | 3.5 | 4 | 16.02 |
| TCMS20-M3-S17 | 20 | 14 | 70 | 5.08 | 10.54 | 3.5 | 5 | 12.82 |
| TCMS20-M4-S17 | 20 | 14 | 70 | 6.27 | 12.65 | 3.5 | 6 | 10.97 |
| TCMS20-M5-S17 | 20 | 14 | 70 | 7.32 | 14.76 | 3.5 | 7 | 9.41 |
| TCMS20-M6-S17 | 20 | 14 | 70 | 9.17 | 18.97 | 3.5 | 9 | 7.14 |
| TCMS20-M7-S17 | 20 | 14 | 70 | 12.22 | 25.3 | 3.5 | 12 | 5.35 |
| TCMS20-H1-S17 | 20 | 14 | 100 | 4.24 | 6.32 | 3.5 | 3 | 48.08 |
| TCMS20-H2-S17 | 20 | 14 | 100 | 5.66 | 8.43 | 3.5 | 4 | 36.1 |
| TCMS20-H3-S17 | 20 | 14 | 100 | 7.06 | 10.54 | 3.5 | 5 | 28.74 |
| TCMS20-H4-S17 | 20 | 14 | 100 | 8.48 | 12.65 | 3.5 | 6 | 23.98 |
| TCMS20-H5-S17 | 20 | 14 | 100 | 9.91 | 14.76 | 3.5 | 7 | 20.62 |
| TCMS20-H6-S17 | 20 | 14 | 100 | 12.73 | 18.97 | 3.5 | 9 | 16.03 |
| TCMS20-H7-S17 | 20 | 14 | 100 | 16.97 | 25.3 | 3.5 | 12 | 12 |
| TCMS25-L1-S17 | 25 | 19 | 50 | 2.06 | 6.63 | 3.5 | 3 | 10.94 |
| TCMS25-L2-S17 | 25 | 19 | 50 | 2.74 | 8.84 | 3.5 | 4 | 8.2 |
| TCMS25-L3-S17 | 25 | 19 | 50 | 3.43 | 11.05 | 3.5 | 5 | 6.56 |
| TCMS25-L4-S17 | 25 | 19 | 50 | 4.11 | 13.26 | 3.5 | 6 | 5.46 |
| TCMS25-L5-S17 | 25 | 19 | 50 | 4.8 | 15.47 | 3.5 | 7 | 4.69 |
| TCMS25-L6-S17 | 25 | 19 | 50 | 6.2 | 19.89 | 3.5 | 9 | 3.65 |
| TCMS25-L7-S17 | 25 | 19 | 50 | 8.26 | 26.52 | 3.5 | 12 | 2.74 |
| TCMS25-M1-S17 | 25 | 19 | 80 | 2.95 | 6.63 | 3.5 | 3 | 21.74 |
| TCMS25-M2-S17 | 25 | 19 | 80 | 3.94 | 8.84 | 3.5 | 4 | 16.33 |
| TCMS25-M3-S17 | 25 | 19 | 80 | 4.9 | 11.05 | 3.5 | 5 | 13.01 |
| TCMS25-M4-S17 | 25 | 19 | 80 | 5.89 | 13.26 | 3.5 | 6 | 10.85 |
| TCMS25-M5-S17 | 25 | 19 | 80 | 6.88 | 15.47 | 3.5 | 7 | 9.31 |
| TCMS25-M6-S17 | 25 | 19 | 80 | 8.84 | 19.89 | 3.5 | 9 | 7.24 |
| TCMS25-M7-S17 | 25 | 19 | 80 | 11.79 | 26.52 | 3.5 | 12 | 5.43 |
| TCMS25-H1-S17 | 25 | 19 | 110 | 4.04 | 6.63 | 3.5 | 3 | 42.47 |
| TCMS25-H2-S17 | 25 | 19 | 110 | 5.38 | 8.84 | 3.5 | 4 | 31.79 |
| TCMS25-H3-S17 | 25 | 19 | 110 | 6.73 | 11.05 | 3.5 | 5 | 25.46 |
| TCMS25-H4-S17 | 25 | 19 | 110 | 8.08 | 13.26 | 3.5 | 6 | 21.24 |
| TCMS25-H5-S17 | 25 | 19 | 110 | 9.4 | 15.47 | 3.5 | 7 | 18.12 |
| TCMS25-H6-S17 | 25 | 19 | 110 | 12.12 | 19.89 | 3.5 | 9 | 14.16 |
| TCMS25-H7-S17 | 25 | 19 | 110 | 16.15 | 26.52 | 3.5 | 12 | 10.61 |
| TCMS28-L1-S17 | 28 | 22 | 50 | 3.76 | 7.24 | 3.5 | 3 | 14.37 |
| TCMS28-L2-S17 | 28 | 22 | 50 | 5 | 9.65 | 3.5 | 4 | 10.75 |
| TCMS28-L3-S17 | 28 | 22 | 50 | 6.27 | 12.07 | 3.5 | 5 | 8.62 |
| TCMS28-L4-S17 | 28 | 22 | 50 | 7.52 | 14.48 | 3.5 | 6 | 7.18 |
| TCMS28-L5-S17 | 28 | 22 | 50 | 8.79 | 16.89 | 3.5 | 7 | 6.17 |
| TCMS28-L6-S17 | 28 | 22 | 50 | 10.03 | 19.3 | 3.5 | 8 | 5.39 |
| TCMS28-L7-S17 | 28 | 22 | 50 | 11.28 | 21.72 | 3.5 | 9 | 4.79 |
| TCMS28-L8-S17 | 28 | 22 | 50 | 13.79 | 26.54 | 3.5 | 11 | 3.92 |
| TCMS28-L9-S17 | 28 | 22 | 50 | 16.31 | 31.37 | 3.5 | 13 | 3.32 |
| TCMS28-M1-S17 | 28 | 22 | 80 | 4.39 | 7.24 | 3.5 | 3 | 28.07 |
| TCMS28-M2-S17 | 28 | 22 | 80 | 5.84 | 9.65 | 3.5 | 4 | 21 |
| TCMS28-M3-S17 | 28 | 22 | 80 | 7.32 | 12.07 | 3.5 | 5 | 16.84 |
| TCMS28-M4-S17 | 28 | 22 | 80 | 8.79 | 14.48 | 3.5 | 6 | 14.06 |
| TCMS28-M5-S17 | 28 | 22 | 80 | 10.24 | 16.89 | 3.5 | 7 | 12.03 |
| TCMS28-M6-S17 | 28 | 22 | 80 | 11.71 | 19.3 | 3.5 | 8 | 10.54 |
| TCMS28-M7-S17 | 28 | 22 | 80 | 13.18 | 21.72 | 3.5 | 9 | 9.37 |
| TCMS28-M8-S17 | 28 | 22 | 80 | 16.1 | 26.54 | 3.5 | 11 | 7.66 |
| TCMS28-M9-S17 | 28 | 22 | 80 | 19.02 | 31.37 | 3.5 | 13 | 6.48 |
| TCMS28-H1-S17 | 28 | 22 | 130 | 4.57 | 7.24 | 3.5 | 3 | 48.69 |
| TCMS28-H2-S17 | 28 | 22 | 130 | 6.07 | 9.65 | 3.5 | 4 | 36.31 |
| TCMS28-H3-S17 | 28 | 22 | 130 | 7.59 | 12.07 | 3.5 | 5 | 29.02 |
| TCMS28-H4-S17 | 28 | 22 | 130 | 9.12 | 14.48 | 3.5 | 6 | 24.25 |
| TCMS28-H5-S17 | 28 | 22 | 130 | 10.64 | 16.89 | 3.5 | 7 | 20.8 |
| TCMS28-H6-S17 | 28 | 22 | 130 | 12.17 | 19.3 | 3.5 | 8 | 18.23 |
| TCMS28-H7-S17 | 28 | 22 | 130 | 13.69 | 21.72 | 3.5 | 9 | 16.19 |
| TCMS28-H8-S17 | 28 | 22 | 130 | 16.71 | 26.54 | 3.5 | 11 | 13.22 |
| TCMS28-H9-S17 | 28 | 22 | 130 | 19.76 | 31.37 | 3.5 | 13 | 11.2 |
| TCMS30-L1-S17 | 30 | 24 | 50 | 3.18 | 7.62 | 3.5 | 3 | 11.26 |
| TCMS30-L2-S17 | 30 | 24 | 50 | 4.22 | 10.16 | 3.5 | 4 | 8.42 |
| TCMS30-L3-S17 | 30 | 24 | 50 | 5.28 | 12.7 | 3.5 | 5 | 6.74 |
| TCMS30-L4-S17 | 30 | 24 | 50 | 6.32 | 15.24 | 3.5 | 6 | 5.61 |
| TCMS30-L5-S17 | 30 | 24 | 50 | 7.39 | 17.78 | 3.5 | 7 | 4.81 |
| TCMS30-L6-S17 | 30 | 24 | 50 | 8.43 | 20.32 | 3.5 | 8 | 4.21 |
| TCMS30-L7-S17 | 30 | 24 | 50 | 9.5 | 22.86 | 3.5 | 9 | 3.74 |
| TCMS30-L8-S17 | 30 | 24 | 50 | 11.61 | 27.94 | 3.5 | 11 | 3.06 |
| TCMS30-L9-S17 | 30 | 24 | 50 | 13.72 | 33.02 | 3.5 | 13 | 2.59 |
| TCMS30-M1-S17 | 30 | 24 | 90 | 3.51 | 7.62 | 3.5 | 3 | 21.9 |
| TCMS30-M2-S17 | 30 | 24 | 90 | 4.7 | 10.16 | 3.5 | 4 | 16.48 |
| TCMS30-M3-S17 | 30 | 24 | 90 | 5.87 | 12.7 | 3.5 | 5 | 13.18 |
| TCMS30-M4-S17 | 30 | 24 | 90 | 7.04 | 15.24 | 3.5 | 6 | 10.98 |
| TCMS30-M5-S17 | 30 | 24 | 90 | 8.2 | 17.78 | 3.5 | 7 | 9.39 |
| TCMS30-M6-S17 | 30 | 24 | 90 | 9.37 | 20.32 | 3.5 | 8 | 8.22 |
| TCMS30-M7-S17 | 30 | 24 | 90 | 10.54 | 22.86 | 3.5 | 9 | 7.31 |
| TCMS30-M8-S17 | 30 | 24 | 90 | 12.9 | 27.94 | 3.5 | 11 | 5.98 |
| TCMS30-M9-S17 | 30 | 24 | 90 | 15.24 | 33.02 | 3.5 | 13 | 5.06 |
| TCMS30-H1-S17 | 30 | 24 | 130 | 4.19 | 7.62 | 3.5 | 3 | 37.9 |
| TCMS30-H2-S17 | 30 | 24 | 130 | 5.59 | 10.16 | 3.5 | 4 | 28.45 |
| TCMS30-H3-S17 | 30 | 24 | 130 | 6.99 | 12.7 | 3.5 | 5 | 22.77 |
| TCMS30-H4-S17 | 30 | 24 | 130 | 8.38 | 15.24 | 3.5 | 6 | 18.95 |
| TCMS30-H5-S17 | 30 | 24 | 130 | 9.78 | 17.78 | 3.5 | 7 | 16.25 |
| TCMS30-H6-S17 | 30 | 24 | 130 | 11.18 | 20.32 | 3.5 | 8 | 14.22 |
| TCMS30-H7-S17 | 30 | 24 | 130 | 12.57 | 22.86 | 3.5 | 9 | 12.63 |
| TCMS30-H8-S17 | 30 | 24 | 130 | 15.37 | 27.94 | 3.5 | 11 | 10.34 |
| TCMS30-H9-S17 | 30 | 24 | 130 | 18.16 | 33.02 | 3.5 | 13 | 8.75 |
| TCMS35-L1-S17 | 35 | 27 | 70 | 3.94 | 8.38 | 3.5 | 3 | 15.77 |
| TCMS35-L2-S17 | 35 | 27 | 70 | 5.23 | 11.18 | 3.5 | 4 | 11.76 |
| TCMS35-L3-S17 | 35 | 27 | 70 | 6.55 | 13.97 | 3.5 | 5 | 9.43 |
| TCMS35-L4-S17 | 35 | 27 | 70 | 7.87 | 16.76 | 3.5 | 6 | 7.87 |
| TCMS35-L5-S17 | 35 | 27 | 70 | 9.17 | 19.56 | 3.5 | 7 | 6.74 |
| TCMS35-L6-S17 | 35 | 27 | 70 | 10.49 | 22.35 | 3.5 | 8 | 5.9 |
| TCMS35-L7-S17 | 35 | 27 | 70 | 11.81 | 25.15 | 3.5 | 9 | 5.25 |
| TCMS35-L8-S17 | 35 | 27 | 70 | 14.43 | 30.73 | 3.5 | 11 | 4.29 |
| TCMS35-L9-S17 | 35 | 27 | 70 | 17.04 | 36.32 | 3.5 | 13 | 3.63 |
| TCMS35-M1-S17 | 35 | 27 | 110 | 4.14 | 8.38 | 3.5 | 3 | 25.94 |
| TCMS35-M2-S17 | 35 | 27 | 110 | 5.51 | 11.18 | 3.5 | 4 | 19.4 |
| TCMS35-M3-S17 | 35 | 27 | 110 | 6.88 | 13.97 | 3.5 | 5 | 15.51 |
| TCMS35-M4-S17 | 35 | 27 | 110 | 8.26 | 16.76 | 3.5 | 6 | 12.94 |
| TCMS35-M5-S17 | 35 | 27 | 110 | 9.63 | 19.56 | 3.5 | 7 | 11.08 |
| TCMS35-M6-S17 | 35 | 27 | 110 | 11.02 | 22.35 | 3.5 | 8 | 9.71 |
| TCMS35-M7-S17 | 35 | 27 | 110 | 12.4 | 25.15 | 3.5 | 9 | 8.63 |
| TCMS35-M8-S17 | 35 | 27 | 110 | 15.14 | 30.73 | 3.5 | 11 | 7.06 |
| TCMS35-M9-S17 | 35 | 27 | 110 | 17.91 | 36.32 | 3.5 | 13 | 5.98 |
| TCMS35-H1-S17 | 35 | 27 | 160 | 4.04 | 8.38 | 3.5 | 3 | 36.87 |
| TCMS35-H2-S17 | 35 | 27 | 160 | 5.38 | 11.18 | 3.5 | 4 | 27.59 |
| TCMS35-H3-S17 | 35 | 27 | 160 | 6.73 | 13.97 | 3.5 | 5 | 22.1 |
| TCMS35-H4-S17 | 35 | 27 | 160 | 8.08 | 16.76 | 3.5 | 6 | 18.43 |
| TCMS35-H5-S17 | 35 | 27 | 160 | 9.42 | 19.56 | 3.5 | 7 | 15.78 |
| TCMS35-H6-S17 | 35 | 27 | 160 | 10.77 | 22.35 | 3.5 | 8 | 13.82 |
| TCMS35-H7-S17 | 35 | 27 | 160 | 12.12 | 25.15 | 3.5 | 9 | 12.28 |
| TCMS35-H8-S17 | 35 | 27 | 160 | 14.81 | 30.73 | 3.5 | 11 | 10.05 |
| TCMS35-H9-S17 | 35 | 27 | 160 | 17.5 | 36.32 | 3.5 | 13 | 8.5 |
| TCMS40-L1-S17 | 40 | 30 | 100 | 2.9 | 9.14 | 3.5 | 3 | 16.03 |
| TCMS40-L2-S17 | 40 | 30 | 100 | 3.86 | 12.19 | 3.5 | 4 | 12 |
| TCMS40-L3-S17 | 40 | 30 | 100 | 4.8 | 15.24 | 3.5 | 5 | 9.58 |
| TCMS40-L4-S17 | 40 | 30 | 100 | 5.77 | 18.29 | 3.5 | 6 | 7.99 |
| TCMS40-L5-S17 | 40 | 30 | 100 | 6.73 | 21.34 | 3.5 | 7 | 6.84 |
| TCMS40-L6-S17 | 40 | 30 | 100 | 7.7 | 24.38 | 3.5 | 8 | 6 |
| TCMS40-L7-S17 | 40 | 30 | 100 | 8.66 | 27.43 | 3.5 | 9 | 5.33 |
| TCMS40-L8-S17 | 40 | 30 | 100 | 10.59 | 33.53 | 3.5 | 11 | 4.36 |
| TCMS40-L9-S17 | 40 | 30 | 100 | 12.52 | 39.62 | 3.5 | 13 | 3.69 |
| TCMS40-M1-S17 | 40 | 30 | 150 | 5.44 | 9.14 | 3.5 | 3 | 40.54 |
| TCMS40-M2-S17 | 40 | 30 | 150 | 7.24 | 12.19 | 3.5 | 4 | 30.3 |
| TCMS40-M3-S17 | 40 | 30 | 150 | 9.04 | 15.24 | 3.5 | 5 | 24.19 |
| TCMS40-M4-S17 | 40 | 30 | 150 | 10.85 | 18.29 | 3.5 | 6 | 20.16 |
| TCMS40-M5-S17 | 40 | 30 | 150 | 12.65 | 21.34 | 3.5 | 7 | 17.26 |
| TCMS40-M6-S17 | 40 | 30 | 150 | 14.48 | 24.38 | 3.5 | 8 | 15.15 |
| TCMS40-M7-S17 | 40 | 30 | 150 | 16.28 | 27.43 | 3.5 | 9 | 13.45 |
| TCMS40-M8-S17 | 40 | 30 | 150 | 19.89 | 33.53 | 3.5 | 11 | 11 |
| TCMS40-M9-S17 | 40 | 30 | 150 | 23.5 | 39.62 | 3.5 | 13 | 9.31 |
| TCMS40-H1-S17 | 40 | 30 | 300 | 5.66 | 9.14 | 4.5 | 3 | 86.21 |
| TCMS40-H2-S17 | 40 | 30 | 300 | 7.54 | 12.19 | 4.5 | 4 | 64.52 |
| TCMS40-H3-S17 | 40 | 30 | 300 | 9.42 | 15.24 | 4.5 | 5 | 51.55 |
| TCMS40-H4-S17 | 40 | 30 | 300 | 11.33 | 18.29 | 4.5 | 6 | 43.1 |
| TCMS40-H5-S17 | 40 | 30 | 300 | 13.21 | 21.34 | 4.5 | 7 | 36.9 |
| TCMS40-H6-S17 | 40 | 30 | 300 | 15.09 | 24.38 | 4.5 | 8 | 32.29 |
| TCMS40-H7-S17 | 40 | 30 | 300 | 16.97 | 27.43 | 4.5 | 9 | 28.68 |
| TCMS40-H8-S17 | 40 | 30 | 300 | 20.75 | 33.53 | 4.5 | 11 | 23.47 |
| TCMS40-H9-S17 | 40 | 30 | 300 | 24.54 | 39.62 | 4.5 | 13 | 19.89 |
| TCMS45-L1-S17 | 45 | 35 | 110 | 3.38 | 9.91 | 3.5 | 3 | 16.85 |
| TCMS45-L2-S17 | 45 | 35 | 110 | 4.52 | 13.21 | 3.5 | 4 | 12.66 |
| TCMS45-L3-S17 | 45 | 35 | 110 | 5.64 | 16.51 | 3.5 | 5 | 10.12 |
| TCMS45-L4-S17 | 45 | 35 | 110 | 6.76 | 19.81 | 3.5 | 6 | 8.43 |
| TCMS45-L5-S17 | 45 | 35 | 110 | 7.9 | 23.11 | 3.5 | 7 | 7.23 |
| TCMS45-L6-S17 | 45 | 35 | 110 | 9.02 | 26.42 | 3.5 | 8 | 6.32 |
| TCMS45-L7-S17 | 45 | 35 | 110 | 10.16 | 29.72 | 3.5 | 9 | 5.62 |
| TCMS45-L8-S17 | 45 | 35 | 110 | 12.4 | 36.32 | 3.5 | 11 | 4.6 |
| TCMS45-L9-S17 | 45 | 35 | 110 | 14.66 | 42.93 | 3.5 | 13 | 3.89 |
| TCMS45-M1-S17 | 45 | 35 | 225 | 5.33 | 9.91 | 4.5 | 3 | 49.13 |
| TCMS45-M2-S17 | 45 | 35 | 225 | 6.99 | 13.21 | 4.5 | 4 | 36.17 |
| TCMS45-M3-S17 | 45 | 35 | 225 | 9.14 | 16.51 | 4.5 | 5 | 30.53 |
| TCMS45-M4-S17 | 45 | 35 | 225 | 10.8 | 19.81 | 4.5 | 6 | 24.97 |
| TCMS45-M5-S17 | 45 | 35 | 225 | 12.7 | 23.11 | 4.5 | 7 | 21.61 |
| TCMS45-M6-S17 | 45 | 35 | 225 | 14.48 | 26.42 | 4.5 | 8 | 18.84 |
| TCMS45-M7-S17 | 45 | 35 | 225 | 16.26 | 29.72 | 4.5 | 9 | 16.72 |
| TCMS45-M8-S17 | 45 | 35 | 225 | 19.81 | 36.32 | 4.5 | 11 | 13.63 |
| TCMS45-M9-S17 | 45 | 35 | 225 | 23.37 | 42.93 | 4.5 | 13 | 11.5 |
| TCMS45-H1-S17 | 45 | 35 | 400 | 6.43 | 9.91 | 4.5 | 3 | 114.94 |
| TCMS45-H2-S17 | 45 | 35 | 400 | 8.38 | 13.21 | 4.5 | 4 | 82.82 |
| TCMS45-H3-S17 | 45 | 35 | 400 | 11.2 | 16.51 | 4.5 | 5 | 75.33 |
| TCMS45-H4-S17 | 45 | 35 | 400 | 12.95 | 19.81 | 4.5 | 6 | 58.31 |
| TCMS45-H5-S17 | 45 | 35 | 400 | 15.37 | 23.11 | 4.5 | 7 | 51.68 |
| TCMS45-H6-S17 | 45 | 35 | 400 | 17.27 | 26.42 | 4.5 | 8 | 43.72 |
| TCMS45-H7-S17 | 45 | 35 | 400 | 19.68 | 29.72 | 4.5 | 9 | 39.88 |
| TCMS45-H8-S17 | 45 | 35 | 400 | 24.26 | 36.32 | 4.5 | 11 | 33.17 |
| TCMS45-H9-S17 | 45 | 35 | 400 | 28.45 | 42.93 | 4.5 | 13 | 27.62 |
| TCMS50-L1-S17 | 50 | 40 | 110 | 4.83 | 10.29 | 3.5 | 3 | 20.15 |
| TCMS50-L2-S17 | 50 | 40 | 110 | 6.1 | 13.72 | 3.5 | 4 | 14.44 |
| TCMS50-L3-S17 | 50 | 40 | 110 | 7.87 | 17.15 | 3.5 | 5 | 11.85 |
| TCMS50-L4-S17 | 50 | 40 | 110 | 9.4 | 20.57 | 3.5 | 6 | 9.85 |
| TCMS50-L5-S17 | 50 | 40 | 110 | 11.3 | 24 | 3.5 | 7 | 8.66 |
| TCMS50-L6-S17 | 50 | 40 | 110 | 12.7 | 27.43 | 3.5 | 8 | 7.47 |
| TCMS50-L7-S17 | 50 | 40 | 110 | 14.99 | 30.86 | 3.5 | 9 | 6.93 |
| TCMS50-L8-S17 | 50 | 40 | 110 | 18.16 | 37.72 | 3.5 | 11 | 5.62 |
| TCMS50-L9-S17 | 50 | 40 | 110 | 21.34 | 44.58 | 3.5 | 13 | 4.73 |
| TCMS50-L10-S17 | 50 | 40 | 110 | 24.64 | 51.44 | 3.5 | 15 | 4.1 |
| TCMS50-M1-S17 | 50 | 40 | 225 | 4.62 | 10.29 | 4.5 | 3 | 39.68 |
| TCMS50-M2-S17 | 50 | 40 | 225 | 6.35 | 13.72 | 4.5 | 4 | 30.53 |
| TCMS50-M3-S17 | 50 | 40 | 225 | 7.49 | 17.15 | 4.5 | 5 | 23.29 |
| TCMS50-M4-S17 | 50 | 40 | 225 | 8.89 | 20.57 | 4.5 | 6 | 19.26 |
| TCMS50-M5-S17 | 50 | 40 | 225 | 10.54 | 24 | 4.5 | 7 | 16.72 |
| TCMS50-M6-S17 | 50 | 40 | 225 | 11.89 | 27.43 | 4.5 | 8 | 14.48 |
| TCMS50-M7-S17 | 50 | 40 | 225 | 13.59 | 30.86 | 4.5 | 9 | 13.03 |
| TCMS50-M8-S17 | 50 | 40 | 225 | 16.71 | 37.72 | 4.5 | 11 | 10.71 |
| TCMS50-M9-S17 | 50 | 40 | 225 | 19.61 | 44.58 | 4.5 | 13 | 9.01 |
| TCMS50-M10-S17 | 50 | 40 | 225 | 22.48 | 51.44 | 4.5 | 15 | 7.77 |
| TCMS50-H1-S17 | 50 | 40 | 400 | 5.92 | 10.29 | 4.5 | 3 | 91.53 |
| TCMS50-H2-S17 | 50 | 40 | 400 | 7.8 | 13.72 | 4.5 | 4 | 67.57 |
| TCMS50-H3-S17 | 50 | 40 | 400 | 10.16 | 17.15 | 4.5 | 5 | 57.22 |
| TCMS50-H4-S17 | 50 | 40 | 400 | 11.79 | 20.57 | 4.5 | 6 | 45.56 |
| TCMS50-H5-S17 | 50 | 40 | 400 | 14.15 | 24 | 4.5 | 7 | 40.61 |
| TCMS50-H6-S17 | 50 | 40 | 400 | 15.62 | 27.43 | 4.5 | 8 | 33.87 |
| TCMS50-H7-S17 | 50 | 40 | 400 | 17.91 | 30.86 | 4.5 | 9 | 30.89 |
| TCMS50-H8-S17 | 50 | 40 | 400 | 21.54 | 37.72 | 4.5 | 11 | 24.72 |
| TCMS50-H9-S17 | 50 | 40 | 400 | 25.65 | 44.58 | 4.5 | 13 | 21.13 |
| TCMS50-H10-S17 | 50 | 40 | 400 | 29.21 | 51.44 | 4.5 | 15 | 17.99 |
| TCMS55-L1-S17 | 55 | 45 | 125 | 5.59 | 11.05 | 3.5 | 3 | 22.89 |
| TCMS55-L2-S17 | 55 | 45 | 125 | 7.72 | 14.73 | 3.5 | 4 | 17.83 |
| TCMS55-L3-S17 | 55 | 45 | 125 | 9.68 | 18.41 | 3.5 | 5 | 14.3 |
| TCMS55-L4-S17 | 55 | 45 | 125 | 11.48 | 22.1 | 3.5 | 6 | 11.77 |
| TCMS55-L5-S17 | 55 | 45 | 125 | 13.92 | 25.78 | 3.5 | 7 | 10.54 |
| TCMS55-L6-S17 | 55 | 45 | 125 | 15.52 | 29.46 | 3.5 | 8 | 8.97 |
| TCMS55-L7-S17 | 55 | 45 | 125 | 18.41 | 33.15 | 3.5 | 9 | 8.49 |
| TCMS55-L8-S17 | 55 | 45 | 125 | 21.67 | 40.51 | 3.5 | 11 | 6.63 |
| TCMS55-L9-S17 | 55 | 45 | 125 | 25.65 | 47.88 | 3.5 | 13 | 5.62 |
| TCMS55-L10-S17 | 55 | 45 | 125 | 29.77 | 55.25 | 3.5 | 15 | 4.91 |
| TCMS55-M1-S17 | 55 | 45 | 250 | 3.1 | 11.05 | 4.5 | 3 | 31.45 |
| TCMS55-M2-S17 | 55 | 45 | 250 | 4.11 | 14.73 | 4.5 | 4 | 23.54 |
| TCMS55-M3-S17 | 55 | 45 | 250 | 5.16 | 18.41 | 4.5 | 5 | 18.85 |
| TCMS55-M4-S17 | 55 | 45 | 250 | 6.2 | 22.1 | 4.5 | 6 | 15.72 |
| TCMS55-M5-S17 | 55 | 45 | 250 | 7.21 | 25.78 | 4.5 | 7 | 13.46 |
| TCMS55-M6-S17 | 55 | 45 | 250 | 8.26 | 29.46 | 4.5 | 8 | 11.79 |
| TCMS55-M7-S17 | 55 | 45 | 250 | 9.27 | 33.15 | 4.5 | 9 | 10.47 |
| TCMS55-M8-S17 | 55 | 45 | 250 | 11.33 | 40.51 | 4.5 | 11 | 8.57 |
| TCMS55-M9-S17 | 55 | 45 | 250 | 13.41 | 47.88 | 4.5 | 13 | 7.25 |
| TCMS55-M10-S17 | 55 | 45 | 250 | 15.47 | 55.25 | 4.5 | 15 | 6.28 |
| TCMS55-H1-S17 | 55 | 45 | 400 | 5.31 | 11.05 | 4.5 | 3 | 69.69 |
| TCMS55-H2-S17 | 55 | 45 | 400 | 7.24 | 14.73 | 4.5 | 4 | 53.4 |
| TCMS55-H3-S17 | 55 | 45 | 400 | 9.09 | 18.41 | 4.5 | 5 | 42.87 |
| TCMS55-H4-S17 | 55 | 45 | 400 | 10.64 | 22.1 | 4.5 | 6 | 34.9 |
| TCMS55-H5-S17 | 55 | 45 | 400 | 12.24 | 25.78 | 4.5 | 7 | 29.54 |
| TCMS55-H6-S17 | 55 | 45 | 400 | 14.1 | 29.46 | 4.5 | 8 | 26.04 |
| TCMS55-H7-S17 | 55 | 45 | 400 | 15.82 | 33.15 | 4.5 | 9 | 23.08 |
| TCMS55-H8-S17 | 55 | 45 | 400 | 19.3 | 40.51 | 4.5 | 11 | 18.86 |
| TCMS55-H9-S17 | 55 | 45 | 400 | 23.11 | 47.88 | 4.5 | 13 | 16.15 |
| TCMS55-H10-S17 | 55 | 45 | 400 | 26.54 | 55.25 | 4.5 | 15 | 13.93 |
| TCMS60-L1-S17 | 60 | 50 | 135 | 5.59 | 11.43 | 4.5 | 3 | 23.12 |
| TCMS60-L2-S17 | 60 | 50 | 135 | 7.47 | 15.24 | 4.5 | 4 | 17.37 |
| TCMS60-L3-S17 | 60 | 50 | 135 | 9.32 | 19.05 | 4.5 | 5 | 13.87 |
| TCMS60-L4-S17 | 60 | 50 | 135 | 11.2 | 22.86 | 4.5 | 6 | 11.58 |
| TCMS60-L5-S17 | 60 | 50 | 135 | 13.06 | 26.67 | 4.5 | 7 | 9.92 |
| TCMS60-L6-S17 | 60 | 50 | 135 | 14.94 | 30.48 | 4.5 | 8 | 8.69 |
| TCMS60-L7-S17 | 60 | 50 | 135 | 16.79 | 34.29 | 4.5 | 9 | 7.71 |
| TCMS60-L8-S17 | 60 | 50 | 135 | 20.52 | 41.91 | 4.5 | 11 | 6.31 |
| TCMS60-L9-S17 | 60 | 50 | 135 | 24.26 | 49.53 | 4.5 | 13 | 5.34 |
| TCMS60-L10-S17 | 60 | 50 | 135 | 27.99 | 57.15 | 4.5 | 15 | 4.63 |
| TCMS60-M1-S17 | 60 | 50 | 275 | 6.65 | 11.43 | 4.5 | 3 | 57.53 |
| TCMS60-M2-S17 | 60 | 50 | 275 | 8.86 | 15.24 | 4.5 | 4 | 43.1 |
| TCMS60-M3-S17 | 60 | 50 | 275 | 11.07 | 19.05 | 4.5 | 5 | 34.46 |
| TCMS60-M4-S17 | 60 | 50 | 275 | 13.28 | 22.86 | 4.5 | 6 | 28.71 |
| TCMS60-M5-S17 | 60 | 50 | 275 | 15.49 | 26.67 | 4.5 | 7 | 24.6 |
| TCMS60-M6-S17 | 60 | 50 | 275 | 17.7 | 30.48 | 4.5 | 8 | 21.52 |
| TCMS60-M7-S17 | 60 | 50 | 275 | 19.94 | 34.29 | 4.5 | 9 | 19.16 |
| TCMS60-M8-S17 | 60 | 50 | 275 | 24.36 | 41.91 | 4.5 | 11 | 15.67 |
| TCMS60-M9-S17 | 60 | 50 | 275 | 28.78 | 49.53 | 4.5 | 13 | 13.25 |
| TCMS60-M10-S17 | 60 | 50 | 275 | 33.22 | 57.15 | 4.5 | 15 | 11.49 |
| TCMS60-H1-S17 | 60 | 50 | 450 | 7.75 | 11.43 | 4.5 | 3 | 122.28 |
| TCMS60-H2-S17 | 60 | 50 | 450 | 10.31 | 15.24 | 4.5 | 4 | 91.28 |
| TCMS60-H3-S17 | 60 | 50 | 450 | 12.9 | 19.05 | 4.5 | 5 | 73.17 |
| TCMS60-H4-S17 | 60 | 50 | 450 | 15.47 | 22.86 | 4.5 | 6 | 60.89 |
| TCMS60-H5-S17 | 60 | 50 | 450 | 18.06 | 26.67 | 4.5 | 7 | 52.26 |
| TCMS60-H6-S17 | 60 | 50 | 450 | 20.62 | 30.48 | 4.5 | 8 | 45.64 |
| TCMS60-H7-S17 | 60 | 50 | 450 | 23.22 | 34.29 | 4.5 | 9 | 40.65 |
| TCMS60-H8-S17 | 60 | 50 | 450 | 28.37 | 41.91 | 4.5 | 11 | 33.23 |
| TCMS60-H9-S17 | 60 | 50 | 450 | 33.53 | 49.53 | 4.5 | 13 | 28.13 |
| TCMS60-H10-S17 | 60 | 50 | 450 | 38.68 | 57.15 | 4.5 | 15 | 24.36 |
