Stepped Ejector Pin-SKH-51/SKD-61

模具頂針

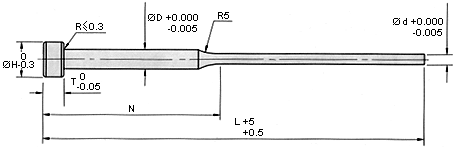

Stepped Ejector Pin

SKH-51/SKD-61

規格數據

Material : SKH-51
Hardness: HRC-58-60

H	T	D	d	L=100	L=150		L=200
H	T	D	d	N=40	N=50	N=70	N=70	N=100
3	4	1.5	0.6
3	4	1.5	0.8
3	4	1.5	1.0
4	4	2.0	0.8
4	4	2.0	0.9
4	4	2.0	1.0
4	4	2.0	1.1
4	4	2.0	1.2
4	4	2.0	1.5
5	4	2.5	0.8
5	4	2.5	1.0
5	4	2.0	1.1
5	4	2.0	1.2
5	4	2.0	1.3
5	4	2.0	1.4
5	4	2.0	1.5
6	4	3.0	1.0
6	4	3.0	1.2
6	4	3.0	1.4
6	4	3.0	1.5
7	4	4.0	1.5
7	4	4.0	2.0
7	4	4.0	2.5
7	4	4.0	3.0

Material : SKD-61
Hardness: HRC-52~54

H	T	D	d	L=100	L=150		L=200
H	T	D	d	N=40	N=50	N=70	N=70	N=100
6	4	1.5	0.6
6	4	1.5	0.8
6	4	1.5	1.0
6	4	2.0	0.8
6	4	2.0	0.9
6	4	2.0	1.0
6	4	2.0	1.1
6	4	2.0	1.2
6	4	2.0	1.5
6	4	2.5	0.8
6	4	2.5	1.0
6	4	2.0	1.1
6	4	2.0	1.2
6	4	2.0	1.3
6	4	2.0	1.4
6	4	2.0	1.5
6	4	3.0	1.0
6	4	3.0	1.2
6	4	3.0	1.4
6	4	3.0	1.5
8	4	4.0	1.5
8	4	4.0	2.0
8	4	4.0	2.5
8	4	4.0	3.0

Material : SKD-61
Core Hardness : 40~42
Surface Hardness : HV 900^o~1100^o

H	T	D	d	L=100	L=150		L=200
H	T	D	d	N=40	N=50	N=70	N=70	N=100
6	4	1.5	0.6
6	4	1.5	0.8
6	4	1.5	1.0
6	4	2.0	0.8
6	4	2.0	0.9
6	4	2.0	1.0
6	4	2.0	1.1
6	4	2.0	1.2
6	4	2.0	1.5
6	4	2.5	0.8
6	4	2.5	1.0
6	4	2.0	1.1
6	4	2.0	1.2
6	4	2.0	1.3
6	4	2.0	1.4
6	4	2.0	1.5
6	4	3.0	1.0
6	4	3.0	1.2
6	4	3.0	1.4
6	4	3.0	1.5
8	4	4.0	1.5
8	4	4.0	2.0
8	4	4.0	2.5
8	4	4.0	3.0
