The manufacturer reserves the right to modify the design, specifications, mechanisms… etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
|

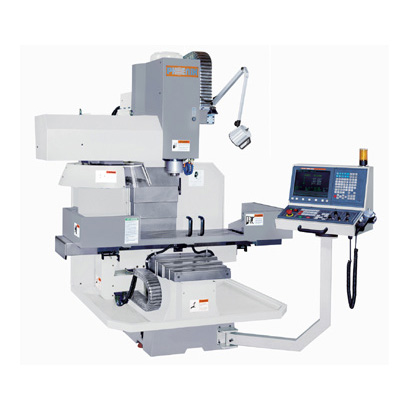

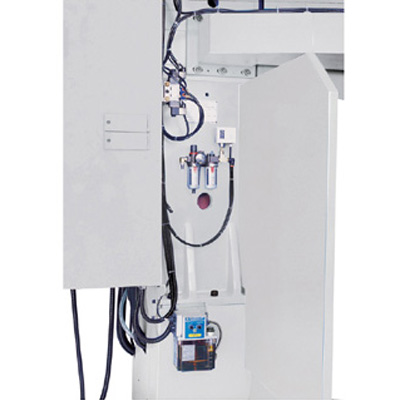

MODEL |
FM-160MH |
FM-160ATC |
|

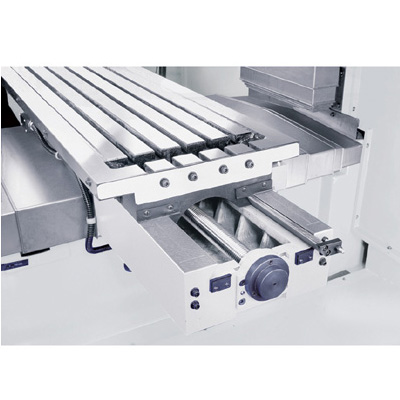

TABLE |
||
|
Working surface |
355x1270mm(14"x50") |
|
|
T-slots (size x number x pitch) |
16mmx3x64mm(0.630"x3x2.520") |
|
|
Max. table load |
500kgs(1100 lbs) |
|
|
TRAVEL |
||
|
Longitudinal travel (X axis) |
800mm(31-1/2") |
|
|
Cross travel (Y axis) |
400mm(15-3/4") |
|
|
Vertical travel (Z axis) |
450mm(17-11/16") |
|
|
Distance from spindle end to table |
105~555mm(4-1/8"~21-13/16") |
|
|
Distance from spindle center to column |
430mm(16-7/8") |
|
|
Distance from floor to table surface |
780mm(30-11/16") |
|
|

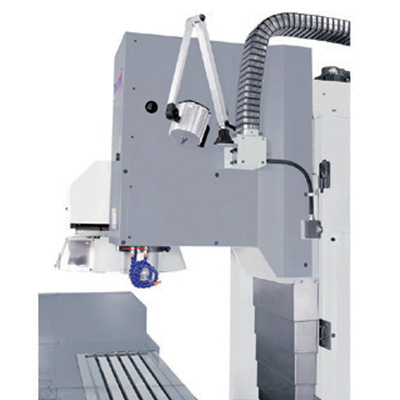

SPINDLE |
||
|
Spindle nose taper |
BT40 |
|
|
Spindle speeds |
vari 8000 r.p.m. (or 10000 r.p.m., opt.) |
|
|
FEED |
||
|
Cutting feed rate (X, Y, Z axes) |
1~3000mm/min. (max.) |
|
|
Rapid traverse (X, Y axes) |
5.0m/min. (max.) |
|
|
Rapid traverse (Z axis) |
5.0m/min. (max.) |
|
|

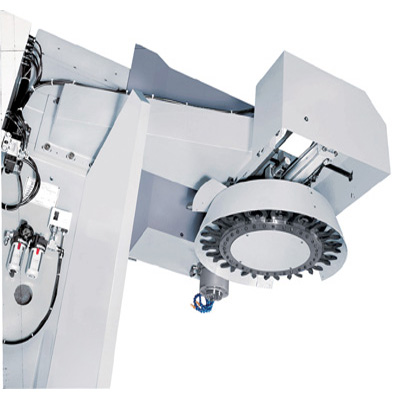

ATC |
||
|
Tool storage capacity |
— |
16pcs (carrousel) |
|
Max. tool weight |
— |
7kgs (15.4 lbs) |
|
Max. tool size (dia. x length) |
— |
89x250mm |
|
Tool selection |
— |
Random |
|
Tool shank |
— |
BT40 |
|
Pull stud bolt |
— |
MAS-P40T-1 |
|
Distance from gauge line of tool holder to table |
— |
450mm(17-5/8") |
|
MOTOR |
||
|
Spindle motor |
AC 7-1/2HP(or 10HP,opt.) |
|
|
X, Y, Z axes motor (900M) |
AC servo, 1KW, 2000 r.p.m. |
|
|
Coolant pump motor |
AC1/6HP / 1/4HP(F.E.G.) |
|
|
GENERAL |
||
|
Gross weight (Approx.) |
2800kgs (6160 lbs) |
3000kgs (6600 lbs) |
|
Packing size (LxWxH) |
2080x1800x2450mm(81-7/8"x70-7/8"x96-3/8") |
|
