產品介紹
規格數據

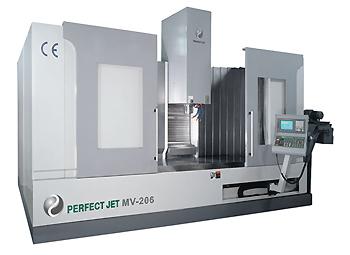

Item | MV-206/306/406/606 | |
Travel | X-axis mm | 2000/3000/4000/6000 |
Y-axis mm | 600 | |
Z-axis mm | 550 | |
Nose to table mm | 100~600 | |
Spindle | Speed range rpm | 10,000 |
Spindle taper | BT-40 | |
Spindle drive | Direct-coupled | |
Spindle motor Kw | 7.5/11 | |
ATC | Magazine capacity | 24(0pt.30/40) |
ATC typer | Arm type | |
Tool change time Sec | - | 2.5(T to T) |
Table | Table size mm | 2500x600/3500x600/4500x600/6500x600 |
T-slot(WidthxNo.xpitch) | 18x5x100 | |
Max. load(Kg) | 1000x1500x2000x2500 | |
Feed | X/Y/Z Rapid feed | 30/30/15 M/min |
X/Y/Z Motor Kw | 7/7/8 | |
Guide typer | M55 Linear | |
Tool | Tool Shank | BT.40 |
Max. tool length mm | 300 | |
Max. tool diameter mm | 80/127 | |
Max. tool weight Kg | 7 | |
Power suppply KVA | 45 | |
Power Sources | Pneumatic unit Kg/cm | 5.5~6.5 |
Coolant tank L | 450(225x2) | |
Machine weight | Net weight(Ton) | 14/18/22/30 |
Machine size | LxWxH mm | 6.2/7.2/8.2/10.2x3.4x3.1 |
● Fixed and long table design allows for long and heavy workpiece machining. | ||
● Heavy load type M55 liner ways on all axes assure maximum rigidity. | ||
● Also ideal for aluminum and compound material machining. | ||
● Rapid traverse 30 M/min. | ||
● Cutting federate 20 M/min. | ||
● Directly coupled spindle. | ||
● Fully enclosed splash guard. | ||
● Spindle oil cooler. | ||
● 4th / 5th rotary table is optional |
