Can use for 64 kinds of Refrigerants
R12, R22, R134a, R404a, R410a, R507, R718, etc.

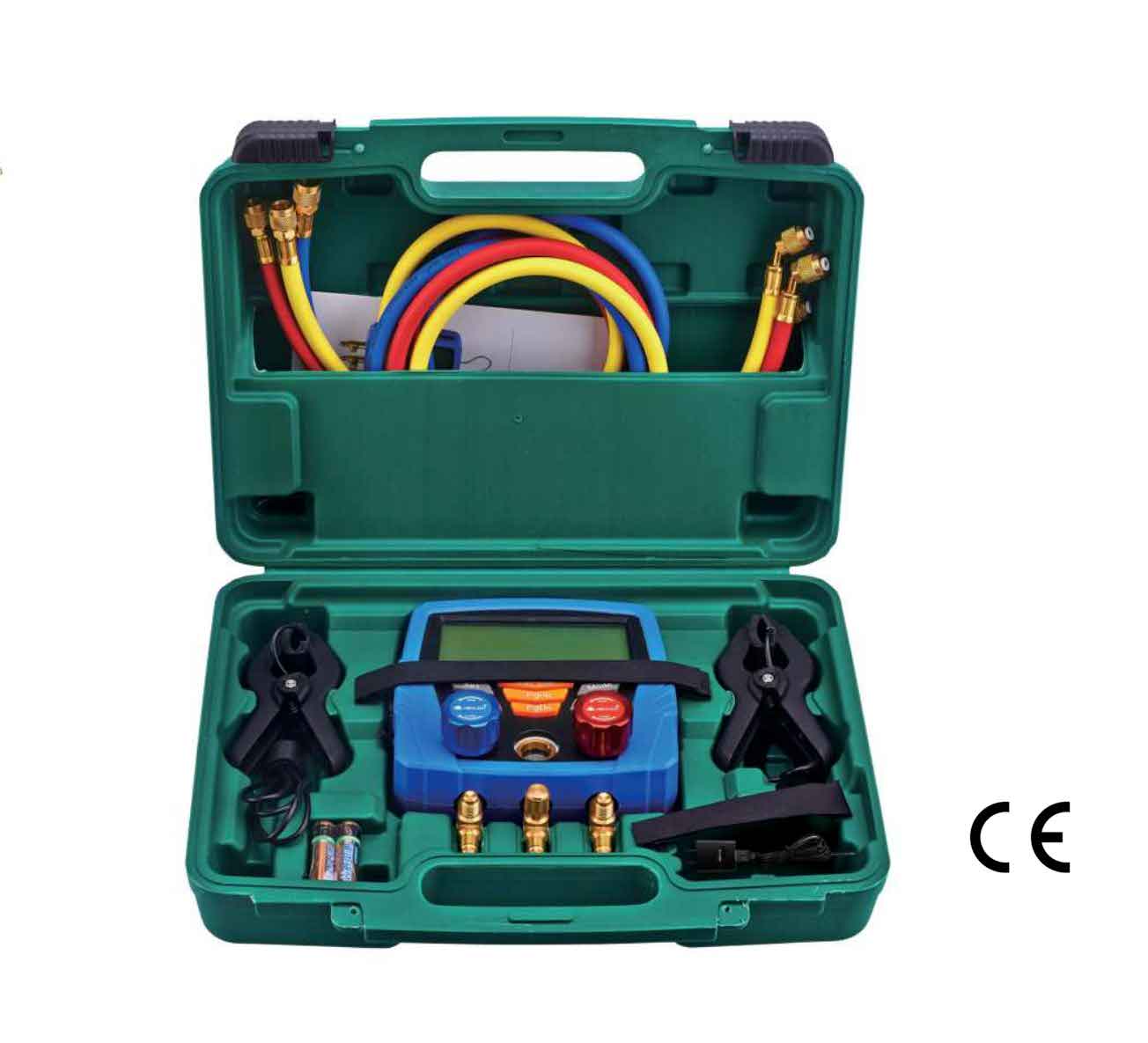

Digital Manifold Gauge set with 60" Hose

Feature

1. Large screen display of pressure and temperature.
The observation could be made from multiple angles and the data are clear at a glance.

2. The instrument housing is durable as it is protected by rubber.

3. As many as 36 refrigerant parameters are available for convenient use.

4. Micro power consumption design for a longer battery service life.

5. Various measurements such as the pressure of high and low ends, evaporation temperature,
condensation temperature, and the temperature of high andlow-pressure piping.

6. Dual-channel RT measurement can work out the superheat and supercooling.

7. Inspection for leakage of piping.

8. Examination of vacuum.
9. High-precision pressure sensors and Digital temperature sensors greatly improve accuracy and
precision.
10. Multi-mode option can be used in vacuum measurement, pipe leak detection, and routing maintenance.
11. Different pressure units (MPa, kPa, bar, psi), and temperature units (°C, °F) can be switched freely to meet
the usage.
12. It switches off automatically when the pressure is overloaded.
