產品介紹
各類絞盤
Winches (Worm Gear)
W06-920A
螺旋齒式絞盤普遍運用在飼養家禽、家畜的裝置的上升及下降
- 實心齒輪構造
- 電弧焊接高強度構造
- 加強底座
- 電著黑表面處理
- 單捲軸或雙卷軸
- 手把或勾環
規格數據
ITEM NO. | CAPACITY | GEAR RATIO | REEL | HUB DIA | N.W.(KG) | G.W.(KG) | CUFT | QTY |

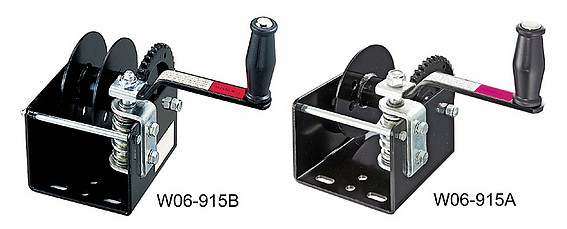

W06-915A | 1500 LBS/700 KGS | 31:1 | Single | 38mm | 24.0 | 25.0 | 1.62 | 6 |
W06-915B | 1500 LBS/700 KGS | 31:1 | Divided | 38mm | 24.0 | 25.0 | 1.62 | 6 |
W06-920A | 2000 LBS/900 KGS | 41:1 | Single | 38mm | 25.0 | 26.0 | 1.62 | 6 |
W06-920B | 2000 LBS/900 KGS | 41:1 | Divided | 38mm | 25.0 | 26.0 | 1.62 | 6 |
W06-930A | 3000 LBS/1350 KGS | 51:1 | Single | 79mm | 27.0 | 28.0 | 1.62 | 6 |
W06-930B | 3000 LBS/1350 KGS | 51:1 | Divided | 79mm | 27.0 | 28.0 | 1.62 | 6 |
