DC ／ DC Converter
Isolation Voltage 1000VDC

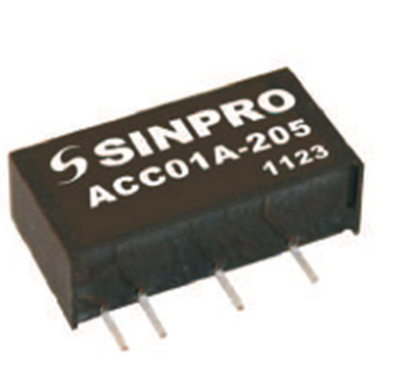

ACX01A
1W DC to DC Converter
This series of DC to DC Converter module provide 1 Watts of continues output power. They are suited for use in Data communication, Telecommunication or other Industry equipment.
規格數據
- +/- 10% Wide Input Range Voltage
- Un-Regulated Output
- Size: 6.1W x 19.5L x 10.2Hmm (For ACA01A and ACB01A) / 7.1W x 19.5L x 10.2Hmm (For ACC01A)
- 1000 VDC Isolation
- Potting Material: Epoxy (Flammability to UL94V-0)
- Case Material: Non-Conductive Black Plastic(Flammability to UL94V-0)
- Industrial Standard Pin-out
- 3 year Warranty
