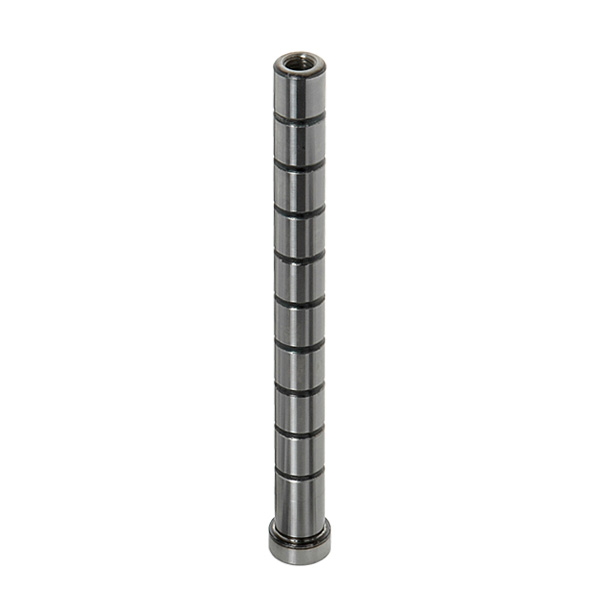

SPN SUPPORT PIN
SPN
CATEGORY：Japan
Material:SUJ-2
Heat Treatment Hardness:HRC58°~ (Medium Frequency)
Specification
|
Tolerance Chart |
| Diameter | d | d1 | D | H | M | l | ||
| Size | Tolerance | Size | Tolerance | |||||
| 12 | 12 | -0.016 -0.023 |
12 | +0.012 +0.017 |
17 | 6 | M6 | 15 |
| 16 | 16 | -0.020 -0.027 |
16 | +0.014 +0.019 |
20 | 8 | M10 | 20 |
| 20 | 20 | 20 | 25 | 10 | M12 | 25 | ||
| 25 | 25 | -0.022 -0.030 |
25 | +0.013 +0.018 |
30 | 12 | M14 | 30 |
| 30 | 30 | 30 | 35 | 14 | M16 | 35 | ||
| 35 | 35 | -0.026 -0.035 |
35 | +0.012 +0.018 |
40 | 16 | 40 | |
| 40 | 40 | 40 | 45 | 18 | ||||
| 45 | 45 | 45 | 50 | |||||
| 50 | 50 | 50 | 55 | |||||
| 60 | 60 | -0.040 -0.050 |
60 | +0.014 +0.021 |
65 | 20 | M20 | 50 |
| 70 | 70 | 70 | 75 | |||||
| 80 | 80 | 80 | 85 | 25 | M24 | 60 | ||
| ※Display Method:SPN d×L×L1=Quantity |
