Thread Grinding Machine(OD&ID)

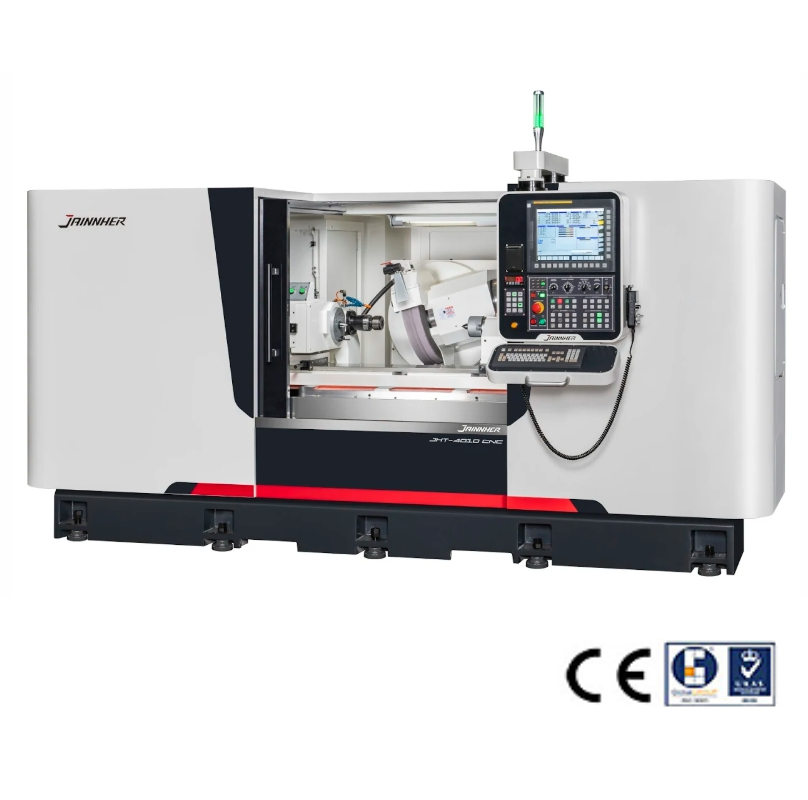

JHT-4010
JHT-4010CNC

JHT-4010 can equipped with our own develop "Smart Machine Function" With this
function the machine will automatically detect the properly grind timing according to
the different workpiece, improve the work efficiency and obtain the best accuracy after
grinding. JHT-4010 has won Taiwan Excellence Award 2020 through this smart
technology.

Feature

ㆍ Adapt hydrostatic guide way system with fast movement, low noises and low vibration benefit which is better than box and linear guide ways.
ㆍ Equipped Italian made built-in spindle of which with water cooling system for high stability. The maximum grinding wheel spindle speed is up to 3500RPM and able to carry grinding wheel OD 0510mm. The spindle could be CNC control automatic rotate +30 for thread grinding.
. With hollow hydraulic cooling system design on ball screw, to minimize thermal deformation as well to make sure machine positioning accuracy, stability and longer using life.
ㆍ JHT-4010 can equipped with our own develop "Smart Machine Function" With this function the machine will automatically detect the properly grind timing according to the different workpiece, improve the work efficiency and obtain the best accuracy after grinding.

Specification

Item Specification
Capacity OD 400x L 1000 mm
Grinding wheel size(OD x W x ID) 510x50-100x203.2mm
Grinding wheel speed 3500 RPM
Work spindle speed 10~300 RPM
Center taper MT4
Wheel spindle axial inclination CCW30°~CW30°
Work table swivel angle CCW7°~CW4°
Grinding wheel motor 30KW
Work head motor 2.7 KW
Grinding wheel feed motor 3 KW
Work table motor 3 KW
Control System FANUC 0i-TF
Machine Dimension(L x W x H) 4000x2500x2330 mm
Net weight 10000 KG
