STANDARD ACCESSORIES |
Inverter feed X,Y axis |
XY ball screw |
Vertical rapid traverse |
Coolant system |
|
SPECIFICATIONS |
UNIT: MM 60HZ |
|
ITEMS |
EZ-B820S |
|
|
TABLE |
SIZE ( LxW ) |
1270x370 |
|
T SLOT ( WxNO.x PITCH ) |
18x3x80 |
|
|
TRAVEL |
XxYxZ-MANUAL |
930x430x560 |
|
XxYxZ-AUTO |
920x410x550 |
|
|
FEED |
LONG./ MIN |
50-2200 |
|
LONG.RAPID TRAVERSE / MIN |
2200 |
|
|
CROSS / MIN |
50-2200 |
|
|
VERTICAL / MIN |
680 |
|
|
SPINDLE |
SPINDLE NOSE |
N.S.T40 |
|
STEPS |
16段變速 |
|
|
SPINDLE SPEED RPM |
70-3600 |
|
|
SWIVELLING ANGLE |
45o |
|
|
QUILL TRAVEL |
140 |
|
|
QUILL FEEDS / REV |
0.035/0.07/0.14 |
|
|
SPINDLE NOSE TO TABLE |
80-640 |
|
|
SPINDLE CENTER TO COLUMN |
450 |
|
|
MOTOR |
VERTICAL SPINDLE |
5HP-4P |
|
FEED LONG. |
1/2HP-4P-1/5 |
|
|
FEED CROSS |
1/2HP-4P-1/5 |
|
|
FEED VERTICAL |
1/2HP-4P-1/5 |
|
|
CLLOANT PUMP |
1/8 HP-2P |
|
|

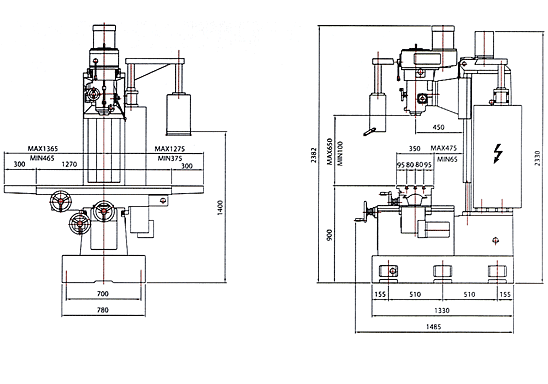

SIZE |
MACHINE ( LxWxH ) |
1870x1485x2330 |
|
NET WEIGHT (KGS) |
2550 |
|
|
※ SPECIFICATIONS MAY BE CHANGED OR IMPROVED WITHOUT NOTICE. |
||
