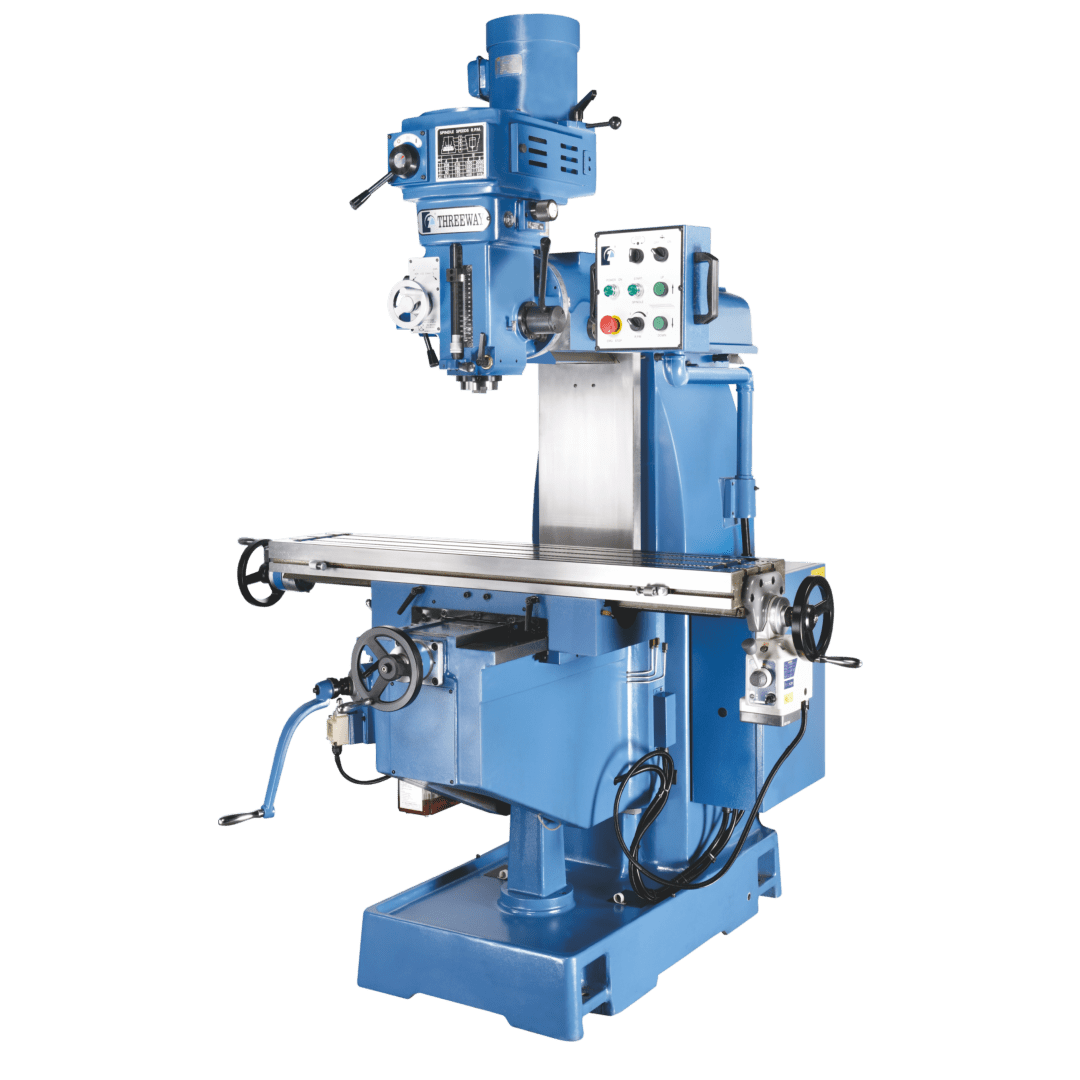

Vertical Turret Milling Machine
Vertical Turret Milling Machine
EZ-200

 STANDARD ACCESSORIES

Draw bar

Tool box

Way cover(F&R)

Vertical motorization

Electrical cabinet

Automatiec lubricator

XY ball screw

  XY-Axis turciteb



Specification

SPECIFICATIONS

UNIT: MM 60HZ

工作台

EZ-200



TABLE SURFACE

280x1320



T SLOT ( WxNO.x PITCH )

3x16



TRAVEL X/ Y/ Z

830/ 390/ 430



STRETCH TRAVEL

530



VERTICAL RAPID TRAVERSE FEED

1350



VERTICAL MOTOR-

1/2HP



SPINDLE VERTICAL TRAVEL

140



SPINDLE NOSE TO TABLE

0-515



STRETCH BOOM ATWIRL ANGULAR

Fixed



SPINDLE LONGITUDINAL ATWIRL ANGULAR

90o



SPINDLE CROSS ATWIRL ANGULAR

Fixed



SPINDLE CENTER TO COLUMN

178-730



SPINDLE MOTOR

5HP



SPINDLE NOSE

NST#40 or BT#40



QUILL FEEDS / REV

0.035-0.07-0.14



SPINDLE SPEED

75-3600 (16 Speed)
0-4000rpm (Inverter)



MACHINE SIZE

1430x1490x1970



NET WEIGHT

1850kg
