PLANO MILLING HEAD / Left Vertical Milling Head
Selection of installing the milling head.

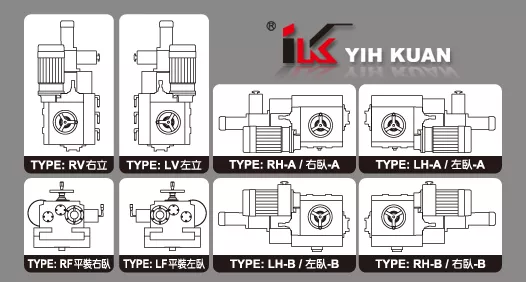

RV/LV/RH-A/LH-A/RH-B/LH-B
1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
2. It is used for mold manufacturing or precision processing.
3. The machine processing for travel is 320 mm. We also provide “No slide” format.
4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
5. Plano milling head series offer accessory head for you to optional.
It will apply for multi-angle machining to upgrade efficiency and longer machining range.
6. This product of standard motor is 10HP. We also offer 12.5HP for you to optional.
7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.
8. There are 10 models in IK Plano Milling Machine Head Series.

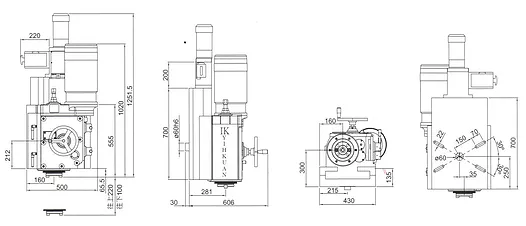

| Model | Unit | IK-610-LV | |
|---|---|---|---|
| SPINDLE | |||
| Spindle Bore Diameter | NT50 | ||
| Diameter of Spindle Nose | mm | Φ128.6 | |
| Spindle Motor | Hp | 10 / 4P | 12.5 / 4P |
| Step of Spindle Speed | stage | 6 | |
| Spindle Speed (50Hz) | rpm | 102 | 345 |
| 153 | 469 | ||
| 229 | 705 | ||
| Spindle Speed (60Hz) | rpm | 123 | 414 |
| 184 | 563 | ||
| 275 | 846 | ||
| WORKING RANGE | |||
| Max Diameter of Cutter | mm | 200 | |
| Travel | mm | 320(up 220 /down100 ) | |
| Rapid Travel AC Motor | 0.4Kw/0.5Hp AC 3 Phase 4 Poles x 1/40 |
||
| Rapid Travel Speed | mm/min | 177(50Hz) 218(60Hz) |
|
| Reversal Slide | 2mm/rev →||← 0.01mm |
||
| STANDARD ACCESSORIES | |||
| Spindle Motor | 10HP / 4P | 12.5HP / 4P | |
| ● | - | ||
| - | ● | ||
| Rapid Travel AC Motor | ● | ||
| OPTIONAL ACCESSORIES (APOLEGAMY) | |||
| Pneumatic Blade Locking Device |
○ | ||
| Bearing Guide Screw | ○ | ||
| Pneumatic Leveler | ○ | ||
| IK-A90 Angular Head | ○ | ||
| IK-D90 Deep Head | ○ | ||
| IK-U90 Universal Head | ○ | ||
| IK-U45 Universal Head | ○ | ||
| Place of Origin | Taiwan | ||
| Weight (Approximate) | kg | 530 | |
| Warranty | 1 year (non artificial mistake) | ||
