Angle head

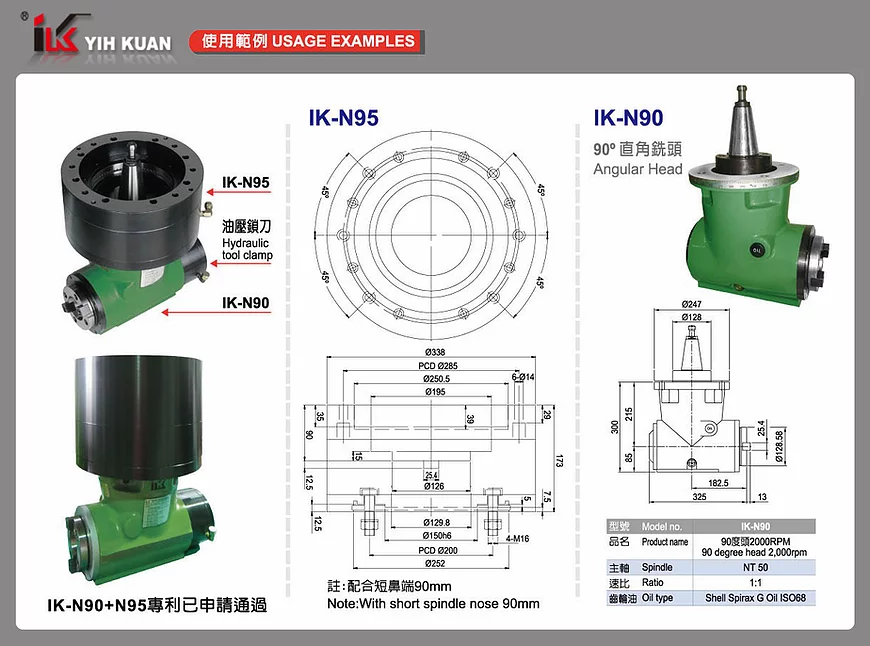

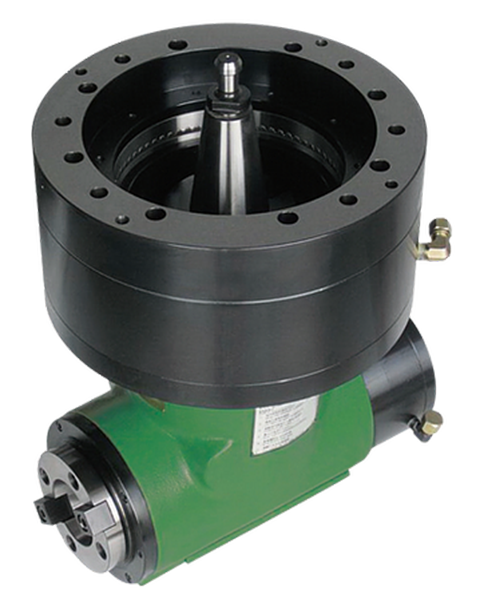

Semi-Automatic Angular Head + Position Chainring 90° Angle Head
IK-N90+N95
1. Semiautomatic processing angle head suitablel in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.
3. This product offer manual or semiautomatic two type for your optional.
4. This product offer one degree or five degree for your optional.
5. IK-N90+N95 has been applied throught the structure patents, the patents number are M446037 and
ZL 2012 2 0450246.5.
Specification

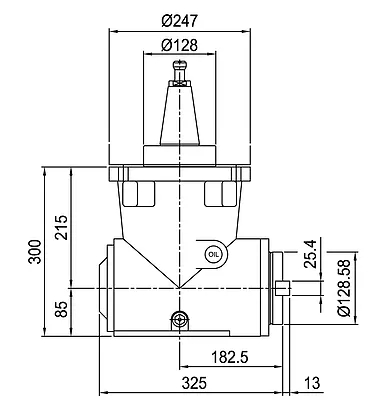

| Model | Unit | IK-N90 |
|---|---|---|
| ANGULAR HEAD | ||
| Spindle Bore Diameter | NT50 | |
| Speed Ratio | 1:1 | |
| Max Diameter of Cutter | mm | 150 |
| Max Speed | rpm | 2000 |
| Weight (Approximate) | kg | 93 |
| Oil type | Shell Spirax G Oil ISO68 | |

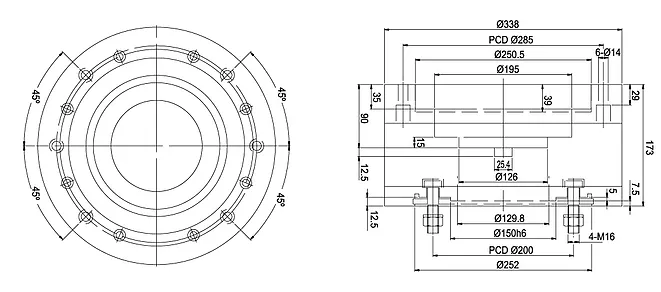

| Model | Unit | IK-N95 |
| POSITION CHAINRING | ||
| Spindle Nose | 90 / 191 mm (with spindle nose) | |
| Country of Origin | Taiwan | |
| Warranty | 1 year (non artificial mistake) | |
