Mold Ejector Pin

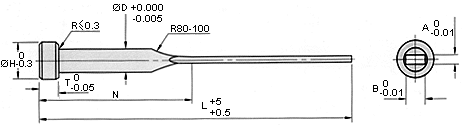

Blade Ejector Pin
SKH-51/SKD-61

Specification



Material : SKH-51
Hardness: HRC-58-60
H T D A B 100 150 200 250
N=40 N=50 N=70 N=120
3 4 1.5 0.8 0.8
3 4 1.5 0.3 1.0
3 4 1.5 0.3 1.2
4 4 2.0 0.4 1.0
4 4 2.0 0.4 1.2
4 4 2.0 0.4 1.5
5 4 2.5 0.4 2.0
6 4 3.0 0.4 2..5
7 4(6) 3.5 0.4 3.0
4 4 2.0 0.5 1.0
4 4 2.0 0.5 1.2
4 4 2.0 0.5 1.5
5 4 2.5 0.5 2.0
6 4 3.0 0.5 2.5
7 4(6) 3.5 0.5 3.0
4 4 2.0 0.6 1.0
4 4 2.0 0.6 1.2
4 4 2.0 0.6 1.5
5 4 2.5 0.6 2.0
6 4 3.0 0.6 2.5
7 4(6) 3.5 0.6 3.0
7 4(6) 4.0 0.6 3.5
4 4 2.0 0.7 1.0
4 4 2.0 0.7 1.2
4 4 2.0 0.7 1.5
5 4 2.5 0.7 2.0
6 4 3.0 0.7 2.5
7 4(6) 3.5 0.7 3.0
7 4(6) 4.0 0.7 3.5
9 4(6) 4.5 0.7 4.0
4 4 2.0 0.8 1.0
4 4 2.0 0.8 1.2
4 4 2.0 0.8 1.5
5 4 2.5 0.8 2.0
6 4 3.0 0.8 2.5
7 4(6) 4.0 0.8 3.5
9 4(6) 4.5 0.8 4.0
4 4 2.0 1.0 1.0
4 4 2.0 1.0 1.2
4 4 2.0 1.0 1.5
5 4 2.5 1.0 2.0
6 4 3.0 1.0 2.5
7 4(6) 3.5 1.0 3.0
7 4(6) 4.0 1.0 3.5
9 4(6) 4.5 1.0 4.0
10 4(6) 5.5 1.0 5.0
11 4(8) 6.5 1.0 6.0
5 4 2.5 1.2 1.5
6 4 3.0 1.2 2.0
6 4 3.0 1.2 1.5
7 4(6) 3.5 1.2 3.0
7 4(6) 4.0 1.2 3.5
9 4(6) 4.5 1.2 4.0
10 4(6) 5.5 1.2 5.0
11 4(8) 6.5 1.2 6.0
13 4(8) 7.5 1.2 7.0
13 4(8) 8.0 1.2 7.5
13 4(8) 8.5 1.2 8.0
6 4 30 1.5 2.0
7 4(6) 3.5 1.5 2.5
7 4(6) 3.5 1.5 3.0
7 4(6) 4.0 1.5 3.5
9 4(6) 4.5 1.5 4.0
10 4(6) 5.5 1.5 5.0
13 4(8) 6.5 1.5 6.0
13 4(8) 7.5 1.5 7.0
13 4(8) 8.0 1.5 7.5
13 4(8) 8.5 1.5 8.0
7 4(8) 3.5 2.0 2.5
7 4(6) 4.0 2.0 3.0
9 4(6) 4.5 2.0 3.5
9 4(6) 5.0 2.0 4.0
10 4(6) 5.5 2.0 4.5
10 4(6) 5.5 2.0 5.0
11 4(8) 6.5 2.0 6.0
13 4(8) 7.5 2.0 7.0
13 4(8) 8.0 2.0 7.5
13 4(8) 8.5 2.0 8.0
15 4(8) 10.0 2.0 9.5
15 4(8) 10.5 2.0 10.0



Material: SKD-61
Hardness: HRC 52~54
H T D A B 100 150 200 250
N=40 N=50 N=70 N=120
6 4 1.5 0.3 0.8
6 4 1.5 0.3 1.0
6 4 1.5 0.3 1.2
6 4 2.0 0.4 1.0
6 4 2.0 0.4 1.2
6 4 2.0 0.4 1.5
6 4 2.5 0.4 2.0
6 4 3.0 0.4 2..5
7 5 3.5 0.4 3.0
6 4 2.0 0.5 1.0
6 4 2.0 0.5 1.2
6 4 2.0 0.5 1.5
6 4 2.5 0.5 2.0
6 4 3.0 0.5 2.5
7 5 3.5 0.5 3.0
6 4 2.0 0.6 1.0
6 4 2.0 0.6 1.2
6 4 2.0 0.6 1.5
6 4 2.5 0.6 2.0
6 4 3.0 0.6 2.5
7 5 3.5 0.6 3.0
8 5 4.0 0.6 3.5
6 4 2.0 0.7 1.0
6 4 2.0 0.7 1.2
6 4 2.0 0.7 1.5
6 4 2.5 0.7 2.0
6 4 3.0 0.7 2.5
7 5 3.5 0.7 3.0
8 5 4.0 0.7 3.5
8 5 4.5 0.7 4.0
6 4 2.0 0.8 1.0
6 4 2.0 0.8 1.2
6 4 2.0 0.8 1.5
6 4 2.5 0.8 2.0
6 4 3.0 0.8 2.5
7 5 3.5 0.8 3.0
8 5 4.0 0.8 3.5
8 5 4.5 0.8 4.0
6 4 2.0 1.0 1.0
6 4 2.0 1.0 1.2
6 4 2.0 1.0 1.5
6 4 2.5 1.0 2.5
7 5 3.5 1.0 3.0
8 5 4.0 1.0 3.5
8 5 4.5 1.0 4.0
12 6 5.5 1.0 5.0
12 6 6.5 1.0 6.0
6 4 2.5 1.2 1.5
6 4 3.0 1.2 2.0
6 4 3..0 1.2 2.5
7 5 3.5 1.2 3.0
8 5 4.0 1.2 3.5
8 5 4.5 1.2 4.0
12 6 5.5 1.2 5.0
12 6 6.5 1.2 6.0
13 8 7.5 1.2 7.0
13 8 8.0 1.2 7.5
14 8 8.5 1.2 8.0
6 4 3.0 1.5 2.0
7 5 3.5 1.5 2.5
7 5 3.5 1.5 3.0
8 5 4.0 1.5 3.5
8 5 4.5 1.5 4.0
12 6 5.5 1.5 5.0
12 6 6.5 1.5 6.0
13 8 7.5 1.5 7.0
13 8 8.0 1.5 7.5
14 8 8.5 1.5 8.0
7 5 3.5 2.0 2.5
8 5 4.0 2.0 3.0
8 5 4.5 2.0 3.5
8 5 5.0 2.0 4.0
12 6 5.5 2.0 4.5
12 6 5.5 2.0 5.0
12 6 6.5 2.0 6.0
13 8 7.5 2.0 7.0
13 8 8.0 2.0 7.5
14 8 8.5 2.0 8.0
15 8 10.0 2.0 9.5
15 8 10.5 2.0 10.0
