Mold Ejector Pin

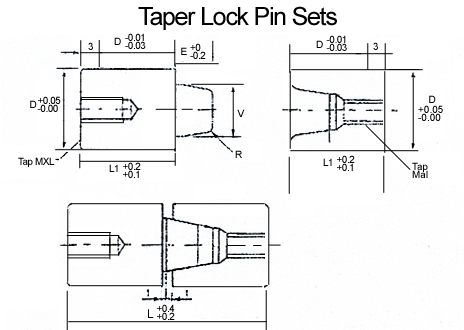

Tapper Pin Set(Round Type)
Specification
Material : SKD-11 |
HRC:58~62 |
Unit:mm |
Standard Sizes: |
|
|
Item No. |
D |
V |
E |
L1 |
L |
Mxl |
θ |
TLP |
16 |
10 |
6 |
14 |
30 |
M5 X 10 |
5 Ø |
20 |
13 |
9 |
19 |
40 |
M6 X 12 |
25 |
16 |
12 |
24 |
50 |
M8 X 16 |
30 |
20 |
15 |
29 |
60 |
M10 X 20 |
32 |
20 |
15 |
29 |
60 |
M10 X 20 |
