portable chamfering machines

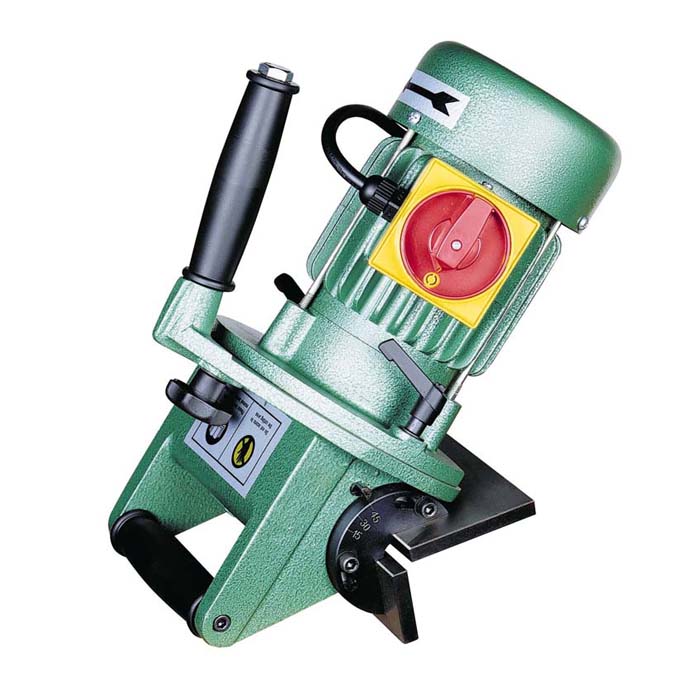

Powerful PortableChamfering Machine(1 HP)
JT-200A
1. Adopt with side mill cutting. Quick exchange for knife insert.
2. Any metal materials are available for chamfering.
3. Swivel track for adjusting, the range from angle 15° ~ 45° degree. Chamfered with side 15° ~45° degree for matching different requirement.
Specification
|
MODEL
|
JT-200A
|
|
Space requirement
|
360mm x 200mm x 260mm
|
|
N.W./G.W.
|
11kgs/13kgs
|
|
Voltage
|
220v/440v , 3 Phase; 50Hz/60Hz
|
|
Speed
|
3500r.p.m
|
|
Length of guide rails
|
200mm
|
|
Height of bevel
|
0~7mm(To process 2)
|
|
Motor
|
1HP
|
|
Packing
|
40.5cm x 30cm x 30cm
|
|
Blade Size
|
SPUN1203 x 9 pcs
|
|
Track Size
|
200mm x 78mm x 9mm,
200mm x 45mm x 9mm |
