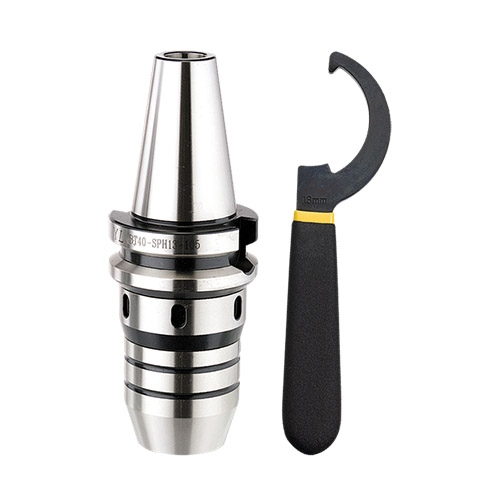

DRILL CHUCK HOLDER／ SPH
DRILL CHUCK HOLDER／ SPH
Max torque can be up to 600 kgf-cm.
The drill will not be dropped out when the main spindle of machine stops instantly.
The rotation speed can be up to 6000 RPM.
Specification

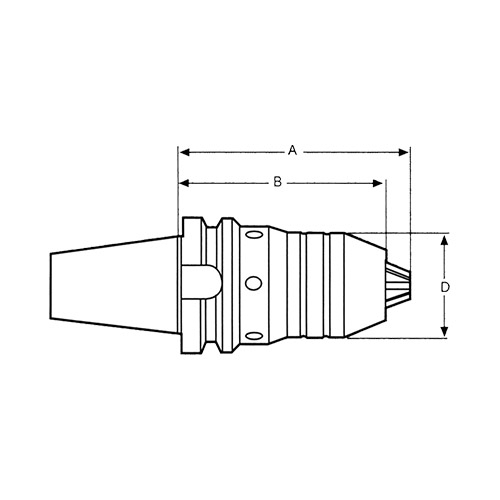

| Description/Code No. | Type | Capacity | A mm | B mm | D mm | N.W. (kg) | |
| mm | inch | ||||||
| 203008 | BT30-SPH08-80 | 0-8 | 0-5/16 | 92 | 83 | 38 | 0.9 |
| 203013 | BT30-SPH13-100 | 0-13 | 0-1/2 | 115 | 102 | 50 | 1.6 |
| 204008 | BT40-SPH08-85 | 0-8 | 0-5/16 | 96 | 87 | 38 | 1.5 |
| 204013 | BT40-SPH13-105 | 0-13 | 0-1/2 | 115 | 102 | 50 | 2.1 |
| 204016 | BT40-SPH16-110 | 3-16 | 1/8-5/8 | 122 | 109 | 57 | 2.5 |
| 205013 | BT50-SPH13-115 | 0-13 | 0-1/2 | 127 | 115 | 50 | 4.7 |
| 205016 | BT50-SPH16-120 | 3-16 | 1/8-5/8 | 133 | 120 | 57 | 5.3 |
