Features

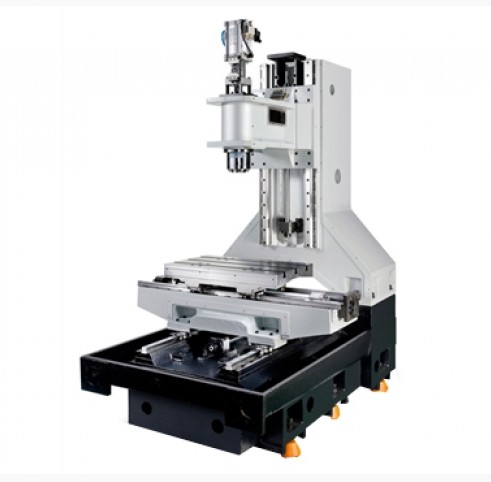

X/Y/Z axes adopt heavy duty linear ways for A type machine. It ensures the characteristics of high rigidity, low noise and low friction. High speed feed-rate and contour cutting accuracy are achieved.
A central rod guides the counterweight. It ensures no vibration effect for Z axis high speed feed-rate and cutting accuracy.

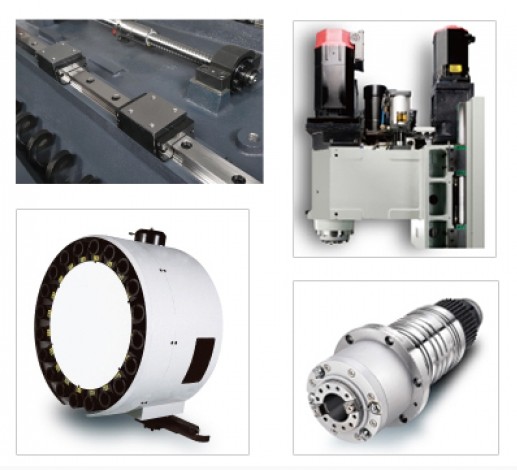

High rigid (ball-screw) provides reliable transmission for high speed processing.
Superior rigidity structural offers to achieving precision and lasting performance in heavy cutting applications.
The spindle adopts super precision angular contact ball bearings. Spindle speed 8000rpm is standard.
All WINNER’s VMC enable to do the variable type of A/D/E SERIES,which can be defined as below,
A/D/E SERIES.
A SERIES - X/Y/Z Linear guide ways.
D SERIES - X/Y/Z Box ways.
E SERIES - X/Y Linear Z-Box ways.
| MODEL | UNIT | VMC-850 | VMC-1000 |
|---|---|---|---|
| Table | |||
| Table size | mm | 1000x560 | 1150x560 |
| T slots | mm | 18x5x100 | 18x5x100 |
| Max. table loading | kg | 600 | 600 |
| Travel | |||
| X/Y/Z - axis travel | mm | 850/560/560 | 1000/600/600 |
| Spindle nose to table surface | mm | 120~680 | 120~660 |
| Spindle | |||
| Spindle transmission | Belt type | Belt type | |
| Spindle taper | BT-40 | BT-40 | |
| Spindle speed | rpm | 8000 | 8000 |
| Spindle motor | kw | 7.5/11 | 7.5/11 |
| Feed | |||
| X-Y-Z MOTOR(Fanuc) | kw | 1.8/1.8/2.5 | 1.8/1.8/2.5 |
| X-Y-Z motor(Mitsubishi) | kw | 2/2/3 | 2/2/3 |
| X-Y-Z Rapid travel | m/min | 36/36/30 | 36/36/30 |
| X-Y-Z Cutting feed rate | m/min | 10 | 10 |
| ATC System | |||
| ATC type. | Arm type | Arm type | |
| Magazine capacity | pcs | 24T | 24T |
| Max.tool diameter | Ø(mm) | Ø100 | Ø100 |
| Max.tool length | mm | 200 | 200 |
| Max.tool weight | kgs | 8 | 8 |
| Rail Type | |||
| Rail Type | - | 3-axes Linearways | A seris: 3-axes Linea guideways / E Series:Z-boxway;X-Y linearways |
| Dimensions&others | |||
| Power consumption | KVA | 15 | 15 |
| Air pressure required | kfg/CM² | 6 | 6 |
| Floor occupation | cm | 3060x310 | 306x310 |
| Machine weights | kg | 5800 | 6800 |
All specifications&design are subject to change without prior notice.
