VMC Series / Vertical Machineing Center
Linear Way Type / VMC-E1100-E1300

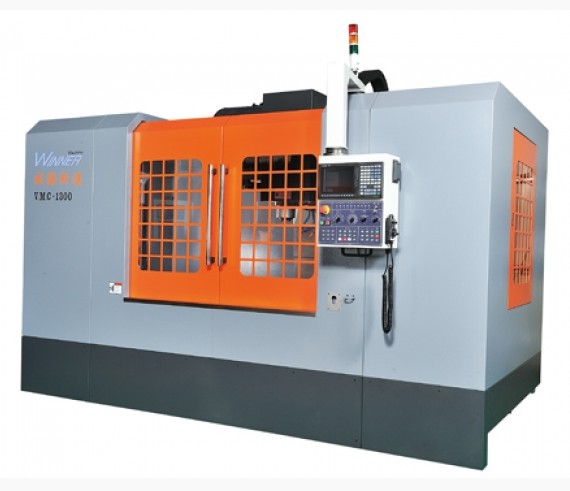

VMC-E1100-E1300

Features

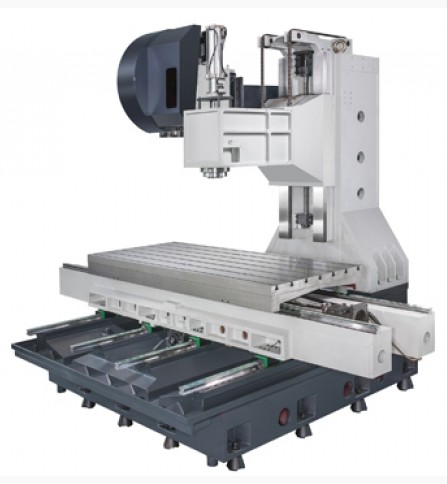

A central rod guides the counterweight. It ensures no vibration effect for Z axis high speed feed-rate and cutting accuracy.
High rigid (ball-screw) provides reliable transmission for high speed processing.
Superior rigidity structural offers to achieving precision and lasting performance in heavy cutting applications.
The spindle adopts super precision angular contact ball bearings. Spindle speed 8000rpm is standard ; 12000rpm direct-drive spindle can be optional.

Specification

Specifications

MODEL UNIT E1100 E1300
Table
Table size mm 1150x560 1500x710
T slots mm 18x5x100 18x7x100
Max. table loading kg 600 700
Travel
X/Y/Z - axis travel mm 1000/600/600 1300/700/700
Spindle nose to table surface mm 120~660 140~700
Spindle
Spindle transmission   Belt type Belt type
Spindle taper   BT-40 BT-40
Spindle speed rpm 8000 8000
Spindle motor kw 7.5/11 11/15
Feed
X-Y-Z MOTOR(Fanuc) kw 1.8/1.8/2.5 3/4/4
X-Y-Z motor(Mitsubishi) kw 2/2/3 3/3/3
X-Y-Z Rapid travel m/min 36/36/30 24/24/20
X-Y-Z Cutting feed rate m/min 10 10
ATC System
ATC type.   Arm type Arm type
Magazine capacity pcs 16T 24T
Max.tool diameter Ø(mm) Ø100 Ø100
Max.tool length mm 300 300
Max.tool weight kgs 8 10
Rail Type
Rail Type - E Series:Z-boxway;X-Y linearways/Y-axis 4 guideways
Dimensions&others
Power consumption KVA 20 25
Air pressure required kfg/CM² 6-8 6-8
Floor occupation cm 310x300x269 320x300x275
Machine weights kg 8500 8900

All specifications&design are subject to change without prior notice.
