Z Axis Setter

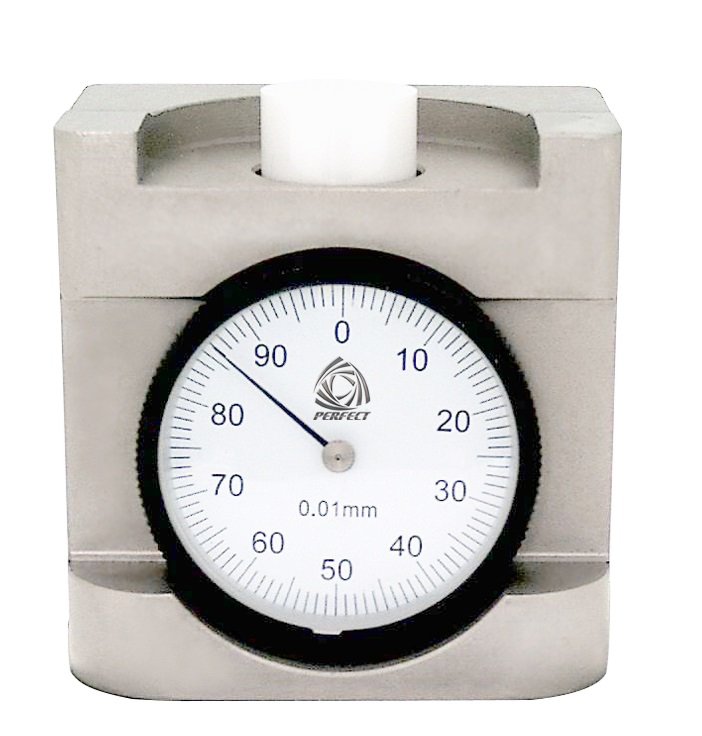

ZDE-50 Z Axis tool setter
ZDE-50 微小徑銑刀Z軸設定器

Characteristic
Model : ZDE-50

Dedicated micro setter
Model : ZDE-50

FEATURES:
1. computer milling / lathe set the knife long with.
2. Measuring Height: 50.00 ± 0.005mm.
3. Small spring force to avoid small cutter or drill fracture.
4. Easily to preset with parallel bar.
5. Minimum: 0.05mm
6. Ceramic (zirconia) buttom ( probe )

Specification

Micro-small diameter cutter dedicated Z-axis setter

TPYE

HEIGHT

WEIGHT KGS

LxWxUNIT:mm

MAGNETISM

 ZDE-50A

50.00   /+-0.005mm

0.79kgs

50x40x50

Bottom has magnet

 ZDE-50B

Bottom doesn't have magnet





      ZDE-50 Suitable 0.05mm tiny cutter dedicated





The way to use of Micro-small diameter cutter dedicated Z-axis setter :



1.Placing parallel bar on the standard plane.

2.Turn the dial indicator and make zero return to the pointer position.

3 Take away parallel bar.

4.Put the z-axis setter on the workpieces, then push the cutter forward slowly until it reaches to 0, which is the right position .
