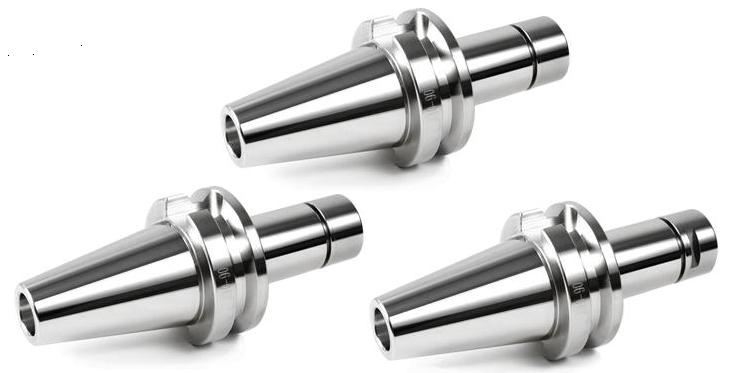

BT/SK BT-SK刀桿 銑刀夾頭

Characteristic
Model : BT/SK

Tool Holders Material :JIS SNCM220
Tool Holders Hardness : HRC 56°C ~ 58 °C
Tool Holders cementite hardness> 0.8mm
Tool Holders SK tooling systems are suitable for high speed and high precision cutting.
Special nut design provides better cutting condition and reducing cutting
vibration.
Wrench must be ordered separately.

Specification

High Speed Collet Chuck  BT/SK





TYPE

Clamping Range (d)

L

L1

Weight/kg

Dynamic balance

BT30*SK06-90L

3-6

90

70

0.70

30000RPM

BT30*SK06-120L

3-6

120

95

0.80

30000RPM

BT30*SK10-60L

3-10

60

40

0.70

30000RPM

BT30*SK10-90L

3-10

90

70

0.80

30000RPM

BT30*SK13-60L

3-13

60

40

1.10

30000RPM

BT30*SK13-90L

3-13

90

70

1.10

30000RPM

BT30*SK16-60L

3-16

60

40

0.70

30000RPM

BT30*SK16-90L

3-16

90

70

0.90

30000RPM

BT30*SK16-150L

3-16

150

130

1.30

30000RPM

TYPE

Clamping Range (d)

L

L1

Weight/kg

Dynamic balance

BT40*SK06-90L

3-6

90

70

0.70

30000RPM

BT40*SK06-120L

3-6

120

95

0.80

30000RPM

BT40*SK10-60L

3-10

60

35

1.20

25000RPM

BT40*SK10-90L

3-10

90

65

1.30

25000RPM

BT40*SK10-120L

3-10

120

95

1.50

25000RPM

BT40*SK10-150L

3-10

150

125

1.60

25000RPM

BT40*SK13-60L

3-13

60

35

1.20

25000RPM

BT40*SK13-90L

3-13

90

65

1.30

25000RPM

BT40*SK13-120L

3-13

120

95

1.60

25000RPM

BT40*SK13-150L

3-13

150

125

1.80

25000RPM

BT40*SK16-60L

3-16

60

35

1.30

25000RPM

BT40*SK16-90L

3-16

90

65

1.50

25000RPM

BT40*SK16-120L

3-16

120

95

1.90

25000RPM

BT40*SK16-150L

3-16

150

125

2.10

25000RPM

BT40*SK20-60L

3-20

60

35

1.30

25000RPM

BT40*SK20-90L

3-20

90

65

1.80

25000RPM

BT40*SK20-120L

3-20

120

95

2.40

25000RPM

BT40*SK20-150L

3-20

150

125

2.60

25000RPM

BT40*SK25-80L

3-25

80

55

1.60

25000RPM

BT40*SK25-120L

3-25

120

95

2.20

25000RPM

 TYPE

Clamping Range (d)

L

L1

Weight/kg

Dynamic balance

BT50*SK10-135L

3-10

135

100

4.15

15000RPM

BT50*SK10-150L

3-10

150

115

4.20

15000RPM

BT50*SK10-165L

3-10

165

130

4.40

15000RPM

BT50*SK16-100L

3-16

100

65

4.20

15000RPM

BT50*SK16-135L

3-16

135

100

4.55

15000RPM

BT50*SK16-150L

3-16

150

115

5.00

15000RPM

BT50*SK16-165L

3-16

165

130

5.10

15000RPM

BT50*SK20-100L

3-20

100

65

4.50

15000RPM

BT50*SK20-135L

3-20

135

100

5.00

15000RPM

BT50*SK20-150L

3-20

150

115

5.50

15000RPM

BT50*SK25-100L

3-25

100

65

4.50

15000RPM

BT50*SK25-135L

3-25

135

100

5.10

15000RPM

BT50*SK25-150L

3-25

150

115

5.30

15000RPM





High Speed Collet  SK



SK TYPE Collet



TYPE

                     Clamping Range  d

D

L

Weight(kg)

SK06-

3.0   1/8     3.5      4.0      4.5      5.0     5.5      6.0

10.0

25.0

0.01

SK10-

3.0   1/8     3.5      4.0      4.5      5.0     5.5      6.0   6.5   7.0      7.5      8.0      8.5      9.0     9.5     10.0

16.0

30.0

0.02

SK13-

3.0   1/8     3.5      4.0      4.5      5.0     5.5      6.0   6.5   7.0      7.5      8.0      8.5      9.0     9.5     10.0   11   12     13

20.0

39.0

0.04

SK16-

3.0   1/8     3.5      4.0      4.5       5.0     5.5     6.0   6.5   7.0      7.5      8.0      8.5       9.0     9.5    10.0   11    12     13   14   15     16

24.5

45.0

0.08

SK20-

6.0   8.0     10    12    14    16   18   20

29.3

50.5

0.14

SK25-

6.0   8.0     10    12    14    16   18   20    25

35.0

57.0

0.24

Collet chuck Runout-Max μ  (A:0.005mm) (AA:0.003mm)

 ~If you need AA level, please inform us clearly.~

TSK water-type collet or called water-stop collet accuracy of 0.003um AA level

TYPE

Clamping Range  d

D

L

Weight(kg)

TSK06-

3.0    1/8    3.5     4.0     4.5    5.0    5.5     6.0

10.0

25.0

0.01

TSK10-

3.0    1/8    3.5     4.0     4.5    5.0    5.5     6.0    6.5 7.0    7.5     8.0     8.5     9.0    9.5    10.0

16.0

30.0

0.02

TSK13-

3.0    1/8    3.5     4.0     4.5    5.0    5.5     6.0    6.5 7.0    7.5     8.0     8.5     9.0    9.5     10.0    11.0     12.0     13.0

20.0

39.0

0.04

TSK16-

3.0    3.5     4.0     4.5    5.0    5.5     6.0    6.5     8.0 8.5    10.0   10.5    12.0    12.5    14.0     16.0

24.5

45.0

0.08

TSK20-

6 .0    8.0    10.0    12.0    14.0    16.0   18.0   20.0

29.3

50.5

0.14



TSK water-type bobbin water test film




High Speed Collet  SK



High Speed Nut



Order no

Diameter/mm

G

Weight(kg)

NUT-SK10

29

BT30 M22x1.25

          M22x1.5P

0.05

NUT-SK13

37

          M28x1.5P

0.07

NUT-SK16

40

      M32x1.5P

0.11

NUT-SK20

50

      M40x1.5P

0.18

NUT-SK-25

56

      M45x1.5P

0.21



High Speed Wrench

 Wrench must be ordered separately.








High Speed Bearing Nut



Order no

Diameter/mm

G

Weight(kg)

BNUT-SK10

30

BT30 M22x1.25

             M22x1.5P

0.05

BNUT-SK13

35

            M28x1.5P

0.07

BNUT-SK16

40

        M32x1.5P

0.11

BNUT-SK20

50

        M40x1.5P

0.18





High Speed Bearing Wrench

  Wrench must be ordered separately.

BEARING WRENCH

Weight(kg)

BWRE-SK10

0.22

BWRE-SK13

0.25

BWRE-SK16

0.32

BWRE-SK20

0.44
