KFM 45° Face Milling Cutter
KFMC 45°

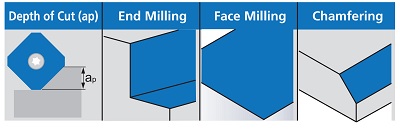

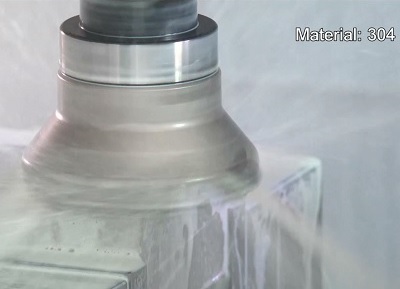

Ideal for end milling, face milling and chamfering!
Three types to choose from: with coolant holes, without coolant holes and shrink fit type.
For coolant through cutters, use FMC face mill arbor or FMA/FMB face mill arbor with washer screws changed into the ones with coolant flutes.
Shrink fit type has a smaller pilot hole to combine with face mill arbors by ShrinkFIT technology to achieve the most rigid and accurate connection.
Insert, SE..1204, is widely applied in Europe markets.
Surface treatments of nickel plating provide good corrosion and wear resistance.
Specification
KFMC 45° FACE MILLING CUTTER
| MODEL NO. | TYPE | D | D1 | d1 | L | A | ap max. |
TEETH | INSERT | Fig |
|---|---|---|---|---|---|---|---|---|---|---|
| 154.408.22.040 | KFMC45-40-22 | 40 | 40 | 22 | 40 | 10.4 | 6 | 4 | SE..1204 | 1 |
| 154.408.22.050 | KFMC45-50-22 | 50 | 48 | 22 | 40 | 10.4 | 6 | 4 | SE..1204 | 1 |
| 154.408.22.050-5T | KFMC45-50-22-5T | 50 | 48 | 22 | 40 | 10.4 | 6 | 5 | SE..1204 | 1 |
| 154.408.22.063 | KFMC45-63-22 | 63 | 48 | 22 | 40 | 10.4 | 6 | 5 | SE..1204 | 1 |
| 154.408.27.080 | KFMC45-80-27 | 80 | 48 | 27 | 50 | 12.4 | 6 | 6 | SE..1204 | 1 |
| 154.408.32.100 | KFMC45-100-32 | 100 | 78 | 32 | 50 | 14.4 | 6 | 7 | SE..1204 | 1 |
| 154.408.40.125 | KFMC45-125-40 | 125 | 89 | 40 | 63 | 16.4 | 6 | 8 | SE..1204 | 1 |
| 154.408.40.160 | KFMC45-160-40 | 160 | 89 | 40 | 63 | 16.4 | 6 | 10 | SE..1204 | 1 |
| 154.408.68.080 | KFMC45-80-25.4 | 80 | 50 | 25.4 | 50 | 9.5 | 6 | 6 | SE..1204 | 1 |
| 154.408.72.080 | KFMC45-80-31.75 | 80 | 62 | 31.75 | 50 | 12.7 | 6 | 6 | SE..1204 | 1 |
| 154.408.72.100 | KFMC45-100-31.75 | 100 | 78 | 31.75 | 50 | 12.7 | 6 | 7 | SE..1204 | 1 |
| 154.408.77.125 | KFMC45-125-38.1 | 125 | 80 | 38.1 | 63 | 15.9 | 6 | 8 | SE..1204 | 1 |
| 154.408.86.160 | KFMC45-160-50.8 | 160 | 98 | 50.8 | 63 | 19.45 | 6 | 10 | SE..1204 | 2 |
| 154.408.84.200 | KFMC45-200-47.625 | 200 | 128.75 | 47.625 | 63 | 25.4 | 6 | 12 | SE..1204 | 2 |
ACCESSORIES:
| INSERT | INSERT SCREW | WRENCH |
|---|---|---|
| SE..1204 | M5-11-7.0-55 | T20 |
