Products

Cutting Tool

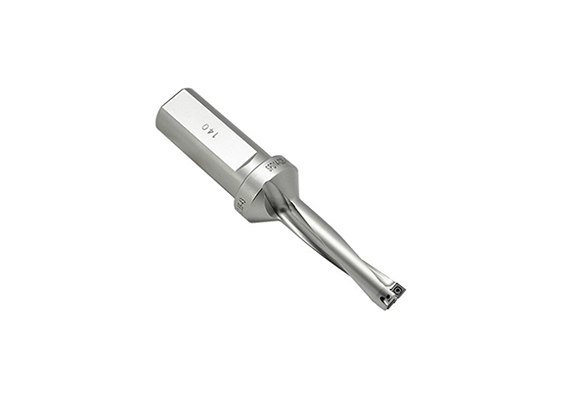

SPD Indexable High Speed Drill
SPD

● Used with side lock end mill holders.
● Available in 3xD, 4xD and 5xD, drilling range is from13 to 50mm in diameters.
● Made of anti-vibration tool steels, high rigidity and longer tool life.
● Finish machining after pre- hardening to improve rigidity and stability, preventing from deformation.
● Surface treatments of nickel plating provide good corrosion and wear resistance.
● Inserts, SP.., need to be purchased separately.

Specification

proimages/Products/Cutting_tools/High_speed_drill/SPD/SPD_feature.jpg

INDEXABLE HIGH SPEED DRILL

proimages/Products/Cutting_tools/High_speed_drill/SPD/SPD_figure.jpg



MODEL NO. TYPE D d1 L l1 l2 l3 INSERT
156.685.1325.039 SPD13-C25-3D-39L 25 13 119 63 44 39 SP..0502
156.685.1425.042 SPD14-C25-3D-42L 25 14 122 66 47 42 SP..0502
156.685.1525.045 SPD15-C25-3D-45L 25 15 125 69 50 45 SP..0502
156.685.1625.048 SPD16-C25-3D-48L 25 16 130 74 53 48 SP..0602
156.685.1725.051 SPD17-C25-3D-51L 25 17 133 77 56 51 SP..0602
156.685.1825.054 SPD18-C25-3D-54L 25 18 136 80 59 54 SP..0602
156.685.1925.057 SPD19-C25-3D-57L 25 19 139 83 62 57 SP..0602
156.685.2025.060 SPD20-C25-3D-60L 25 20 142 86 65 60 SP..0602
156.685.2125.063 SPD21-C25-3D-63L 25 21 145 89 68 63 SP..0602
156.685.2225.066 SPD22-C25-3D-66L 25 22 154 94 71 66 SP..07T3
156.685.2332.069 SPD23-C32-3D-69L 32 23 157 97 74 69 SP..07T3
156.685.2432.072 SPD24-C32-3D-72L 32 24 160 100 77 72 SP..07T3
156.685.2532.075 SPD25-C32-3D-75L 32 25 163 103 80 75 SP..07T3
156.685.2632.078 SPD26-C32-3D-78L 32 26 166 106 83 78 SP..07T3
156.685.2732.081 SPD27-C32-3D-81L 32 27 169 109 86 81 SP..07T3
156.685.2832.084 SPD28-C32-3D-84L 32 28 174 114 89 84 SP..0904
156.685.2932.087 SPD29-C32-3D-87L 32 29 177 117 92 87 SP..0904
156.685.3032.090 SPD30-C32-3D-90L 32 30 180 120 95 90 SP..0904
156.685.3132.093 SPD31-C32-3D-93L 32 31 183 123 98 93 SP..0904
156.685.3232.096 SPD32-C32-3D-96L 32 32 186 126 101 96 SP..0904
156.685.3332.099 SPD33-C32-3D-99L 32 33 189 129 104 99 SP..0904
156.685.3432.102 SPD34-C32-3D-102L 32 34 192 132 107 102 SP..1104
156.685.3532.105 SPD35-C32-3D-105L 32 35 195 135 110 105 SP..1104
156.685.3632.108 SPD36-C32-3D-108L 32 36 198 138 113 108 SP..1104
156.685.3732.111 SPD37-C32-3D-111L 32 37 201 141 116 111 SP..1104
156.685.3832.114 SPD38-C32-3D-114L 32 38 204 144 119 114 SP..1104
156.685.3932.117 SPD39-C32-3D-117L 32 39 207 147 122 117 SP..1104
156.685.4040.120 SPD40-C40-3D-120L 40 40 224 154 125 120 SP..1104
156.685.4140.123 SPD41-C40-3D-123L 40 41 227 157 128 123 SP..1104
156.685.4240.126 SPD42-C40-3D-126L 40 42 230 160 131 126 SP..1405
156.685.4340.129 SPD43-C40-3D-129L 40 43 233 163 134 129 SP..1405
156.685.4440.132 SPD44-C40-3D-132L 40 44 236 166 137 132 SP..1405
156.685.4540.135 SPD45-C40-3D-135L 40 45 239 169 140 135 SP..1405
156.685.4640.138 SPD46-C40-3D-138L 40 46 242 172 143 138 SP..1405
156.685.4740.141 SPD47-C40-3D-141L 40 47 245 175 146 141 SP..1405
156.685.4840.144 SPD48-C40-3D-144L 40 48 248 178 149 144 SP..1405
156.685.4940.147 SPD49-C40-3D-147L 40 49 251 181 152 147 SP..1405
156.685.5040.150 SPD50-C40-3D-150L 40 50 254 184 155 150 SP..1405
156.685.13525.40.5 SPD13.5-C25-3D-40.5L 25 13.5 120.5 64.5 45.5 40.5 SP..0502
156.685.14525.43.5 SPD14.5-C25-3D-43.5L 25 14.5 123.5 67.5 48.5 43.5 SP..0502
156.685.15525.46.5 SPD15.5-C25-3D-46.5L 25 15.5 128.5 72.5 51.5 46.5 SP..0602
156.685.16525.49.5 SPD16.5-C25-3D-49.5L 25 16.5 1313.5 75.5 54.5 49.5 SP..0602
156.685.17525.52.5 SPD17.5-C25-3D-52.5L 25 17.5 134.5 78.5 57.5 52.5 SP..0602
156.685.18525.55.5 SPD18.5-C25-3D-55.5L 25 18.5 137.5 81.5 60.5 55.5 SP..0602
156.685.19525.58.5 SPD19.5-C25-3D-58.5L 25 19.5 140.5 84.5 63.5 58.5 SP..0602
156.685.20525.61.5 SPD20.5-C25-3D-61.5L 25 20.5 143.5 87.5 66.5 61.5 SP..0602
156.685.21525.64.5 SPD21.5-C25-3D-64.5L 25 21.5 146.5 90.5 69.5 64.5 SP..0602
156.685.22532.67.5 SPD22.5-C32-3D-67.5L 32 22.5 155.5 95.5 72.5 67.5 SP..07T3
156.685.23532.70.5 SPD23.5-C32-3D-70.5L 32 23.5 158.5 98.5 75.5 70.5 SP..07T3
156.685.24532.73.5 SPD24.5-C32-3D-73.5L 32 24.5 161.5 101.5 78.5 73.5 SP..07T3
156.685.25532.76.5 SPD25.5-C32-3D-76.5L 32 25.5 164.5 104.5 81.5 76.5 SP..07T3
156.685.26532.79.5 SPD26.5-C32-3D-79.5L 32 26.5 167.5 107.5 84.5 79.5 SP..07T3
156.685.27532.82.5 SPD27.5-C32-3D-82.5L 32 27.5 170.5 110.5 87.5 82.5 SP..07T3
156.685.28532.85.5 SPD28.5-C32-3D-85.5L 32 28.5 175.5 115.5 90.5 85.5 SP..0904
156.685.29532.88.5 SPD29.5-C32-3D-88.5L 32 29.5 178.5 118.5 93.5 88.5 SP..0904
156.685.30532.91.5 SPD30.5-C32-3D-91.5L 32 30.5 181.5 121.5 96.5 91.5 SP..0904
156.685.31532.94.5 SPD31.5-C32-3D-94.5L 32 31.5 184.5 124.5 99.5 94.5 SP..0904
156.685.32532.97.5 SPD32.5-C32-3D-97.5L 32 32.5 187.5 127.5 102.5 97.5 SP..0904
156.685.33532.100.5 SPD33.5-C32-3D-100.5L 32 33.5 190.5 130.5 105.5 100.5 SP..0904
156.685.1325.052 SPD13-C25-4D-52L 25 13 132 76 57 52 SP..0502
156.685.1425.056 SPD14-C25-4D-56L 25 14 136 80 61 56 SP..0502
156.685.1525.060 SPD15-C25-4D-60L 25 15 140 84 65 60 SP..0502
156.685.1625.064 SPD16-C25-4D-64L 25 16 146 90 69 64 SP..0602
156.685.1725.068 SPD17-C25-4D-68L 25 17 150 94 73 68 SP..0602
156.685.1825.072 SPD18-C25-4D-72L 25 18 154 98 77 72 SP..0602
156.685.1925.076 SPD19-C25-4D-76L 25 19 158 102 81 76 SP..0602
156.685.2025.080 SPD20-C25-4D-80L 25 20 162 106 85 80 SP..0602
156.685.2125.084 SPD21-C25-4D-84L 25 21 166 110 89 84 SP..0602
156.685.2232.088 SPD22-C32-4D-88L 32 22 176 116 93 88 SP..07T3
156.685.2332.092 SPD23-C32-4D-92L 32 23 180 120 97 92 SP..07T3
156.685.2432.096 SPD24-C32-4D-96L 32 24 184 124 101 96 SP..07T3
156.685.2532.100 SPD25-C32-4D-100L 32 25 188 128 105 100 SP..07T3
156.685.2632.104 SPD26-C32-4D-104L 32 26 192 132 109 104 SP..07T3
156.685.2732.108 SPD27-C32-4D-108L 32 27 196 136 113 108 SP..07T3
156.685.2832.112 SPD28-C32-4D-112L 32 28 202 142 117 112 SP..0904
156.685.2932.116 SPD29-C32-4D-116L 32 29 206 146 121 116 SP..0904
156.685.3032.120 SPD30-C32-4D-120L 32 30 210 150 125 120 SP..0904
156.685.3132.124 SPD31-C32-4D-124L 32 31 214 154 129 124 SP..0904
156.685.3232.128 SPD32-C32-4D-128L 32 32 218 158 133 128 SP..0904
156.685.3332.132 SPD33-C32-4D-132L 32 33 222 162 137 132 SP..0904
156.685.3432.136 SPD34-C32-4D-136L 32 34 226 166 141 136 SP..1104
156.685.3532.140 SPD35-C32-4D-140L 32 35 230 170 145 140 SP..1104
156.685.3632.144 SPD36-C32-4D-144L 32 36 234 174 149 144 SP..1104
156.685.3732.148 SPD37-C32-4D-148L 32 37 238 178 153 148 SP..1104
156.685.3832.152 SPD38-C32-4D-152L 32 38 2424 182 157 152 SP..1104
156.685.3932.156 SPD39-C32-4D-156L 32 39 246 186 161 156 SP..1104
156.685.4040.160 SPD40-C40-4D-160L 40 40 264 194 165 160 SP..1405
156.685.4140.164 SPD41-C40-4D-164L 40 41 268 198 169 164 SP..1405
156.685.4240.168 SPD42-C40-4D-168L 40 42 272 202 173 168 SP..1405
156.685.4340.172 SPD43-C40-4D-172L 40 43 276 206 177 172 SP..1405
156.685.4440.176 SPD44-C40-4D-176L 40 44 280 210 181 176 SP..1405
156.685.4540.180 SPD45-C40-4D-180L 40 45 284 214 185 180 SP..1405
156.685.4640.184 SPD46-C40-4D-184L 40 46 288 218 189 184 SP..1405
156.685.4740.188 SPD47-C40-4D-188L 40 47 292 222 193 188 SP..1405
156.685.4840.192 SPD48-C40-4D-192L 40 48 296 226 197 192 SP..1405
156.685.4940.196 SPD49-C40-4D-196L 40 49 300 230 201 196 SP..1405
156.685.5040.200 SPD50-C40-4D-200L 40 50 304 234 205 200 SP..1405
156.685.1625.080 SPD16-C25-5D-80L 25 16 162 106 85 80 SP..0602
156.685.1725.085 SPD17-C25-5D-85L 25 17 167 111 90 85 SP..0602
156.685.1825.090 SPD18-C25-5D-90L 25 18 172 116 95 90 SP..0602
156.685.1925.095 SPD19-C25-5D-95L 25 19 177 121 100 95 SP..0602
156.685.2025.100 SPD20-C25-5D-100L 25 20 187 131 110 105 SP..0602
156.685.2125.105 SPD21-C25-5D-105L 25 21 187 131 110 105 SP..0602
156.685.2232.110 SPD22-C32-5D-110L 32 22 198 138 115 110 SP..07T3
156.685.2332.115 SPD23-C32-5D-115L 32 23 203 143 120 115 SP..07T3
156.685.2432.120 SPD24-C32-5D-120L 32 24 208 148 125 120 SP..07T3
156.685.2532.125 SPD25-C32-5D-125L 32 25 213 153 130 125 SP..07T3
156.685.2632.130 SPD26-C32-5D-130L 32 26 218 158 135 130 SP..07T3
156.685.2732.135 SPD27-C32-5D-135L 32 27 223 163 140 135 SP..07T3
156.685.2832.140 SPD28-C32-5D-140L 32 28 230 170 147 140 SP..0904
156.685.2932.145 SPD29-C32-5D-145L 32 29 235 175 152 145 SP..0904
156.685.3032.150 SPD30-C32-5D-150L 32 30 240 180 157 150 SP..0904
156.685.3132.155 SPD31-C32-5D-155L 32 31 245 185 162 155 SP..0904
156.685.3232.160 SPD32-C32-5D-160L 32 32 250 190 167 160 SP..0904
156.685.3332.165 SPD33-C32-5D-165L 32 33 255 195 172 165 SP..0904
156.685.3432.170 SPD34-C32-5D-170L 32 34 260 200 177 170 SP..1104
156.685.3532.175 SPD35-C32-5D-175L 32 35 265 205 182 175 SP..1104
156.685.3632.180 SPD36-C32-5D-180L 32 36 270 210 187 180 SP..1104
156.685.3732.185 SPD37-C32-5D-185L 32 37 275 215 192 185 SP..1104
156.685.3832.190 SPD38-C32-5D-190L 32 38 280 220 197 190 SP..1104
156.685.3932.195 SPD39-C32-5D-195L 32 39 285 225 202 195 SP..1104
156.685.4032.200 SPD40-C32-5D-200L 32 40 304 244 221 200 SP..1104
156.685.4132.205 SPD41-C32-5D-205L 32 41 309 249 226 205 SP..1104


ACCESSORIES:

INSERT INSERT SCREW WRENCH
SP..0502 M2-4.3-2.7-60 T6
SP..0602 M2.2-5.2-3.1-60 T7
SP..07T3 M2.5-6.33-3.5-48 T8
SP..0904 M3.5-8.4-5.0-60 T10
SP..1104 M4-9.35-5.65-60 T15
SP..1405 M5-12.8-7.0-60 T20
