Boring Head
Silent Damping Genius For Boring
SDG
Anti-vibration

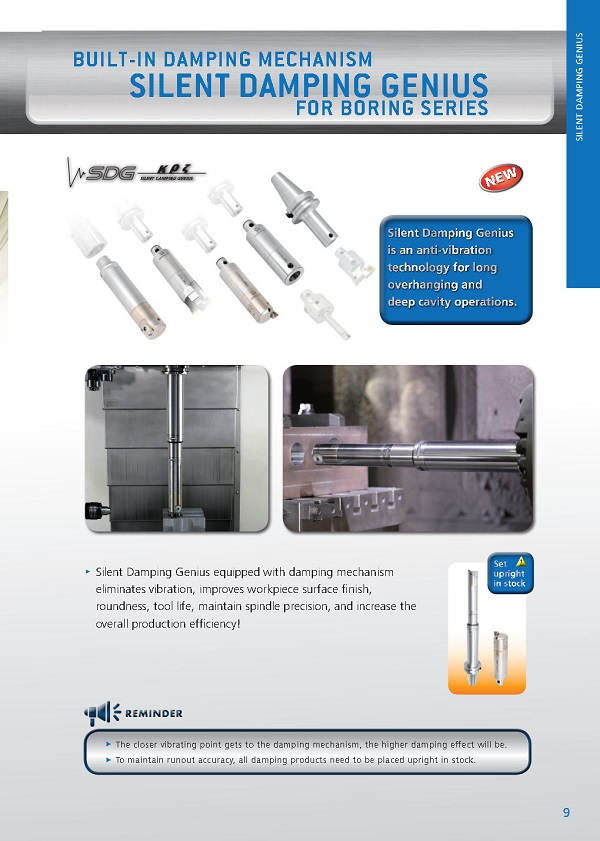

● SDG is an anti-vibration technology for long overhanging and deep cavity operations.
● It improves workpiece surface finish, roundness and the overall production efficiency.
● The closer vibrating point gets to the damping mechanism, the high damping effect will be.
Specification
PSC/PMB-DP DAMPING FINISH BORING HEAD
| MODEL NO. | TYPE | BORING AND PROCESSING AT FRONT | BORING AND PROCESSING AT BACK | |||||
|---|---|---|---|---|---|---|---|---|
| BORING RANGE | L | l1 | BORING RANGE | l2 | l3 | d1 | ||
| 140.657.32V.115 | PSC32 x PMB32DP - 115 | 32 ~ 42 | 115 | 110 | - | 90 | 25 | 16 |
| 41 ~ 51 | 115 | 110 | 46 ~ 51 | 90 | 25 | 16 | ||
| 50 ~ 60 | 115 | 110 | 50 ~ 60 | 90 | 25 | 16 | ||
| 141.657.41V.125 | PSC40 x PMB41DP - 125 | 41 ~ 54 | 125 | 121 | - | 96 | 29 | 20 |
| 50 ~ 63 | 125 | 121 | 53 ~ 63 | 96 | 29 | 20 | ||
| 61 ~ 74 | 125 | 121 | 61 ~ 74 | 96 | 29 | 20 | ||
| 142.657.53V.150 | PSC50 x PMB53DP - 150 | 53 ~ 70 | 150 | 146 | 62 ~ 70 | 116 | 34 | 25.5 |
| 65 ~ 82 | 150 | 146 | 65 ~ 82 | 116 | 34 | 25.5 | ||
| 78 ~ 95 | 150 | 146 | 78 ~ 95 | 116 | 34 | 25.5 | ||
| 143.657.68V.190 | PSC63 x PMB68DP - 190 | 68 ~ 100 | 190 | 186.2 | 80 ~ 100 | 114.8 | 45.2 | 32.5 |
| 94 ~ 126 | 190 | 186.2 | 94 ~ 126 | 114.8 | 45.2 | 32.5 | ||
| 118 ~ 150 | 190 | 186.2 | 118 ~ 150 | 114.8 | 45.2 | 32.5 | ||
