High Speed Microscopic Processing Machine
High Speed Microscopic Processing Machine

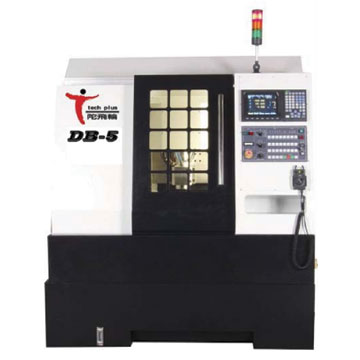

DB-5


  1. MITSUBISHI M70 high-level control system

    1. Three-axis, low-inertia, high-torque motor to do three-axis control, three-axis simultaneous engraving and milling

    2. Ultimate PLC human machine interface detect and display each warning message

    3. G05.1Q1 High-speed & high-precision function

  2. 36000RPM built-in high-speed spindle, high-rigidity, high-speed design, with efficiency and the best production

  3. Patented automatic tool changing system, providing accurate tool Automatic Tool Changer and accurate repeat positioning

  4. Full casting body, providing a stable machining process, tool life and processing efficiency of leading the industry, processing more that near non-cleaved edge of the grinding edge

  5. 90° vertical X-axis structure and anti-standard Z-axis, match vertical beams structural rigidity better than double column ones, provide stable and lightweight performance, effectively inhibit the resonance, arrive at the best cutting surface, extending tool life

  6. Each axis is allocated 4 precision bearings, backlash error tends to zero after pre-loading pre-tension precision screw

  7. Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)

  8. Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life

  9. Rear flush design, which can effectively remove iron filings and easy to clean

  10. Oil-Mist filtration system can absorb and filter in the process of cutting oil mist generated in line with environmental protection and personal security

  11. Oil-water separation system, cutting fluid and orbital separation of the oil so that dry machining objects and cutting fluid from oil pollution, increase the service life of cutting fluid

  12. Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts

  13. Automatic tool measurement system designed to do tool length correction, so that processing object to achieve the most accurate

  14. Isolated fully Enclosed Splash Guard, ergonomic, and to ensure non-leakage cutting fluid and gas doesn't spill, keep the factory clean and in a high degree of personnel safety

  15. BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards



Specification


Model / Spec.DB - 5
ControllerMITSUBISHI M70
SystemWinCE
EthernetRS232 / RJ45
X.Y.Z Travel520*420*200 mm
X.Y.Z Rapid Traverse20000 mm/min
Spindle Nose to Table75 - 275 mm
Spindle Speed36000 rpm
Spindle Motor5 kw
Spindle TaperHSK-E32
ATC8
Table Size420*500 mm
Max. Loading300 kgs
T-Slot12*4*100 mm
Machine Size1700*1750*1900 mm
Machine Weight2650 kgs
Power10 kv
Air6 kgs/cm2
Minimum drilling capacity0.05mm / s45c / 1.5mm
