MITSUBISHI M70 High-level control system

Dual-Spindle design: Build-in High Speed Spindle for 60000RPM and 12000RPM, high-rigidity, high-speed design

Patented Auto Tool Changing Device provide precise repeat positioning. Multi-process workpiece completed in one time, avoid workpiece moving. Yield rate and efficiency are improved.

Full casting body, providing a stable machining process and tool life. Processing efficiency in the lead of the industry, complete nearly non-cleaved grinding edge

90° vertical X-axis structure and anti-standard Z-axis, match vertical beams structural rigidity better than double column ones, provide stable and lightweight performance, effectively inhibit the resonance, arrive at the best cutting surface, extending tool life

Each axis equipped 4 precision bearings, backlash error tends to zero after pre-loading pre-tension precision screw

Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)

Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life

Cutting liquid and rail oil are separated by Oil Separation System. It brings no pollution to workpiece and extend cutting liquid life time

Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts

Automatic tool measurement system designed to do tool length correction, so that processing object to achieve the best accuracy

BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards

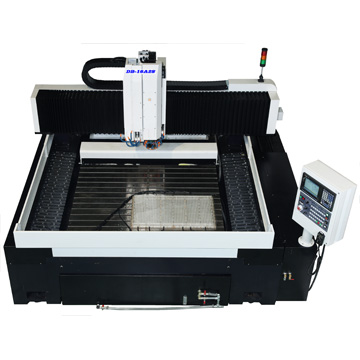

This model adopted Moveable Double Column Dual-Servo-Motor Simultaneous Rotating. It decrease the loading space of machine.
