CNC Circular Saw blade Sharpening Machine
CNC Saw Blade Machine

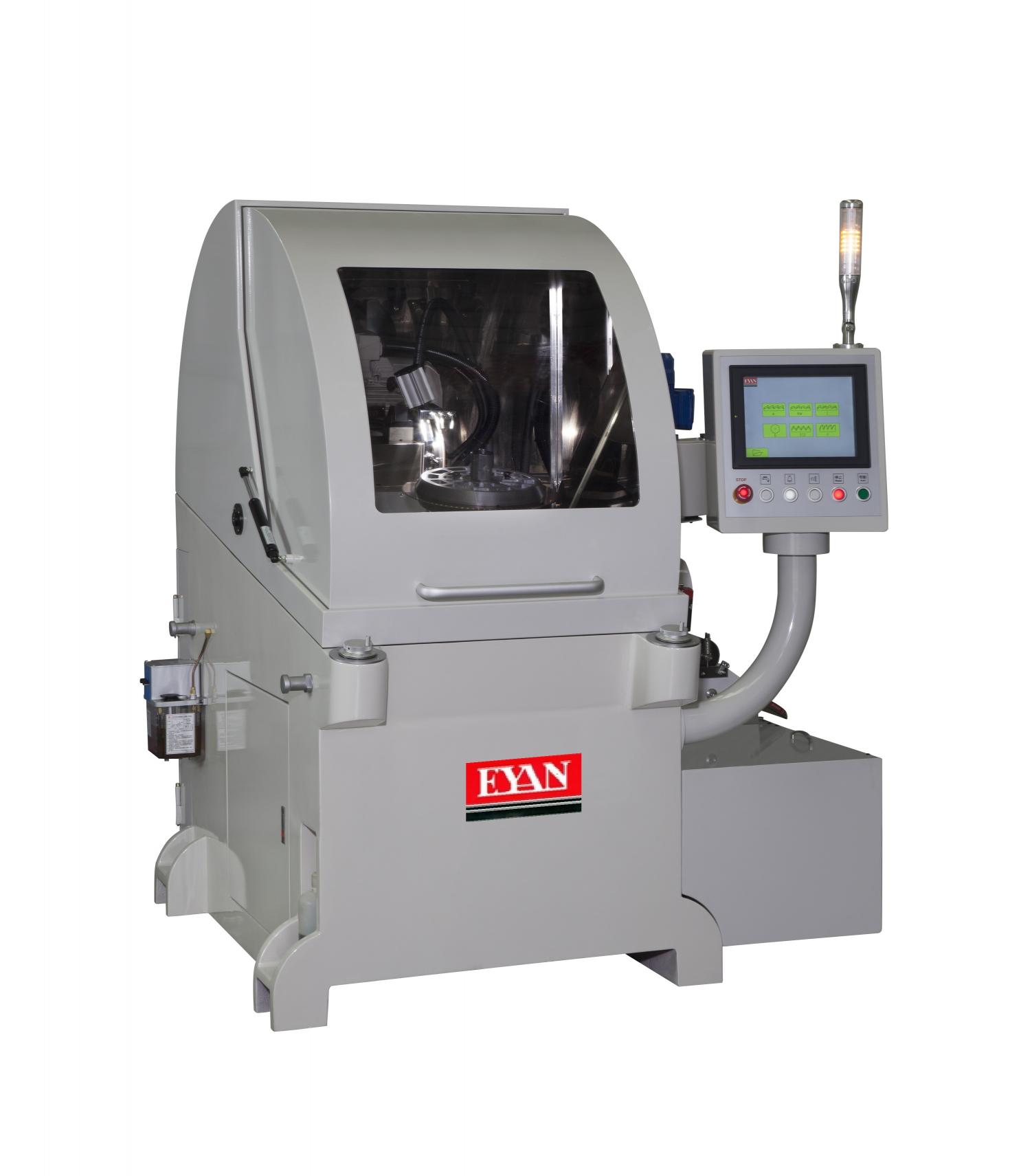

EMA-500 3A

EMA 3A series Circular Saw blade Sharpening Machines are CNC Circular saw blade sharpening machines with three axes servo control.

It has fully automatic operations for saw blade outer diameter, number of teeth, sharpening amounts, cutting angles and back clearance angles.

Humanized two hand wheels make sharpen teeth easy to operate.

The full range of machines use cast iron base to strengthen the machine’s rigidity and reduce resonance.

With quick saw blade locking nut, it is easy and convenient to lock saw blade with one wrench.

The fully-enclosed splash guard is standard equipment which uses SU304 stainless steel for inner cover. The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment.

The new designed and special window provides widen vision and it is easy to see the grinded object.

Oil mist filter, iron filings filter and cooling high-pressure pump are the standard accessories.

The newly designed touch screen with patent graphical display makes no language barriers. Any language speakers can learn quickly.

Adding F & ECO type of teeth for friction saw blade grinding.

EMA models are the best choice for your working requirement.


Specification

Saw blade Diameter

Ø95-Ø500 mm
(Optional Ø35-Ø120 mm)


Chamfering Range  --
Number of Teeth 10-998 Teeth
Sawblade Thickness Max.8mm
Cutting Angle 0° ~ 30°
Grinding Speed 1-60 Teeth / Min
Wheel Diameter Ø200mm
Wheel Bore Ø32mm
Wheel Thickness Max. 8 mm
Wheel Motor 4.0kw
Wheel Speed 2500-6000 rpm
X-axis Moto AC Servomotor
Z-axis Motor AC Servomotor
B-axis Motor AC Servomotor
Y-axis Motor  --
Coolant pump Motor 1.6 kw
Oil Mist Recycle Device 0.55 kw
Magnetic Filler 25w
Power Require 9kw
Net Weight 870 kg
Packing Gross Weight 1264kg
Packing Size 188x173x206 cm





STANDARD ACCESSORIES OPTIONAL ACCESSORIES
Sawblade Thickness Adjusbng seat Ø90 mm. Sawblade Thickness Adjusting seat Ø35mm.
Sawblade Clamp Ø150 mm. Sawbtede Thickness Adjusting seat Ø65 mm.
Sawblade Clamp Ø200 mm. Sawblade Clamp Ø35 mm.
Sawblade Clamp Ø250mm. Sawblade Clamp Ø65mm
Sawblade Clamp Ø300mm Sawblade Clamp Ø90mm.
Sawblade Clamp Ø350mm Sawblade Clamp Ø120mm.
Sawblade Clamp Ø400 mm. Diamond Dressing Bar
Tool Box Grinding Wheel Dresser
  Automatic Voltagae Stabilizer
Diamond Dressing Bar Cutting Oil
Grinding Wheel Dresser Lubricating Oil
CBN Grinding Wheel Ø200 x 32 x 1.3T Thickness Guage
CBN Grinding Wheel Ø200 x 32 x 1.75T
