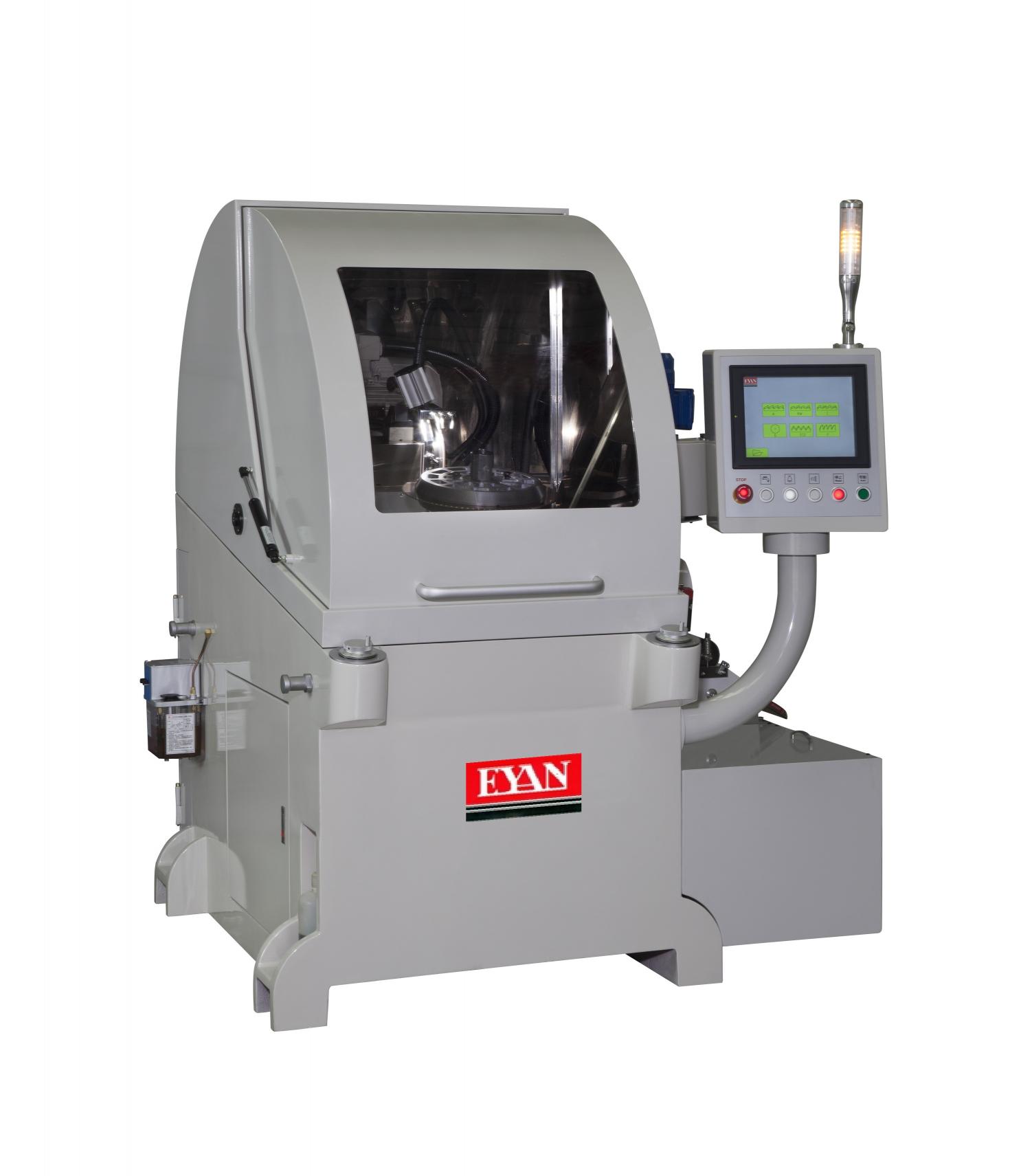

EMA 4A series Circular Saw blade Sharpening Machines are CNC Circular sawblade sharpening machines with four axes servo control.
Fully automatic operations for sawblade outer diameter, number of teeth, sharpening amounts, cutting angles, back clearance angles, and up-down chamfer.
Humanized two hand wheels make sharpen teeth easy to operate.
The full range of machines use cast iron base to strengthen the machine’s rigidity and reduce resonance.
With quick saw blade locking nut, it is easy and convenient to lock saw blade with one wrench.
The fully-enclosed splash guard is standard equipment which uses SU304 stainless steel for inner cover. The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment.
The new designed and special window provides widen vision and it is easy to see the grinded object.
The newly designed touch screen with patent graphical display makes no language barriers. Any language speakers can learn quickly.
Adding F & ECO type of teeth for friction saw blade grinding.
EMA models are the best choice for your working requirement.
| Saw blade Diameter |
Ø95-Ø500 mm (Optional Ø45-Ø120 mm) |
| Chamfering Range | Ø155 - Ø500 mm |
| Number of Teeth | 10-998 Teeth |
| Sawblade Thickness | Max.8mm |
| Cutting Angle | 0° ~ 30° |
| Grinding Speed | 1-60 Teeth / Min |
| Wheel Diameter | Ø200mm |
| Wheel Bore | Ø32mm |
| Wheel Thickness | Max. 8 mm |
| Wheel Motor | 4.0kw |
| Wheel Speed | 2500-6000 rpm |
| X-axis Moto | AC Servomotor |
| Z-axis Motor | AC Servomotor |
| B-axis Motor | AC Servomotor |
| Y-axis Motor | AC Servomotor |
| Coolant pump Motor | 1.6 kw |
| Oil Mist Recycle Device | 0.55 kw |
| Magnetic Filler | 25w |
| Power Require | 10 kw |
| Net Weight | 954 kg |
| Packing Gross Weight | 1342 kg |
| Packing Size | 188 x 173 x 206 cm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Sawblade Thickness Adjusbng seat Ø90 mm. | Sawblade Thickness Adjusting seat Ø35mm. |
| Sawblade Clamp Ø150 mm. | Sawbtede Thickness Adjusting seat Ø65 mm. |
| Sawblade Clamp Ø200 mm. | Sawblade Clamp Ø35 mm. |
| Sawblade Clamp Ø250mm. | Sawblade Clamp Ø65mm |
| Sawblade Clamp Ø300mm | Sawblade Clamp Ø90mm. |
| Sawblade Clamp Ø350mm | Sawblade Clamp Ø120mm. |
| Sawblade Clamp Ø400 mm. | Diamond Dressing Bar |
| Tool Box | Grinding Wheel Dresser |
| Diamond Dressing Bar | Automatic Voltagae Stabilizer |
| Grinding Wheel Dresser | Cutting Oil |
| CBN Grinding Wheel Ø200 x 32 x 1.3T | Lubricating Oil |
| CBN Grinding Wheel Ø200 x 32 x 1.75T | Thickness Guage |
All specifications, dimensions and design characteristics shown In this catalogue are subject to change without prior notice.
