*Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.

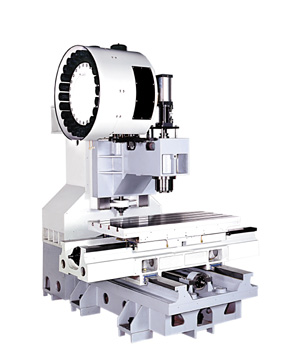

*Inverted-Y Column to extend support distance.
SPECIFICATION
Model |
- |
Unit |

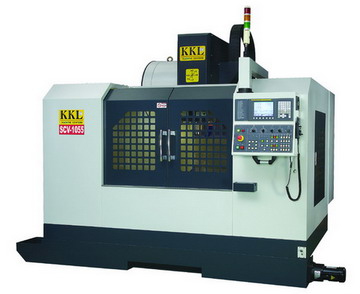

SCV-1055 |
Travel |
X-axis |
mm (inch) |
1,050 |
|
Y-axis |
mm (inch) |
550/ (600) |
|
Z-axis |
mm (inch) |
550/ (600) |
|
Spindle nose to table |
mm (inch) |
120-670 |
|
Spindle center to column slideway |
mm (inch) |
610 |
Span |
X-axis /width |
mm (inch) |
415 |
|
Y-axis /width |
mm (inch) |
790 |
|
Z-axis /width |
mm (inch) |
540 |
Table |
Size |
mm (inch) |
1,200x550 |
|
T-slot (width x no. x distance) |
mm (inch) |
18x4x125 |
|
Max load |
kg |
600 |
Spindle |
speed |
rpm |
60-8,000 |
|
Transmission |
type |
Belt |
|
Motor |
kw |
7.5/11 |
|
X/Y/Z Axis servo motor |
kw |
2/2/2 |
|
Spindle nose taper |
type |
BT40 |
|
Bearing diameter at front spindle |
mm (inch) |
70 |
Speed |
Rapid feed rate of X/Y/Z |
m/min |
15/15/16 |
|
Cutting feed rate |
m/min |
1-10 |
Automatic tool changer |
ATC type |
- |
Armless/ (Arm) |
|
Tool capacity |
tools |
20/ (24) |
|
Max. tool weight |
kg |
7 |
|
Max. tool length |
mm (inch) |
250 |
|
Max. tool diameter |
mm (inch) |
75 |
|
Tool to Tool |
sec. |
1.8 |
Miscellaneous |
Air source |
kg/cm2 |
6 |
|
Occupied space (L)x(W)x(H) |
mm (inch) |
2,800x2,200x2,500 |
|
Machine weight |
kg |
6,100 |
|
Slideway type |
- |
Boxway on X/Y/Z |
Note:Design and specification are subject to change prior notice.
Symbol ( ) represents Optional Accessories.
STANDARD ACCESSORIES: *Armless (Carousel) type *Full-chip enclosures *Spindle air blast system *Heat exchange in control box *Spindle BT40-8,000rpm *Working light *Coolant pump *Operator indication lamp *Spindle arbor cleaning *Tool box |
OPTIONAL ACCESSORIES: *Spindle automatic oiling device *Arm type tool changer * 4th axis NC rotary table *Chip conveyor *Spindle speed 10,000/12,000rpm *Direct drive spindle 10,000/12,000/15,000rpm *Built-in 16,000/24,000/30,000 rpm *Optical scale *Transformer *PL waterproof fluorescent worklight *BED shower |
