Products

High Speed KT & KV Series

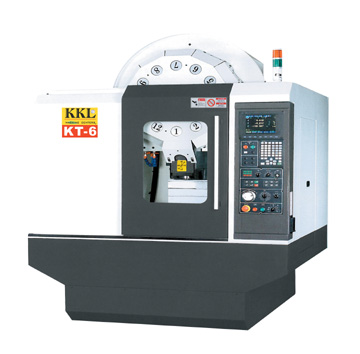

CNC Vertical Machining Center KT-6
KT-6

*Adopting German Standard VDI 3441.

*Installing Euroscale Machine Frame.

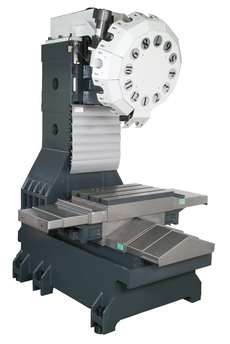

*Inverted-Y Column to extend support distance.

Specification

SPECIFICATIONS

Model

-

Unit

KT-6

Travel

Controller

type

Mitsubishi 70M-2A



X axis

mm (inch)

600



Y axis

mm (inch)

400



Z axis

mm (inch)

300



Spindle nose to table

mm (inch)

200-500



Spindle center to column

mm (inch)

440



Rapid traverse X/Y/Z

m/min

48/48/48

Table

                     Size of T-slot                      (Width x Distance x No.)



mm x mm x no.

                                         18 x 125 x 3



Max loading capacity

kg

300



Size

mm (inch)

700 x 420

Spindle

Taper

type

MAS-BT30



Speed

rpm

Belt 10,000



No. of tool positions (OPT.)

BT#

BT30

Tool

No. of Tools/Automatic Tool Changer

T to T

         type           sec.

Tapping

2



No. of Tools/Automatic Tool Changer

T to T

         type           sec.

               12/14                 0.8

Motor

Spindle motor

kw

3.7



X servo motor

kw

HF 154T/1.5 (ABS)



Y servo motor

kw

HF 154T/1.5 (ABS)



Z servo motor

kw

HF154BT/1.5 (ABS)

Miscellaneous

Machine Height

mm (inch)

2,090



Machine Area (Length) x (Width)

mm (inch)

1,950 x 2,130



Machine Weight

kg

2,600



Positioning

mm (inch)

VDI 3441



Repeatability

mm (inch)

VDI 3441



           Note:Design and specification are subject to change prior notice.







STANDARD ACCESSORIES:

*Heat exchanger

*36W work lamp

*Full splash guard

*Screw type chip conveyor

*3 color light

*Hiwin linear guides

*Spindle oil cooler unit

*Auto power off

*Air blast device

*Rigid tapping



OPTIONAL ACCESSORIES:

*Heidenhain Controller

*Siemens Controller

*Fanuc Controller

*Selca Controller

*Fagor Controller

*Chip Clean & Spray Gun

*Spindle BT30-12,000/15,000rpm

BT40-12,000/15,000rpm

*4/5th Axis Indexing Table

*Oil Water Separator

*Absolute Linear Scale

*Hiwin linear guides

*Spindle taper-BT/CAT/DIN/HSK
